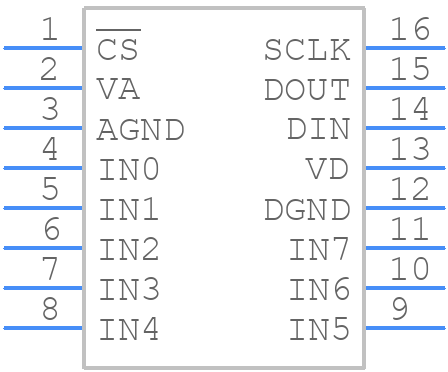

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC128S022CIMT by Texas Instruments
Results Overview of ADC128S022CIMT by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC128S022CIMT Information
ADC128S022CIMT by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Part Details for ADC128S022CIMT
ADC128S022CIMT CAD Models
ADC128S022CIMT Part Data Attributes
|
|
ADC128S022CIMT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC128S022CIMT
Texas Instruments
8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16, TSSOP-16
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 4.0625 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e0 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.2 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
Alternate Parts for ADC128S022CIMT
This table gives cross-reference parts and alternative options found for ADC128S022CIMT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC128S022CIMT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC128S022CIMT/NOPB | Texas Instruments | $2.7144 | 8-Channel, 50 ksps to 200 ksps, 12-Bit A/D Converter 16-TSSOP -40 to 105 | ADC128S022CIMT vs ADC128S022CIMT/NOPB |
| ADC128S022CIMTX/NOPB | National Semiconductor Corporation | Check for Price | A/D Converter, 12-Bit, 8 Channel, CMOS, PDSO16 | ADC128S022CIMT vs ADC128S022CIMTX/NOPB |
| ADC128S022CIMT | National Semiconductor Corporation | Check for Price | IC 8-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16, TSSOP-16, Analog to Digital Converter | ADC128S022CIMT vs ADC128S022CIMT |
ADC128S022CIMT Frequently Asked Questions (FAQ)
-
The recommended input impedance is 1 kΩ to 10 kΩ to ensure proper operation and minimize signal attenuation.
-
The ADC128S022CIMT requires an external clock signal, which can be provided through the CLKIN pin. The recommended clock frequency is between 1 MHz and 50 MHz.
-
The REFBUF pin is an output pin that provides a buffered reference voltage (VREF) for external circuitry. It can be used to provide a stable reference voltage for other components in the system.
-
The ADC128S022CIMT can operate in either single-ended or differential mode, which is configured through the MODE pin. A logic high on the MODE pin selects single-ended mode, while a logic low selects differential mode.
-
The maximum throughput of the ADC128S022CIMT is 500 kSPS. To optimize throughput, ensure that the clock frequency is set to the maximum recommended value (50 MHz), and use the fastest available conversion mode (single-ended mode).
