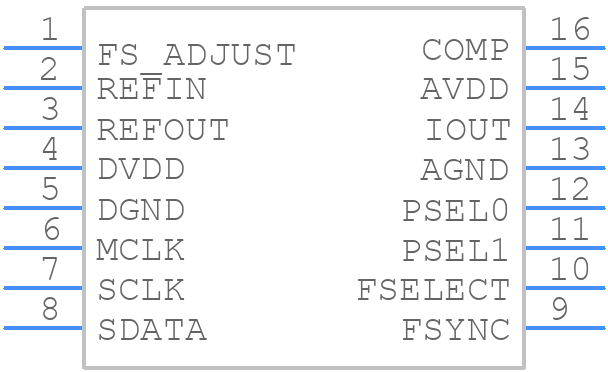

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9832BRUZ-REEL by Analog Devices Inc
Results Overview of AD9832BRUZ-REEL by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AD9832BRUZ-REEL Information
AD9832BRUZ-REEL by Analog Devices Inc is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer |
Price & Stock for AD9832BRUZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-AD9832BRUZ-REELCT-ND
|
DigiKey | IC DDS 25MHZ 10BIT 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$10.6250 / $20.2400 | Buy Now |
|
DISTI #
584-AD9832BRUZ-R
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 10-BIT D/A CONVERTER ON A SINGL CHIP IC. RoHS: Compliant | 0 |
|
$10.6200 | Order Now |
|
|
Analog Devices Inc | 10-BIT D/A CONVERTER ON A SING Min Qty: 2500 Package Multiple: 2500 | 5000 |
|
$7.8900 / $18.8700 | Buy Now |
|
DISTI #
69729850
|
Verical | Direct Digital Synthesizer 25MHz 1-DAC 10bit Serial 16-Pin TSSOP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 2500 |
|
$10.6918 | Buy Now |
|
DISTI #
AD9832BRUZ-REEL
|
Richardson RFPD | SYNTHESIZER RoHS: Compliant Min Qty: 2500 | 0 |
|
$11.1200 | Buy Now |
|
|
Cytech Systems Limited | IC DDS 25MHZ 10BIT 16TSSOP | 7500 |
|
RFQ | |
|
|
Vyrian | Telecommunications | 3526 |
|
RFQ |
Part Details for AD9832BRUZ-REEL
AD9832BRUZ-REEL CAD Models
AD9832BRUZ-REEL Part Data Attributes
|
|
AD9832BRUZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9832BRUZ-REEL
Analog Devices Inc
25 MHz Direct Digital Synthesizer Waveform Generator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 5 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for AD9832BRUZ-REEL
This table gives cross-reference parts and alternative options found for AD9832BRUZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD9832BRUZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD9832BRU-REEL7 | Analog Devices Inc | Check for Price | 25 MHz Direct Digital Synthesizer Waveform Generator | AD9832BRUZ-REEL vs AD9832BRU-REEL7 |
| AD9832BRU | Analog Devices Inc | Check for Price | 25 MHz Direct Digital Synthesizer Waveform Generator | AD9832BRUZ-REEL vs AD9832BRU |
| PCD3316T-T | NXP Semiconductors | Check for Price | IC SPECIALTY TELECOM CIRCUIT, PDSO16, PLASTIC, SOT-162, SO-16, Telecom IC:Other | AD9832BRUZ-REEL vs PCD3316T-T |
| PCD3316TD-T | NXP Semiconductors | Check for Price | IC SPECIALTY TELECOM CIRCUIT, PDSO16, Telecom IC:Other | AD9832BRUZ-REEL vs PCD3316TD-T |
| PCD3316T | NXP Semiconductors | Check for Price | IC SPECIALTY TELECOM CIRCUIT, PDSO16, 7.50 MM, PLASTIC, SOT-162-1, SO-16, Telecom IC:Other | AD9832BRUZ-REEL vs PCD3316T |
AD9832BRUZ-REEL Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly.
-
To ensure a stable output frequency, make sure that the clock input is stable and within the specified frequency range (25 MHz to 50 MHz). Also, ensure that the device is properly bypassed with capacitors and that the power supply is clean and stable.
-
The maximum output amplitude of the AD9832 is approximately 1.4 Vpp (peak-to-peak) when loaded with a 200 Ω resistor.
-
No, the AD9832 is a sinusoidal waveform generator and is not designed to generate square wave outputs. However, you can use an external circuit to convert the sinusoidal output to a square wave if needed.
-
The AD9832 can be programmed using a 3-wire serial interface (SCLK, SDATA, and FSYNC). You need to send a 32-bit frequency control word to the device, which consists of a 14-bit frequency tuning word and an 18-bit phase tuning word. Refer to the datasheet for the exact programming sequence and format.
