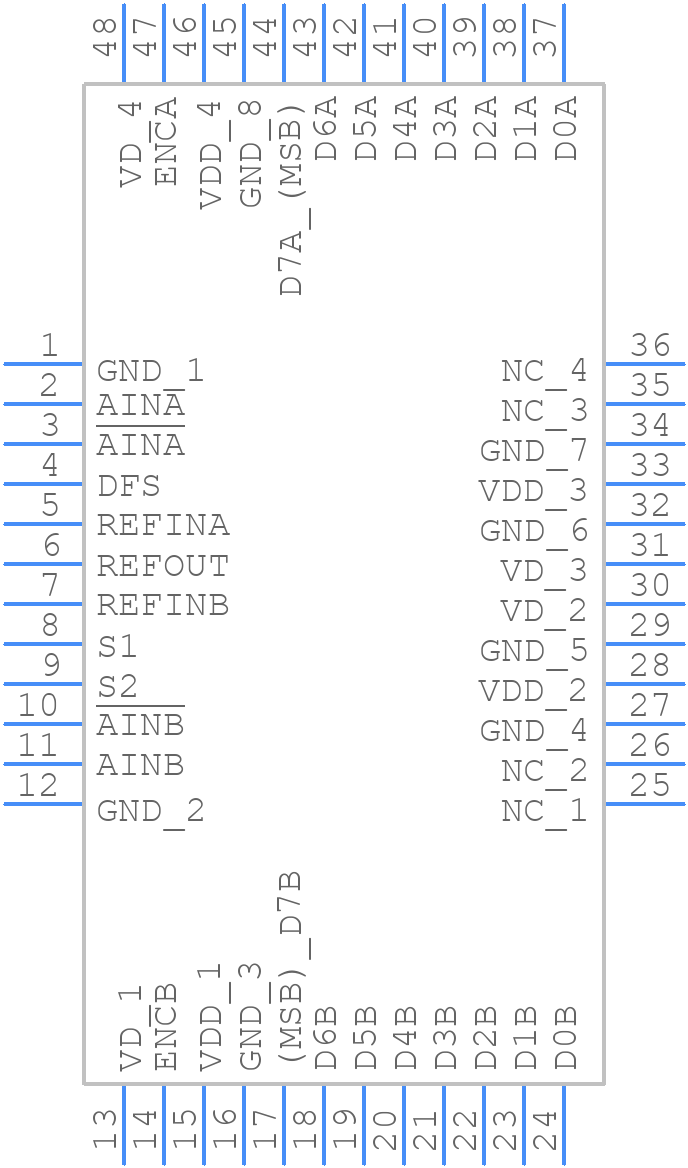

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD9288BST-40 by Analog Devices Inc
Results Overview of AD9288BST-40 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD9288BST-40 Information
AD9288BST-40 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD9288BST-40
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 222 |
|
RFQ | ||
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Quest Components | IC,A/D CONVERTER,DUAL,8-BIT,CMOS,QFP,48PIN | 11 |
|
$16.0340 / $18.0383 | Buy Now |
|
|
Quest Components | IC,A/D CONVERTER,DUAL,8-BIT,CMOS,QFP,48PIN | 4 |
|
$10.8000 | Buy Now |
|
|
Vyrian | Peripheral ICs | 1603 |
|
RFQ |
Part Details for AD9288BST-40
AD9288BST-40 CAD Models
AD9288BST-40 Part Data Attributes
|
|
AD9288BST-40
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD9288BST-40
Analog Devices Inc
IC DUAL 1-CH 8-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, PQFP48, 7 X 7 MM, PLASTIC, MO-026-BBC, LQFP-48, Analog to Digital Converter
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | 7 X 7 MM, PLASTIC, MO-026-BBC, LQFP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 0.512 V | |
| Analog Input Voltage-Min | -0.512 V | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e0 | |
| Length | 7 mm | |
| Linearity Error-Max (EL) | 0.4883% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 2 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, 8 BITS | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 40 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm |
