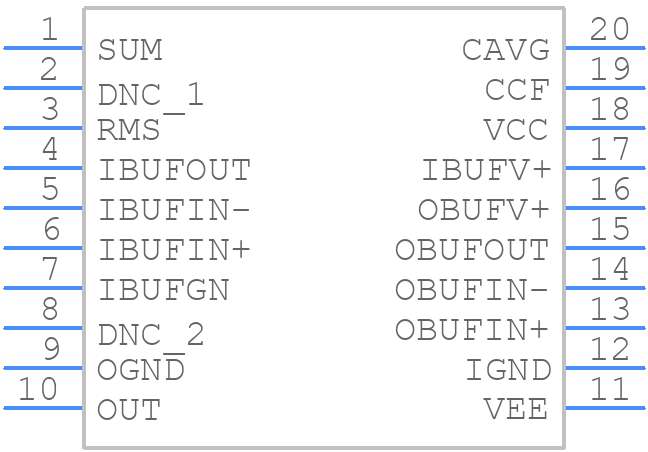

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8436BRQZ by Analog Devices Inc
Results Overview of AD8436BRQZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8436BRQZ Information
AD8436BRQZ by Analog Devices Inc is an Analog Special Function Converter.
Analog Special Function Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD8436BRQZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7518
|
Newark | Rms-Dc Converter, 0.25%, 1Mhz, 325Ua, Accuracy:0.25%, Bandwidth:1Mhz, Operating Temperature Min:-40°C, Operating Temperature Max:125°C, Digital Ic Case:Qsop, No. Of Pins:20Pins, Supply Voltage Range:4.8V To 36V, ± 2.4V To ± 18V Rohs Compliant: Yes |Analog Devices AD8436BRQZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 40 |
|
$14.4600 / $23.9300 | Buy Now |
|
DISTI #
505-AD8436BRQZ-ND
|
DigiKey | IC RMS TO DC CONVERTER 20QSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
75 In Stock |
|
$14.4625 / $23.9300 | Buy Now |
|
DISTI #
584-AD8436BRQZ
|
Mouser Electronics | Power Management Specialized - PMIC Low PowerTrue RMS-to-DC Converter RoHS: Compliant | 202 |
|
$14.9100 / $24.0100 | Buy Now |
|
|
Analog Devices Inc | Low PowerTrue RMS-to-DC Conver Package Multiple: 56 | 1919 |
|
$10.5400 / $23.9300 | Buy Now |
|
DISTI #
26616975
|
Verical | RMS to DC Converter 365uA 1000kHz 20-Pin QSOP Tube RoHS: Compliant Min Qty: 56 Package Multiple: 56 | Americas - 1904 |
|
$14.3105 | Buy Now |
|
|
Rochester Electronics | AD8436 - RMS to DC Converter, Bipolar, PDSO20 RoHS: Compliant Status: Active Min Qty: 1 | 1 |
|
$12.1800 / $15.2200 | Buy Now |
|
DISTI #
AD8436BRQZ
|
Richardson RFPD | AC TO DC CONVERTER RoHS: Compliant Min Qty: 56 | 0 |
|
$15.1300 / $16.1700 | Buy Now |
|
|
LCSC | QSOP-20-150mil RMS to DC Converters ROHS | 8 |
|
$24.6340 / $25.8845 | Buy Now |
|
|
Win Source Electronics | IC RMS TO DC CONVERTER 20QSOP / RMS to DC Converter 20-QSOP | 550 |
|
$27.1105 / $40.6657 | Buy Now |
Part Details for AD8436BRQZ
AD8436BRQZ CAD Models
AD8436BRQZ Part Data Attributes
|
|
AD8436BRQZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8436BRQZ
Analog Devices Inc
Low Cost, Low Power, True RMS-to-DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 20 | |
| Manufacturer Package Code | RQ-20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Converter Type | RMS TO DC CONVERTER | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 8.66 mm | |
| Linearity Error-Max (EL) | 0.006% | |
| Moisture Sensitivity Level | 1 | |
| Negative Supply Voltage-Nom | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Frequency-Max | 0.001 MHz | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Positive Input Voltage-Max | 36 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 0.365 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.64 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.91 mm |
Alternate Parts for AD8436BRQZ
This table gives cross-reference parts and alternative options found for AD8436BRQZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8436BRQZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8436ARQZ | Analog Devices Inc | $10.4316 | Low Cost, Low Power, True RMS-to-DC Converter | AD8436BRQZ vs AD8436ARQZ |
| AD8436ARQZ-RL | Analog Devices Inc | Check for Price | Low Cost, Low Power, True RMS-to-DC Converter | AD8436BRQZ vs AD8436ARQZ-RL |
| AD8436ACPZ-RL | Analog Devices Inc | Check for Price | Low Cost, Low Power, True RMS-to-DC Converter | AD8436BRQZ vs AD8436ACPZ-RL |
| AD8436ARQZ-R7 | Analog Devices Inc | Check for Price | Low Cost, Low Power, True RMS-to-DC Converter | AD8436BRQZ vs AD8436ARQZ-R7 |
| AD8436JCPZ-RL | Analog Devices Inc | Check for Price | Low Cost, Low Power, True RMS-to-DC Converter | AD8436BRQZ vs AD8436JCPZ-RL |
AD8436BRQZ Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8436BRQZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the power supply with a 10uF capacitor.
-
The AD8436BRQZ is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using a temperature sensor to monitor the device's temperature.
-
The AD8436BRQZ is designed to operate with input signal amplitudes up to 5Vpp and frequencies up to 100 kHz. However, the optimal input signal amplitude and frequency range may vary depending on the specific application. It's recommended to consult the datasheet and application notes for more information.
-
To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, consider using a low-pass filter or a shielded cable to reduce electromagnetic radiation.
-
The recommended power-up sequence for the AD8436BRQZ is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the device is properly biased and configured before the input signal is applied.
