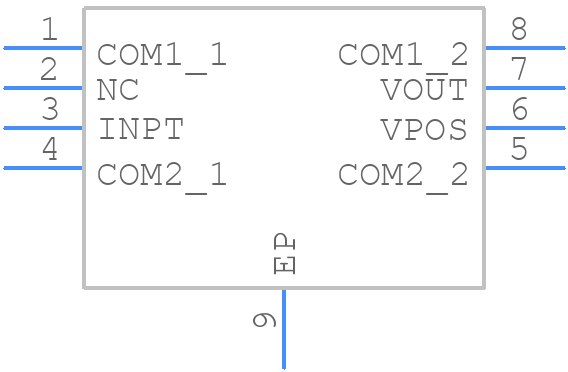

Part Symbol
-
Footprint
-

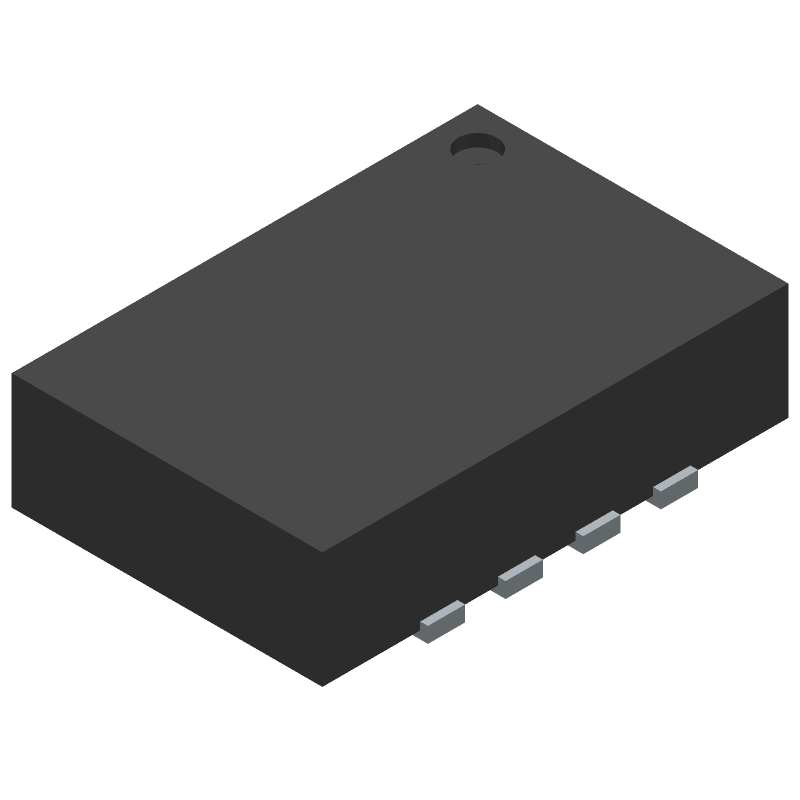

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8354ACPZ-REEL7 by Analog Devices Inc
Results Overview of AD8354ACPZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8354ACPZ-REEL7 Information
AD8354ACPZ-REEL7 by Analog Devices Inc is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for AD8354ACPZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK4595
|
Newark | Rf Amplifier, Lfcsp-Ep-8, -40 To 85Deg C Rohs Compliant: Yes |Analog Devices AD8354ACPZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1567 |
|
$0.9960 / $1.3400 | Buy Now |
|
DISTI #
505-AD8354ACPZ-REEL7CT-ND
|
DigiKey | IC AMP CELL 1MHZ-2.7GHZ 8LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
10268 In Stock |
|
$0.8870 / $1.8100 | Buy Now |
|
DISTI #
584-AD8354ACPZ-R7
|
Mouser Electronics | RF Amplifier CSP 100-2700 MHz RF Gain Block RoHS: Compliant | 4109 |
|
$0.8530 / $1.3300 | Buy Now |
|
DISTI #
V72:2272_06214551
|
Arrow Electronics | RF Amp Single Linear Amp 2.7GHz 5.5V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2136 Container: Cut Strips | Americas - 508 |
|
$0.8592 / $0.8910 | Buy Now |
|
|
Analog Devices Inc | CSP 100-2700 MHz RF Gain Block Min Qty: 3000 Package Multiple: 3000 | 12000 |
|
$1.0666 / $1.8100 | Buy Now |
|
DISTI #
26108721
|
Verical | RF Amp Single Linear Amp 2.7GHz 5.5V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$0.8287 | Buy Now |
|
DISTI #
60842197
|
Verical | RF Amp Single Linear Amp 2.7GHz 5.5V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2136 | Americas - 508 |
|
$0.8592 / $0.9322 | Buy Now |
|
|
Rochester Electronics | Wide Band Low Power Amplifier, 1MHz Min, 2700MHz Max, BIPolar RoHS: Compliant Status: Active Min Qty: 1 | 6492 |
|
$0.7068 / $1.1400 | Buy Now |
|
DISTI #
AD8354ACPZ-R7
|
Richardson RFPD | GAIN BLOCK RoHS: Compliant Min Qty: 3000 | 0 |
|
$0.8800 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 1639 |
|
RFQ |
Part Details for AD8354ACPZ-REEL7
AD8354ACPZ-REEL7 CAD Models
AD8354ACPZ-REEL7 Part Data Attributes
|
|
AD8354ACPZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8354ACPZ-REEL7
Analog Devices Inc
1 MHz TO 2.7 GHz RF Gain Block
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 3 X 2 MM, ROHS COMPLIANT, LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Gain | 17.3 dB | |
| Input Power-Max (CW) | 10 dBm | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 2700 MHz | |
| Operating Frequency-Min | 1 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOLCC8,.08,20 | |
| Power Supplies | 3/5 V | |
| RF/Microwave Device Type | WIDE BAND LOW POWER | |
| Supply Current-Max | 34 mA | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) |
AD8354ACPZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8354 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the analog power supply. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 10uF and 100nF capacitors, respectively. Also, ensure the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
-
The AD8354 can handle input voltages up to ±5V, but it's recommended to limit the input voltage to ±3V to ensure optimal performance and prevent damage to the device.
-
To reduce noise and EMI, use a low-pass filter at the input, keep the input and output traces away from digital signals, and use a shielded enclosure. Also, consider using a common-mode choke or a ferrite bead to filter out high-frequency noise.
-
The AD8354 is specified to operate over a temperature range of -40°C to +125°C, but optimal performance is achieved between 0°C and 70°C. Operating the device outside this range may affect its performance and reliability.
