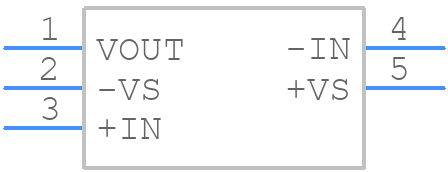

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8061ARTZ-REEL by Analog Devices Inc
Results Overview of AD8061ARTZ-REEL by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8061ARTZ-REEL Information
AD8061ARTZ-REEL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8061ARTZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Win Source Electronics | Low Cost, 300 MHz Rail-to-Rail Amplifiers | IC OPAMP VFB 1 CIRCUIT SOT23-5 | 11070 |
|
$0.9231 / $1.1923 | Buy Now |
Part Details for AD8061ARTZ-REEL
AD8061ARTZ-REEL CAD Models
AD8061ARTZ-REEL Part Data Attributes
|
|
AD8061ARTZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8061ARTZ-REEL
Analog Devices Inc
Low Cost, 300 MHz Rail-to-Rail Amplifier (Single)
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | RJ-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 8.5 µA | |
| Bias Current-Max (IIB) @25C | 9 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 6000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Min | 95 V/us | |
| Slew Rate-Nom | 280 V/us | |
| Supply Current-Max | 9.5 mA | |
| Supply Voltage Limit-Max | 8 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Voltage Gain-Min | 1400 | |
| Wideband | YES | |
| Width | 1.6 mm |
Alternate Parts for AD8061ARTZ-REEL
This table gives cross-reference parts and alternative options found for AD8061ARTZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8061ARTZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8061ARTZ-REEL7 | Analog Devices Inc | $1.7266 | Low Cost, 300 MHz Rail-to-Rail Amplifier (Single) | AD8061ARTZ-REEL vs AD8061ARTZ-REEL7 |
| AD8061ART-REEL | Analog Devices Inc | Check for Price | IC OP-AMP, 6000 uV OFFSET-MAX, PDSO5, MO-178AA, SOT-23, 5 PIN, Operational Amplifier | AD8061ARTZ-REEL vs AD8061ART-REEL |
| AD8061ARTZ-R2 | Analog Devices Inc | Check for Price | Low Cost, 300 MHz Rail-to-Rail Amplifier (Single) | AD8061ARTZ-REEL vs AD8061ARTZ-R2 |
| AD8061ART-R2 | Analog Devices Inc | Check for Price | Low Cost, 300 MHz Rail-to-Rail Amplifier (Single) | AD8061ARTZ-REEL vs AD8061ART-R2 |
| AD8061ARTZ | Analog Devices Inc | Check for Price | OP-AMP, 6000uV OFFSET-MAX, PDSO5 | AD8061ARTZ-REEL vs AD8061ARTZ |
| AD8061ARTZ-R2 | Rochester Electronics LLC | Check for Price | OP-AMP, 6000 uV OFFSET-MAX, PDSO5, ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN | AD8061ARTZ-REEL vs AD8061ARTZ-R2 |
| AD8061ARTZ-REEL7 | Rochester Electronics LLC | Check for Price | OP-AMP, 6000 uV OFFSET-MAX, PDSO5, ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN | AD8061ARTZ-REEL vs AD8061ARTZ-REEL7 |
| AD8061ART-REEL | Rochester Electronics LLC | Check for Price | OP-AMP, 6000 uV OFFSET-MAX, PDSO5, MO-178AA, SOT-23, 5 PIN | AD8061ARTZ-REEL vs AD8061ART-REEL |
AD8061ARTZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8061 involves keeping the input and output traces short and away from each other, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
The gain resistors for the AD8061 should be chosen based on the desired gain and bandwidth. A good starting point is to use 1 kΩ to 10 kΩ resistors for gains up to 10, and 100 Ω to 1 kΩ resistors for gains above 10. The resistors should also be matched to within 0.1% to ensure good common-mode rejection.
-
The maximum power dissipation for the AD8061 is 670 mW, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package. The actual power dissipation will depend on the operating conditions and the PCB layout.
-
Yes, the AD8061 can be used as a single-supply op-amp, but it requires a voltage divider or a voltage reference to set the input common-mode voltage. The input common-mode range is typically limited to 1.5 V to 3.5 V below the positive supply rail.
-
To reduce noise and oscillations in the AD8061 circuit, use a low-noise power supply, decouple the power supply pins with capacitors, and add a small capacitor (e.g., 10 pF) in parallel with the feedback resistor. Additionally, use a good PCB layout and avoid long traces and loops.
