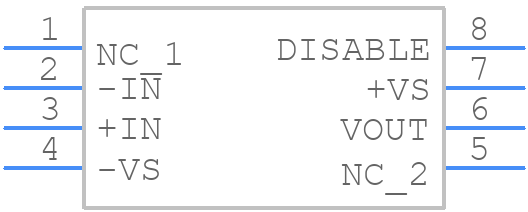

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8038ARZ-REEL by Analog Devices Inc
Results Overview of AD8038ARZ-REEL by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8038ARZ-REEL Information
AD8038ARZ-REEL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8038ARZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-AD8038ARZ-REELCT-ND
|
DigiKey | IC VOLTAGE FEEDBACK 1 CIRC 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.5000 / $4.5100 | Buy Now |
|
DISTI #
584-AD8038ARZ-R
|
Mouser Electronics | High Speed Operational Amplifiers SOIC, Single Low-Pwr Vltg-Fdbk Op Amp RoHS: Compliant | 0 |
|
$1.5600 / $4.5000 | Order Now |
|
|
Analog Devices Inc | SOIC, Single Low-Pwr Vltg-Fdbk Min Qty: 2500 Package Multiple: 2500 | 2500 |
|
$1.5000 / $4.4200 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 3000uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 4224 |
|
$1.2600 / $1.5800 | Buy Now |
Part Details for AD8038ARZ-REEL
AD8038ARZ-REEL CAD Models
AD8038ARZ-REEL Part Data Attributes
|
|
AD8038ARZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8038ARZ-REEL
Analog Devices Inc
Low Power, 350 MHz Voltage Feedback Amplifiers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.75 µA | |
| Bias Current-Max (IIB) @25C | 0.75 µA | |
| Common-mode Reject Ratio-Nom | 67 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 340 V/us | |
| Slew Rate-Nom | 425 V/us | |
| Supply Current-Max | 1.5 mA | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Wideband | YES | |
| Width | 3.9 mm |
Alternate Parts for AD8038ARZ-REEL
This table gives cross-reference parts and alternative options found for AD8038ARZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8038ARZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD8038ARZ-REEL7 | Analog Devices Inc | $1.9908 | Low Power, 350 MHz Voltage Feedback Amplifiers | AD8038ARZ-REEL vs AD8038ARZ-REEL7 |
| AD8038ARZ | Analog Devices Inc | $2.1378 | Low Power, 350 MHz Voltage Feedback Amplifiers | AD8038ARZ-REEL vs AD8038ARZ |
| AD8038ARZ-REEL | Rochester Electronics LLC | Check for Price | OP-AMP, 3000 uV OFFSET-MAX, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | AD8038ARZ-REEL vs AD8038ARZ-REEL |
| AD8038AR-REEL | Analog Devices Inc | Check for Price | IC OP-AMP, 3000 uV OFFSET-MAX, PDSO8, MS-012AA, SOIC-8, Operational Amplifier | AD8038ARZ-REEL vs AD8038AR-REEL |
| AD8038AR | Analog Devices Inc | Check for Price | IC OP-AMP, 3000 uV OFFSET-MAX, PDSO8, MS-012AA, SOIC-8, Operational Amplifier | AD8038ARZ-REEL vs AD8038AR |
| AD8038ARZ-REEL7 | Rochester Electronics LLC | Check for Price | OP-AMP, 3000 uV OFFSET-MAX, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | AD8038ARZ-REEL vs AD8038ARZ-REEL7 |
