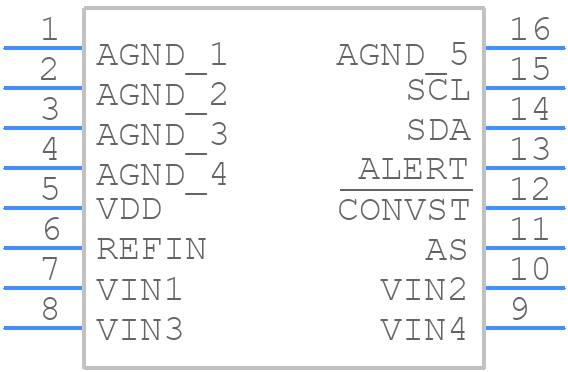

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7994BRUZ-0REEL by Analog Devices Inc
Results Overview of AD7994BRUZ-0REEL by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD7994BRUZ-0REEL Information
AD7994BRUZ-0REEL by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7994BRUZ-0REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7175
|
Newark | Adc, 12-Bit, 188Ksps, Tssop-16, Resolution (Bits):12Bit, Sampling Rate:188Ksps, Input Channel Type:Single Ended, Data Interface:2 Wire, I2C, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices AD7994BRUZ-0REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 855 |
|
$7.4800 / $12.9100 | Buy Now |
|
DISTI #
AD7994BRUZ-0REELCT-ND
|
DigiKey | IC ADC 12BIT SAR 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6208 In Stock |
|
$7.3000 / $14.1800 | Buy Now |
|
DISTI #
584-AD7994BRUZ-0R
|
Mouser Electronics | Analog to Digital Converters - ADC 4 Channel,12Bit ADC - I2C Interface I.C. RoHS: Compliant | 2363 |
|
$7.2900 / $13.3000 | Buy Now |
|
|
Analog Devices Inc | 4 Channel,12Bit ADC - I2C Inte Min Qty: 1 Package Multiple: 2500 | 6242 |
|
$5.3500 / $14.1800 | Buy Now |
|
DISTI #
27492965
|
Verical | 4-Channel Single ADC SAR 188ksps 12-bit Serial 16-Pin TSSOP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 2500 |
|
$7.2233 | Buy Now |
|
|
Quest Components | 1 |
|
$21.0000 / $22.5000 | Buy Now | |
|
DISTI #
AD7994BRUZ-0R
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 2500 | 0 |
|
$7.6400 | Buy Now |
Part Details for AD7994BRUZ-0REEL
AD7994BRUZ-0REEL CAD Models
AD7994BRUZ-0REEL Part Data Attributes
|
|
AD7994BRUZ-0REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7994BRUZ-0REEL
Analog Devices Inc
4 Channel, 12-Bit ADC with I<sup>2</sup>C Compatible Interface in 16-Lead TSSOP
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | LEAD FREE, MO-153-AB, TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.188 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for AD7994BRUZ-0REEL
This table gives cross-reference parts and alternative options found for AD7994BRUZ-0REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7994BRUZ-0REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD7992BRMZ-1 | Analog Devices Inc | $5.8806 | 2-Channel, 12-Bit ADC with I2C Compatible Interface in 10-Lead MSOP | AD7994BRUZ-0REEL vs AD7992BRMZ-1 |
| AD7994BRUZ-0 | Analog Devices Inc | $7.7720 | 4 Channel, 12-Bit ADC with I2C Compatible Interface in 16-Lead TSSOP | AD7994BRUZ-0REEL vs AD7994BRUZ-0 |
| AD7994BRU-0REEL | Analog Devices Inc | Check for Price | 4 Channel, 12-Bit ADC with I2C Compatible Interface in 16-Lead TSSOP | AD7994BRUZ-0REEL vs AD7994BRU-0REEL |
| AD7992BRMZ-1REEL | Analog Devices Inc | Check for Price | 2-Channel, 12-Bit ADC with I2C Compatible Interface in 10-Lead MSOP | AD7994BRUZ-0REEL vs AD7992BRMZ-1REEL |
| AD7992BRM-1 | Analog Devices Inc | Check for Price | IC 2-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO10, MO-187-BA, MSOP-10, Analog to Digital Converter | AD7994BRUZ-0REEL vs AD7992BRM-1 |
