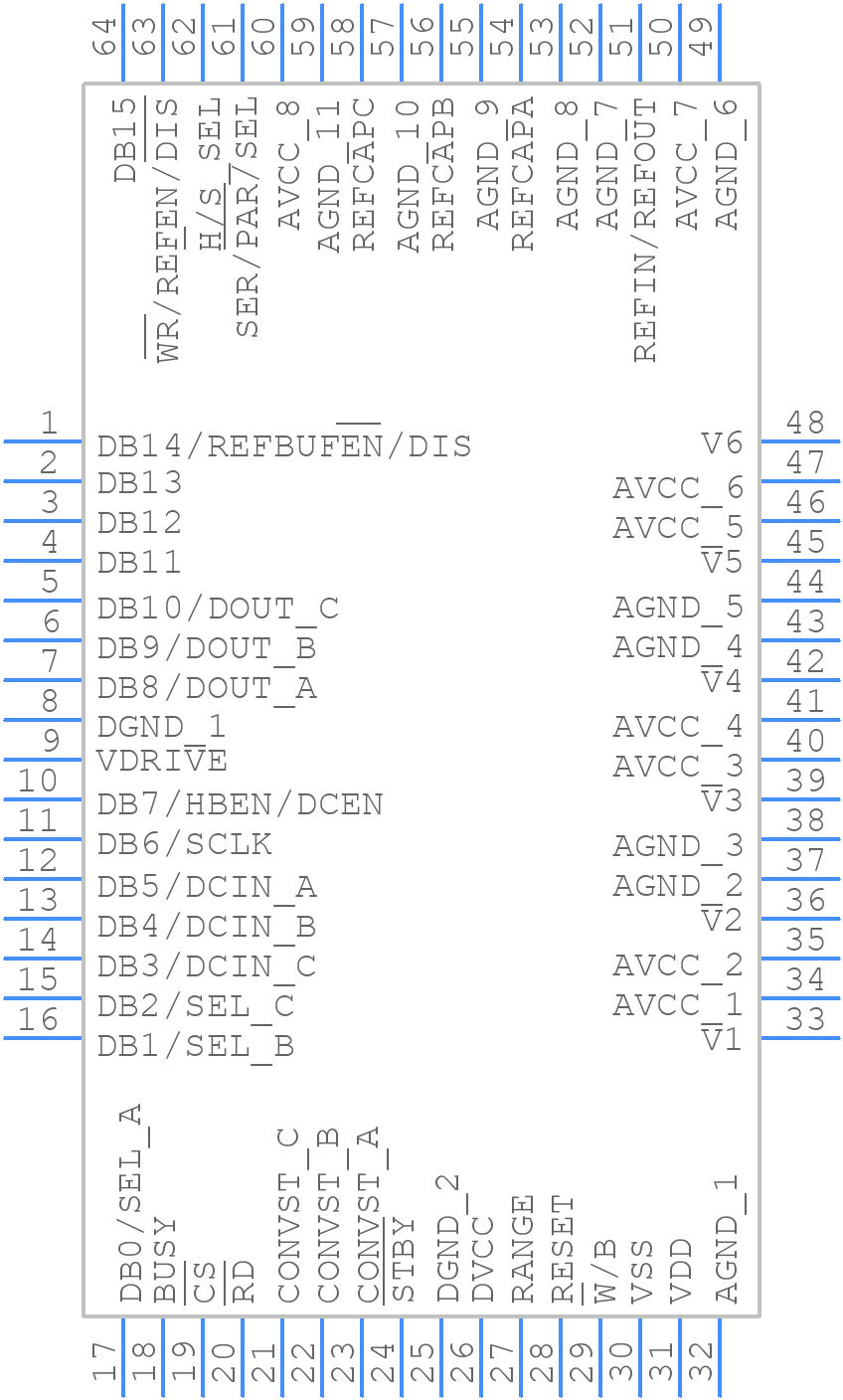

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD7656ABSTZ by Analog Devices Inc
Results Overview of AD7656ABSTZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Electronic Manufacturing
Telecommunications
Automotive
AD7656ABSTZ Information
AD7656ABSTZ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7656ABSTZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6923
|
Newark | Adc, 16Bit, 250Ksps, Lqfp-64, Resolution (Bits):16Bit, Sampling Rate:250Ksps, Input Channel Type:Single Ended, Data Interface:Microwire, Parallel, Qspi, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:4.75V Rohs Compliant: Yes |Analog Devices AD7656ABSTZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 52 |
|
$20.5900 / $30.5700 | Buy Now |
|
DISTI #
505-AD7656ABSTZ-ND
|
DigiKey | IC ADC 16BIT SAR 64LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
14 In Stock |
|
$19.8000 / $30.5700 | Buy Now |
|
DISTI #
584-AD7656ABSTZ
|
Mouser Electronics | Analog to Digital Converters - ADC 6Ch SimSamp Bipolar 16Bit SAR ADC RoHS: Compliant | 47 |
|
$19.8000 / $30.5700 | Buy Now |
|
|
Analog Devices Inc | 6Ch SimSamp Bipolar 16Bit SAR Package Multiple: 1 | 3 |
|
$14.6600 / $30.5700 | Buy Now |
|
|
Rochester Electronics | 250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC RoHS: Compliant Status: Active Min Qty: 1 | 8 |
|
$16.6700 / $20.8400 | Buy Now |
|
|
LCSC | 16Bit 4.75V5.25V 250kHz LQFP-64(10x10) Analog to Digital Converters (ADC) ROHS | 5 |
|
$33.5001 | Buy Now |
|
|
Vyrian | Converters | 60 |
|
RFQ | |
|
|
Win Source Electronics | IC ADC 16BIT SAR 64LQFP | 25 |
|
$19.2742 / $28.9113 | Buy Now |
Part Details for AD7656ABSTZ
AD7656ABSTZ CAD Models
AD7656ABSTZ Part Data Attributes
|
|
AD7656ABSTZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7656ABSTZ
Analog Devices Inc
250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | ROHS COMPLIANT, MS-026-BCD, LQFP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | ST-64-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 12 V | |
| Analog Input Voltage-Min | -10 V | |
| Conversion Time-Max | 3.1 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Linearity Error-Max (EL) | 0.0046% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 6 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL, PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 0.25 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
Alternate Parts for AD7656ABSTZ
This table gives cross-reference parts and alternative options found for AD7656ABSTZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7656ABSTZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD7656YSTZ-1 | Analog Devices Inc | $21.4348 | 250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC | AD7656ABSTZ vs AD7656YSTZ-1 |
| AD7656BSTZ-REEL | Analog Devices Inc | $32.8157 | 250 kSPS, 6-Channel, Simultaneous Sampling Bipolar 16-Bit ADC | AD7656ABSTZ vs AD7656BSTZ-REEL |
| AD7656-1BST-500RL7 | Analog Devices Inc | Check for Price | 6-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PQFP64, MS-026BCD, LQFP-64 | AD7656ABSTZ vs AD7656-1BST-500RL7 |
| AD7656-1YSTZ-500RL7 | Analog Devices Inc | Check for Price | 6-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PQFP64, LEAD FREE, MS-026BCD, LQFP-64 | AD7656ABSTZ vs AD7656-1YSTZ-500RL7 |
| AD7656A-1BSTZ-RL | Analog Devices Inc | Check for Price | 250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar, 16-Bit ADC | AD7656ABSTZ vs AD7656A-1BSTZ-RL |
| AD7656BST | Analog Devices Inc | Check for Price | 6-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PQFP64, MS-026BCD, LQFP-64 | AD7656ABSTZ vs AD7656BST |
| AD7656-1BSTZ | Analog Devices Inc | Check for Price | 6-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PQFP64, LEAD FREE, MS-026BCD, LQFP-64 | AD7656ABSTZ vs AD7656-1BSTZ |
| AD7656YSTZ-1-RL | Analog Devices Inc | Check for Price | 250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC | AD7656ABSTZ vs AD7656YSTZ-1-RL |
| AD7656YSTZ-REEL | Analog Devices Inc | Check for Price | 6-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, PQFP64, ROHS COMPLIANT, MS-026BCD, LQFP-64 | AD7656ABSTZ vs AD7656YSTZ-REEL |
| AD7656-1BSTZ-500RL7 | Analog Devices Inc | Check for Price | 6-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PQFP64, LEAD FREE, MS-026BCD, LQFP-64 | AD7656ABSTZ vs AD7656-1BSTZ-500RL7 |
AD7656ABSTZ Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
-
The AD7656ABSTZ has an internal calibration process that can be initiated by setting the CAL pin high. The calibration process takes about 100 μs and should be done after power-up and after any changes to the gain or offset settings.
-
The recommended power-up sequence is to first apply the analog supply voltage (AVDD), then the digital supply voltage (DVDD), and finally the clock signal. This ensures that the internal biasing and reference circuits are properly initialized.
-
If the AD7656ABSTZ is not converting data fast enough, check the clock frequency and ensure it is within the recommended range. Also, check the conversion mode and ensure it is set to the correct mode for the application. If necessary, consider using a faster clock frequency or a different conversion mode.
-
The recommended method is to use a common clock signal for all devices and to use the SYNC pin to synchronize the conversions. This ensures that all devices convert data at the same time and reduces any potential skew between channels.
