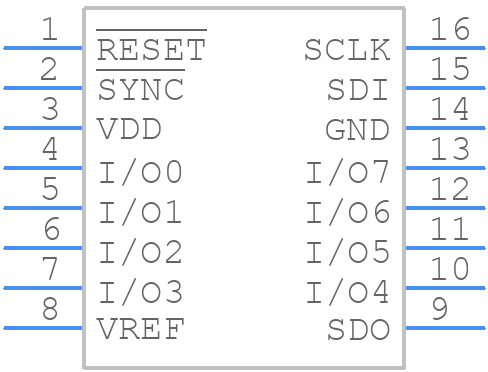

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5592RBRUZ by Analog Devices Inc
Results Overview of AD5592RBRUZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD5592RBRUZ Information
AD5592RBRUZ by Analog Devices Inc is an Other Converter.
Other Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5592RBRUZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6544
|
Newark | Adc, 12Bit, 400Ksps, Tssop-16, Resolution (Bits):12Bit, Sampling Rate:400Ksps, Input Channel Type:-, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Adc/Dac Case Style:Tssop Rohs Compliant: Yes |Analog Devices AD5592RBRUZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 52 |
|
$5.3400 / $8.5500 | Buy Now |
|
DISTI #
505-AD5592RBRUZ-ND
|
DigiKey | IC ADC/DAC 12BIT 400K 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1962 In Stock |
|
$5.1375 / $10.8900 | Buy Now |
|
DISTI #
584-AD5592RBRUZ
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 12-bit octal SPI DAC/ADC on-chip ref RoHS: Compliant | 20002 |
|
$5.1300 / $8.5500 | Buy Now |
|
DISTI #
V99:2348_06209748
|
Arrow Electronics | Data Acquisition System Single ADC Octal DAC 12bit 16-Pin TSSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2404 | Americas - 119 |
|
$5.2160 / $6.8430 | Buy Now |
|
|
Analog Devices Inc | 12-bit octal SPI DAC/ADC on-ch Package Multiple: 96 | 393 |
|
$3.8300 / $10.8900 | Buy Now |
|
DISTI #
79368582
|
Verical | Data Acquisition System Single ADC Octal DAC 12bit 16-Pin TSSOP Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2404 | Americas - 119 |
|
$6.8430 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 207 |
|
RFQ | |
|
DISTI #
SMC-AD5592RBRUZ
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 276 |
|
RFQ | |
|
|
Win Source Electronics | Control and monitoring | IC ADC/DAC 12BIT 400K 16TSSOP | 3850 |
|
$7.3615 / $11.0423 | Buy Now |
Part Details for AD5592RBRUZ
AD5592RBRUZ CAD Models
AD5592RBRUZ Part Data Attributes
|
|
AD5592RBRUZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5592RBRUZ
Analog Devices Inc
8 Channel, 12-Bit, Configurable ADC/DAC with on-chip Reference, SPI interface
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | DAC 12BIT | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 mm | |
| Settling Time-Nom (tstl) | 6 µs | |
| Supply Current-Max | 2.7 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
AD5592RBRUZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface (e.g., SPI or I2C). This ensures proper device operation and prevents potential latch-up conditions.
-
When using an external reference, connect the external reference to the VREF pin and disable the internal reference by setting the VREFEN bit in the Configuration Register to 0. This ensures that the internal reference is disabled and the external reference is used instead.
-
The maximum capacitance on the analog inputs is 10 nF. Exceeding this value may affect the device's performance and accuracy. It's recommended to use a capacitance of 1 nF or less for optimal performance.
-
To ensure accurate conversions, ensure that the analog input signal is within the specified range (0 to VREF), and that the input signal is properly filtered to remove noise and aliasing. Additionally, ensure that the ADC clock frequency is within the recommended range (e.g., 1 MHz to 3.2 MHz).
-
The internal temperature sensor provides a digital output representing the die temperature. This can be used for temperature monitoring or compensation. To use the temperature sensor, set the TEMPSEN bit in the Configuration Register to 1, and then read the temperature data from the Temperature Register.
