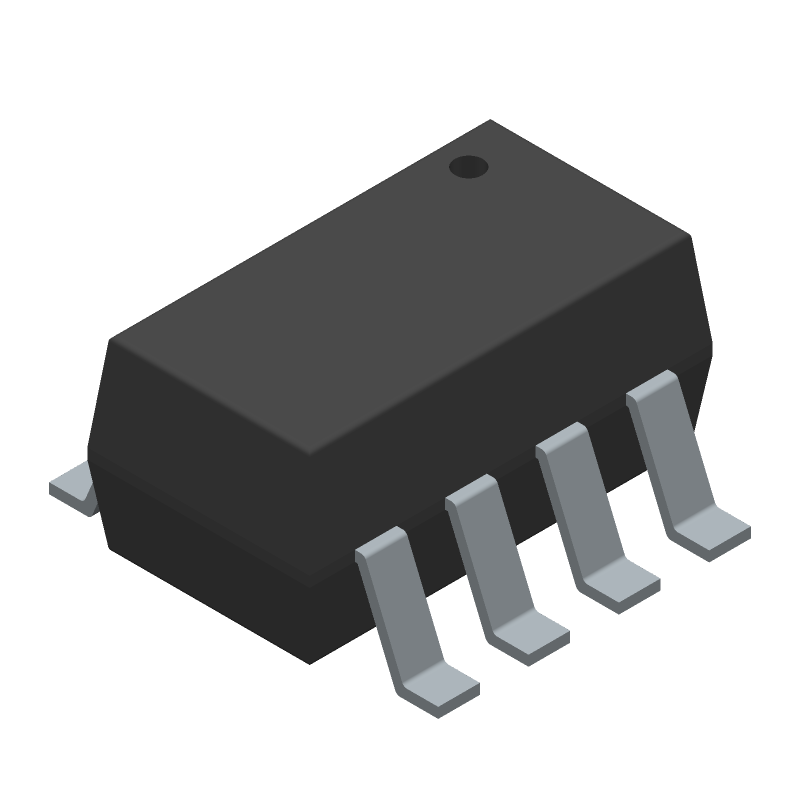

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5061BRJZ-2REEL7 by Analog Devices Inc
Results Overview of AD5061BRJZ-2REEL7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD5061BRJZ-2REEL7 Information
AD5061BRJZ-2REEL7 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5061BRJZ-2REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6227
|
Newark | Dac, 16Bit, Sot-23-8, -40 To 85Deg C, Resolution (Bits):16Bit, Sampling Rate:-, Data Interface:3 Wire, Dsp, Microwire, Qspi, Serial, Spi, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Sot-23, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices AD5061BRJZ-2REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1059 |
|
$5.9000 / $9.8100 | Buy Now |
|
DISTI #
AD5061BRJZ-2REEL7CT-ND
|
DigiKey | IC DAC 16BIT V-OUT SOT23-8 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1820 In Stock |
|
$5.4000 / $11.3100 | Buy Now |
|
DISTI #
584-AD5061BRJZ-2R7
|
Mouser Electronics | Digital to Analog Converters - DAC 16bit 4LSB buffered DAC in SOT23 RoHS: Compliant | 3741 |
|
$5.4000 / $10.4800 | Buy Now |
|
|
Analog Devices Inc | 16bit 4LSB buffered DAC in SOT Min Qty: 1 Package Multiple: 3000 | 1164 |
|
$4.1100 / $11.3100 | Buy Now |
|
|
Rochester Electronics | 16-Bit VOUT, nanoDAC, SPI Interface, 2.7 V to 5.5 V in an SOT-23 RoHS: Compliant Status: Active Min Qty: 1 | 2241 |
|
$4.5400 / $5.6800 | Buy Now |
|
DISTI #
AD5061BRJZ-2R7
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 3000 | 0 |
|
$5.6500 | Buy Now |
Part Details for AD5061BRJZ-2REEL7
AD5061BRJZ-2REEL7 CAD Models
AD5061BRJZ-2REEL7 Part Data Attributes
|
|
AD5061BRJZ-2REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5061BRJZ-2REEL7
Analog Devices Inc
16-Bit VOUT, nanoDAC®, SPI Interface, 2.7 V to 5.5 V in an SOT-23
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOT-23, 8 PIN | |
| Pin Count | 8 | |
| Manufacturer Package Code | RJ-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 4.096 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Linearity Error-Max (EL) | 0.0061% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSSOP8,.1 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 4 µs | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for AD5061BRJZ-2REEL7
This table gives cross-reference parts and alternative options found for AD5061BRJZ-2REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5061BRJZ-2REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5061BRJZ-2500RL7 | Analog Devices Inc | $7.0790 | 16-Bit VOUT, nanoDAC®, SPI Interface, 2.7 V to 5.5 V in an SOT-23 | AD5061BRJZ-2REEL7 vs AD5061BRJZ-2500RL7 |
AD5061BRJZ-2REEL7 Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input and output traces short and away from noise sources.
-
The AD5061BRJZ-2REEL7 has an internal calibration circuitry, but it's recommended to perform an external calibration to ensure optimal performance. The calibration procedure involves applying a known input voltage and adjusting the offset and gain to achieve the desired output code.
-
The AD5061BRJZ-2REEL7 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
-
Use a good PCB layout, keep the analog and digital signals separate, and use EMI filters such as ferrite beads or common-mode chokes to reduce EMI susceptibility. Also, ensure the device is properly shielded and grounded.
-
Ensure a clean power-up sequence by powering up the analog supply (VCC) before the digital supply (VDD). During power-down, power down the digital supply first, followed by the analog supply. Also, ensure a slow power-up and power-down ramp to prevent voltage spikes.
