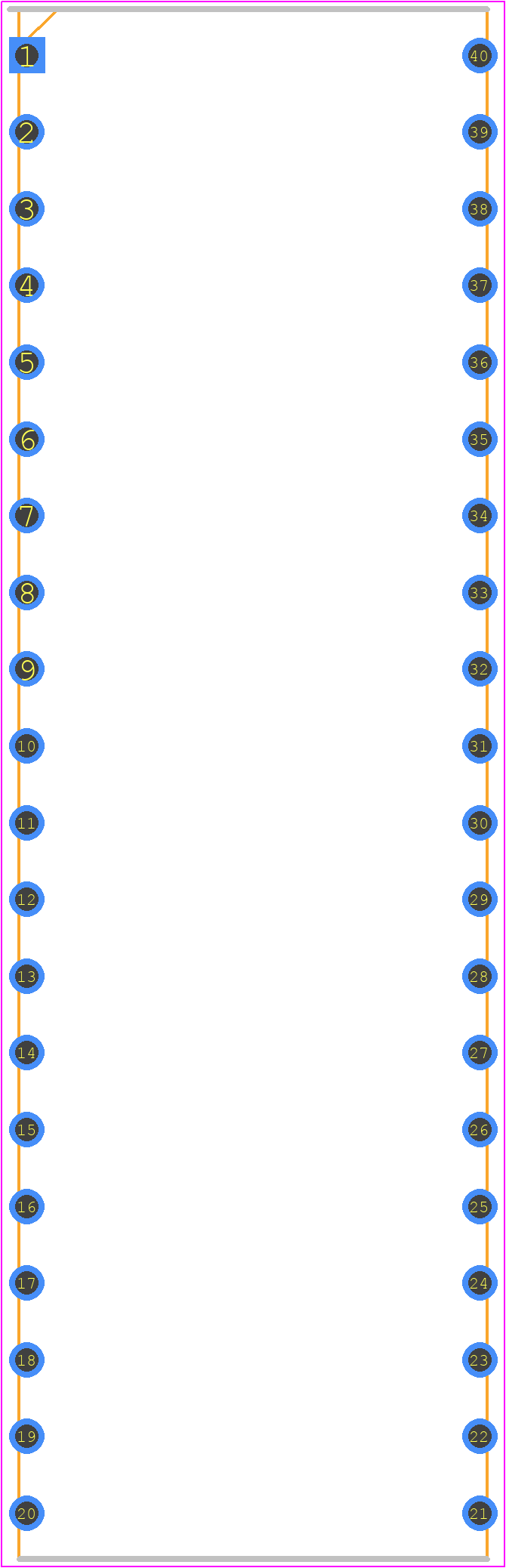

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD2S80ABD by Analog Devices Inc
Results Overview of AD2S80ABD by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
AD2S80ABD Information
AD2S80ABD by Analog Devices Inc is a Position Converter.
Position Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD2S80ABD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-AD2S80ABD-ND
|
DigiKey | IC R/D CONV 10/12/14/16B 40CDIP Min Qty: 1 Lead time: 10 Weeks Container: Bulk MARKETPLACE PRODUCT |
36 In Stock |
|
$425.3800 | Buy Now |
|
DISTI #
AD2S80ABD-ND
|
DigiKey | IC R/D CONV 10/12/14/16B 40CDIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1 In Stock |
|
$428.5000 | Buy Now |
|
DISTI #
584-AD2S80ABD
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 4 ARC MIN IND TEMPMONO IC RoHS: Not Compliant | 3 |
|
$450.7600 / $490.3000 | Buy Now |
|
|
Analog Devices Inc | 4 ARC MIN IND TEMPMONO IC Package Multiple: 1 | 655 |
|
$342.8000 / $428.5000 | Buy Now |
|
DISTI #
26633455
|
Verical | Resolver to Digital 16bit Parallel ±4arcmin 40-Pin SBCDIP Tube RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 | Americas - 654 |
|
$423.9951 | Buy Now |
|
|
Quest Components | IC,RESOLVER-TO-DIGITAL CONVERTER,BICMOS,DIP,40PIN | 1 |
|
$557.7731 | Buy Now |
|
|
Rochester Electronics | Variable Resolution, Monolithic Resolver-To-Digital Converter RoHS: Not Compliant Status: Active Min Qty: 1 | 36 |
|
$360.8400 / $410.0500 | Buy Now |
Part Details for AD2S80ABD
AD2S80ABD CAD Models
AD2S80ABD Part Data Attributes
|
|
AD2S80ABD
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD2S80ABD
Analog Devices Inc
Variable Resolution Resolver-to-Digital Converters
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Package Description | DIP-40 | |
| Pin Count | 40 | |
| Manufacturer Package Code | D-40-1 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO REQUIRES A 5V LOGIC SUPPLY | |
| Analog Input Voltage-Max | 2.2 V | |
| Angular Accuracy-Max | 4 arc min | |
| Converter Type | SYNCHRO OR RESOLVER TO DIGITAL CONVERTER | |
| JESD-30 Code | R-CDIP-T40 | |
| Length | 50.8 mm | |
| Negative Supply Voltage-Max | -13.2 V | |
| Negative Supply Voltage-Min | -10.8 V | |
| Negative Supply Voltage-Nom | -12 V | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP40,.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.06 mm | |
| Signal/Output Frequency | 20000 Hz | |
| Supply Voltage-Max | 13.2 V | |
| Supply Voltage-Min | 10.8 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | NO | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Tracking Rate-Max | 16.25 rps | |
| Width | 15.24 mm |
Alternate Parts for AD2S80ABD
This table gives cross-reference parts and alternative options found for AD2S80ABD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD2S80ABD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD2S80AUD | Analog Devices Inc | $424.1829 | Variable Resolution Resolver-to-Digital Converters | AD2S80ABD vs AD2S80AUD |
| AD2S80ATD/883B | Analog Devices Inc | Check for Price | IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, CDIP40, SIDE BRAZED, CERAMIC, DIP-40, Position Converter | AD2S80ABD vs AD2S80ATD/883B |
| AD2S80AAD | Analog Devices Inc | Check for Price | Variable Resolution Resolver-to-Digital Converters | AD2S80ABD vs AD2S80AAD |
| 5962-9096201MQA | Analog Devices Inc | Check for Price | Variable Resolution Resolver-to-Digital Converters | AD2S80ABD vs 5962-9096201MQA |
| AD2S80AKD | Analog Devices Inc | Check for Price | Variable Resolution Resolver-to-Digital Converters | AD2S80ABD vs AD2S80AKD |
| AD2S80ASD/883B | Analog Devices Inc | Check for Price | Variable Resolution Resolver-to-Digital Converters | AD2S80ABD vs AD2S80ASD/883B |
AD2S80ABD Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog input signals. This ensures proper device operation and prevents latch-up.
-
To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and minimize the length of the analog input traces. Also, place the device close to the analog signal sources and use shielding to reduce noise.
-
The maximum clock frequency is 20 MHz, but it's recommended to use a clock frequency of 10 MHz or less to ensure reliable operation and minimize jitter.
-
The AD2S80ABD outputs 16-bit data in a serial format. You can use a microcontroller or FPGA to receive and process the data. Make sure to use a compatible communication protocol and handle the data accordingly.
-
The typical power consumption of the AD2S80ABD is around 150 mW, but it can vary depending on the operating frequency, input signal levels, and other factors. Refer to the datasheet for more information.
