Part Details for ACVN51212 by Panasonic Electronic Components

Results Overview of ACVN51212 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ACVN51212 Information

ACVN51212 by Panasonic Electronic Components is an Other Relay.
Other Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for ACVN51212

Part # Distributor Description Stock Price Buy
DISTI # 29X2504
Newark Cv-N Relay(Auto |Panasonic ACVN51212 RoHS: Not Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $3.7800
  • 100 $3.3700
  • 500 $3.0700
  • 1,000 $2.7100
  • 2,500 $2.5200
$2.5200 / $3.7800 Buy Now
DISTI # 255-5164-ND
DigiKey RELAY AUTOMOTIVE SPST 35A 12V Min Qty: 1 Lead time: 16 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $4.3800
  • 10 $3.9000
  • 25 $3.7244
  • 50 $3.5970
  • 100 $3.4737
  • 250 $3.3170
  • 500 $3.2031
  • 1,000 $3.0930
$3.0930 / $4.3800 Buy Now
DISTI # ACVN51212
Avnet Americas - Rail/Tube (Alt: ACVN51212) RoHS: Not Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days Container: Tube 0
  • 50 $2.3618
  • 100 $2.3497
  • 200 $2.2870
  • 300 $2.3625
  • 400 $2.3247
$2.2870 / $2.3625 Buy Now
DISTI # 769-ACVN51212
Mouser Electronics Automotive Relays CV-N relay standard parts RoHS: Compliant 641
  • 1 $3.4600
  • 10 $3.2100
  • 50 $2.7200
  • 250 $2.6700
  • 500 $2.5700
  • 1,000 $2.4900
$2.4900 / $3.4600 Buy Now
DISTI # 74611893
RS Automotive Relay (Plug-in Obihiro)CV-N Relay(Automotive) Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 15
  • 1 $3.5400
  • 10 $3.4300
  • 25 $3.3600
  • 50 $3.2900
  • 100 $3.2200
$3.2200 / $3.5400 Buy Now
Onlinecomponents.com   RoHS: Compliant 32 Partner Stock
  • 1 $3.4210
  • 50 $3.1100
  • 100 $3.0100
  • 250 $2.8800
  • 500 $2.7500
  • 1,000 $2.6400
  • 2,500 $2.5700
  • 5,000 $2.5000
$2.5000 / $3.4210 Buy Now
DISTI # 69204171
Verical Power Relay 12VDC SPST-NO(22.5x15x15.7)mm Socket RoHS: Compliant Min Qty: 15 Package Multiple: 1 Americas - 32
  • 15 $4.4600
$4.4600 Buy Now
DISTI # ACVN51212
TTI Automotive Relays CV-N relay standard parts RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Each Americas - 0
  • 50 $2.5300
  • 100 $2.4800
  • 150 $2.4300
  • 250 $2.3800
  • 400 $2.3400
  • 500 $2.2900
$2.2900 / $2.5300 Buy Now
DISTI # 000000000007250182
Sager Automotive Relays CV-N relay standard parts Min Qty: 50 0
  • 50 $2.9100
  • 150 $2.7800
  • 250 $2.7000
  • 550 $2.6300
  • 1,050 $2.5200
$2.5200 / $2.9100 Buy Now
DISTI # ACVN51212
Avnet Abacus (Alt: ACVN51212) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 19 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics   RoHS: Compliant 32 Partner Stock
  • 1 $3.4210
  • 50 $3.1100
  • 100 $3.0100
  • 250 $2.8800
  • 500 $2.7500
  • 1,000 $2.6400
  • 2,500 $2.5700
  • 5,000 $2.5000
$2.5000 / $3.4210 Buy Now

Part Details for ACVN51212

ACVN51212 Part Data Attributes

Parametric Data
ACVN51212 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:

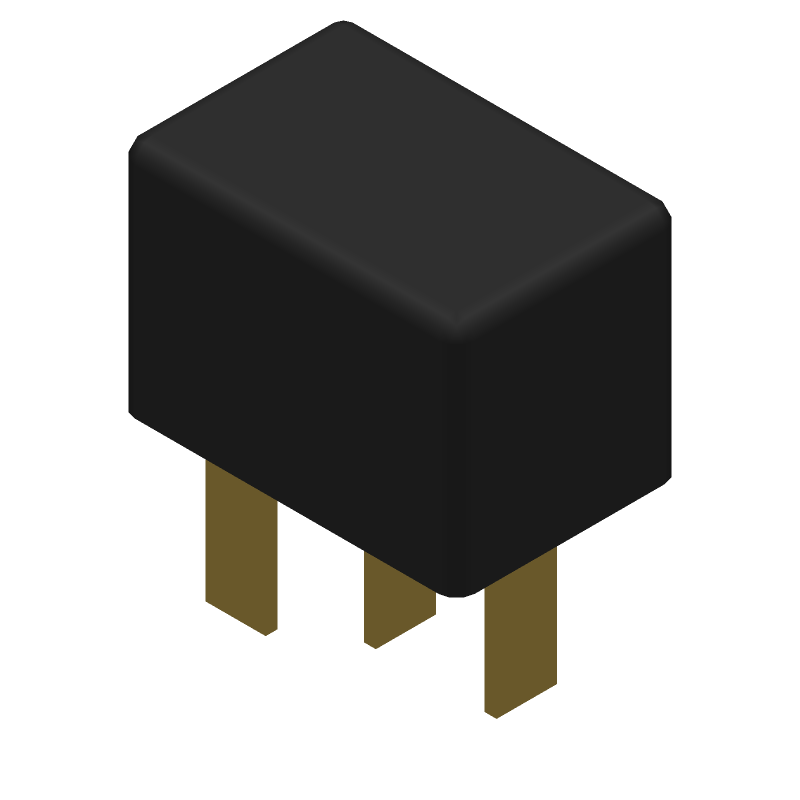

ACVN51212 Panasonic Electronic Components Electromechanical Relay, SPST, 16VDC (Coil), 35A (Contact), 14VDC (Contact), Random, DC Output
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.41.00.50
Factory Lead Time 16 Weeks
Samacsys Manufacturer Panasonic
Body Breadth 15 mm
Body Height 15.7 mm
Body Length or Diameter 22.5 mm
Coil Operate Voltage(DC) 7 V
Coil Release Voltage(DC) 0.5 V
Coil Resistance 160.7 Ω
Coil Voltage(DC)-Max 16 V
Coil Voltage-Nom 12 V
Coil/Input Supply Type DC
Contact Current(DC)-Max 35 A
Contact (DC) Max Rating R Load 35A@14VDC
Contact Resistance 3 mΩ
Contact Voltage(DC)-Max 14 V
Contact/Output Supply Type DC
Electrical Life 100000 Cycle(s)
End Contact Material Silver Alloy
Input Switching Control Type Random
Insulation Resistance 20000000 Ω
Number of Terminals 4
Operate Time 10 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Physical Dimension 22.5mm x 15mm x 15.7mm
Relay Form 1 FORM A
Relay Function SPST
Release Time 10 ms
Terminal Length 0.011000762001524004 inch
Termination Type QUICK CONNECT
