Crystals/Resonators / Quartz Crystals / ABLS-4.9152MHZ-20-B-4-Y-T
Datasheets
ABLS-4.9152MHZ-20-B-4-Y-T by: Abracon Corporation

CRYSTAL 4.9152MHZ 20PF SMD

Part Details for ABLS-4.9152MHZ-20-B-4-Y-T by Abracon Corporation

Results Overview of ABLS-4.9152MHZ-20-B-4-Y-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation

ABLS-4.9152MHZ-20-B-4-Y-T Information

ABLS-4.9152MHZ-20-B-4-Y-T by Abracon Corporation is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.

Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.

Price & Stock for ABLS-4.9152MHZ-20-B-4-Y-T

Part # Distributor Description Stock Price Buy
DISTI # 01AH8968
Newark Crystal 4.9152Mhz 20Pf Smd Rohs Compliant: Yes |Abracon ABLS-4.9152MHZ-20-B-4-Y-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1000
  • 1 $0.0490
  • 10 $0.0490
$0.0490 Buy Now
DISTI # 535-14927-1-ND
DigiKey CRYSTAL 4.9152MHZ 20PF SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.2500
  • 1,000 $0.1643
$0.1643 / $0.2500 Buy Now
DISTI # 01AH8968
Avnet Americas Crystal, 4.9152 MHz, SMD, 11.5mm x 4.7mm, 30 ppm, 20 pF, 30 ppm, ABLS - Product that comes on tape, but is not reeled (Alt: 01AH8968) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Ammo Pack 1000 Partner Stock
  • 1 $0.1810
  • 10 $0.1720
  • 25 $0.1830
  • 50 $0.1720
  • 100 $0.1650
$0.1650 / $0.1830 Buy Now
DISTI # ABLS-4.9152MHZ-20-B-4-Y-T
Avnet Americas Crystal, 4.9152 MHz, SMD, 11.5mm x 4.7mm, 30 ppm, 20 pF, 30 ppm, ABLS - Tape and Reel (Alt: ABLS-4.9152MHZ-20-B-4-Y-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.1092
  • 2,000 $0.1067
  • 4,000 $0.1042
  • 6,000 $0.0907
  • 8,000 $0.0885
$0.0885 / $0.1092 Buy Now
DISTI # 815-LS49152MHZ20B4YT
Mouser Electronics Crystals Xtal HC-49/US SMD 4.5mm Height 4.9152MHz Tol +/-30ppm Stab +/-30ppm -20°C ~ 70°C 20pF 180 Ohms RoHS: Compliant 0
  • 1 $0.2300
  • 10 $0.2260
  • 50 $0.1700
  • 100 $0.1630
  • 500 $0.1470
  • 1,000 $0.1410
  • 2,000 $0.1340
  • 5,000 $0.1260
  • 10,000 $0.1200
$0.1200 / $0.2300 Order Now
DISTI # V72:2272_23320439
Arrow Electronics Crystal 4.9152MHz ±30ppm (Tol) ±30ppm (Stability) 20pF FUND 180Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1925 Container: Cut Strips Americas - 865
  • 1 $0.0368
  • 10 $0.0362
  • 25 $0.0358
  • 50 $0.0272
  • 100 $0.0261
  • 250 $0.0258
  • 500 $0.0192
$0.0192 / $0.0368 Buy Now
DISTI # 74563463
RS Crystal, SMD, HC/49US, 11.5x 4.7x 4.2mm, 4.9152MHZ, 20pF, -20C/70C, +/-30ppm Min Qty: 1000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk 0
  • 1,000 $0.1520
$0.1520 RFQ
Onlinecomponents.com Crystal - 4.9152MHZ (+/-) 30ppm - 20pF - SMD LOW PROFILE - HC/49US (AT49) - -20°C to +70°C - Tape&Reel RoHS: Compliant 0
  • 1,000 $0.1355
  • 3,000 $0.1217
  • 5,000 $0.1087
  • 8,000 $0.1071
  • 25,000 $0.0973
  • 50,000 $0.0934
  • 100,000 $0.0920
  • 150,000 $0.0906
$0.0906 / $0.1355 Buy Now
DISTI # 34022990
Verical Crystal 4.9152MHz ±30ppm (Tol) ±30ppm (Stability) 20pF FUND 180Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 428 Package Multiple: 1 Date Code: 1925 Americas - 865
  • 428 $0.0258
  • 500 $0.0192
$0.0192 / $0.0258 Buy Now
DISTI # ABLS-4.9152MHZ-20-B-4-Y-T
Avnet Abacus Crystal 49152 MHz SMD 115mm x 47mm 30 ppm 20 pF 30 ppm ABLS - Tape and Reel (Alt: ABLS-4.9152MHZ-20-B-4-Y-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for ABLS-4.9152MHZ-20-B-4-Y-T

ABLS-4.9152MHZ-20-B-4-Y-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

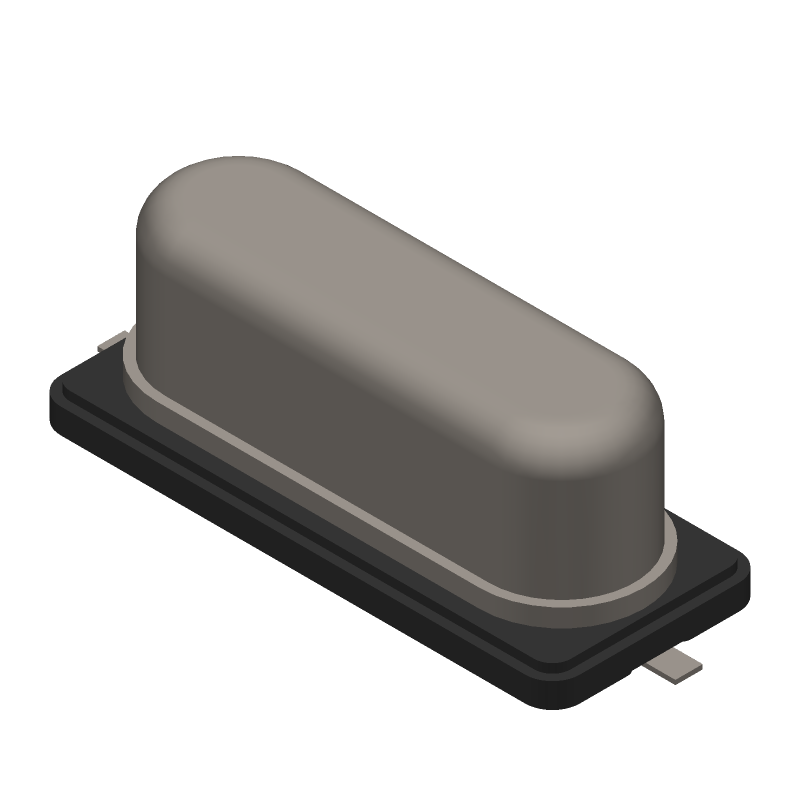

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ABLS-4.9152MHZ-20-B-4-Y-T Part Data Attributes

Parametric Data
ABLS-4.9152MHZ-20-B-4-Y-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ABLS-4.9152MHZ-20-B-4-Y-T Abracon Corporation CRYSTAL 4.9152MHZ 20PF SMD
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ABRACON LLC
Package Description HC/49US, SMD, 2 PIN
Reach Compliance Code compliant
HTS Code 8541.60.00.30
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer ABRACON
Additional Feature AT-CUT
Aging 5 PPM/FIRST YEAR
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level 100 µW
Frequency Stability 0.003%
Frequency Tolerance 30 ppm
JESD-609 Code e3
Load Capacitance 20 pF
Mounting Feature SURFACE MOUNT
Operating Frequency-Nom 4.9152 MHz
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Physical Dimension 11.4mm x 4.7mm x 4.2mm
Series Resistance 180 Ω
Surface Mount YES
Terminal Finish Matte Tin (Sn)
