ABLS-28.63636MHZ-D-4-H-F-T by: Abracon Corporation

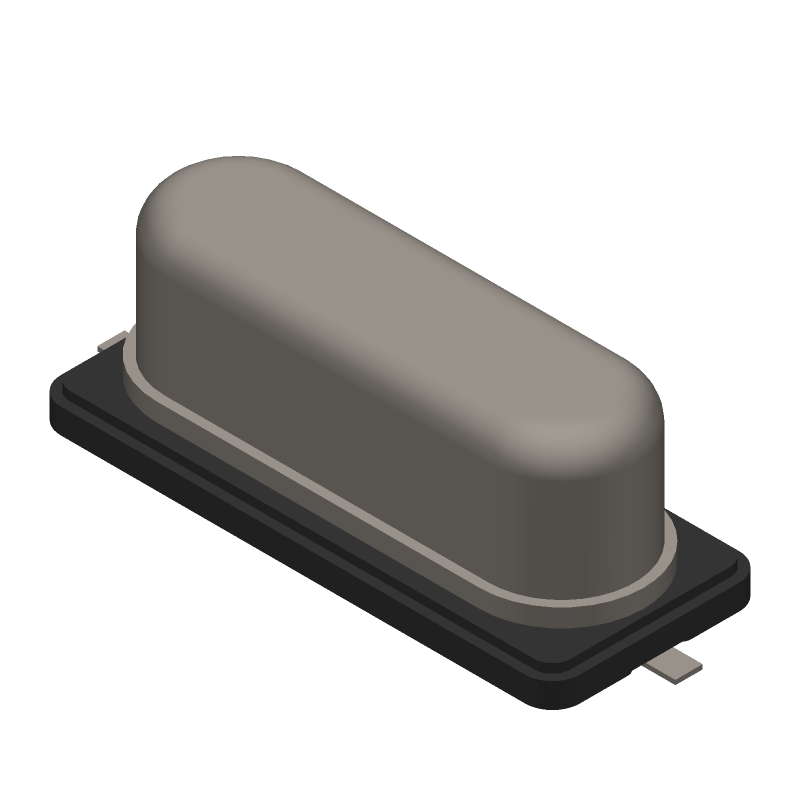

CRYSTAL 28.63636MHZ 18PF SMD

Part Details for ABLS-28.63636MHZ-D-4-H-F-T by Abracon Corporation

Results Overview of ABLS-28.63636MHZ-D-4-H-F-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation

ABLS-28.63636MHZ-D-4-H-F-T Information

ABLS-28.63636MHZ-D-4-H-F-T by Abracon Corporation is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.

Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LD09P24A4GV00LF Amphenol Communications Solutions D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
DB5W5P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets.
DCV8W8P543M30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets.

Price & Stock for ABLS-28.63636MHZ-D-4-H-F-T

Part # Distributor Description Stock Price Buy
DISTI # 01AH8933
Newark Crystal 28.63636Mhz 18Pf Smd Rohs Compliant: Yes |Abracon ABLS-28.63636MHZ-D-4-H-F-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 879
  • 1 $0.0800
  • 10 $0.0800
  • 25 $0.0800
  • 50 $0.0800
  • 100 $0.0800
  • 250 $0.0800
  • 500 $0.0800
$0.0800 Buy Now
DISTI # 535-14906-1-ND
DigiKey CRYSTAL 28.63636MHZ 18PF SMD Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.2500
  • 1,000 $0.1643
$0.1643 / $0.2500 Buy Now
DISTI # 01AH8933
Avnet Americas Crystal, 28.63636 MHz, SMD, 11.5mm x 4.7mm, 35 ppm, 18 pF, 30 ppm, ABLS - Product that comes on tape, but is not reeled (Alt: 01AH8933) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Ammo Pack 879 Partner Stock
  • 1 $0.2320
  • 10 $0.3030
  • 25 $0.2830
  • 50 $0.2620
  • 100 $0.2440
$0.2320 / $0.3030 Buy Now
DISTI # ABLS-28.63636MHZ-D-4-H-F-T
Avnet Americas Crystal, 28.63636 MHz, SMD, 11.5mm x 4.7mm, 35 ppm, 18 pF, 30 ppm, ABLS - Tape and Reel (Alt: ABLS-28.63636MHZ-D-4-H-F-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.1260
  • 2,000 $0.1235
  • 4,000 $0.1210
  • 6,000 $0.1056
  • 8,000 $0.1035
$0.1035 / $0.1260 Buy Now
DISTI # 815-2863636MHZD4HFT
Mouser Electronics Crystals Xtal HC-49/US SMD 4.5mm Height 28.63636MHz Tol +/-30ppm Stab +/-35ppm -40°C ~ 85°C 18pF 40 Ohms RoHS: Compliant 0
  • 1 $0.2200
  • 10 $0.1920
  • 50 $0.1730
  • 100 $0.1660
  • 500 $0.1480
  • 1,000 $0.1440
  • 2,000 $0.1360
  • 5,000 $0.1290
  • 10,000 $0.1230
$0.1230 / $0.2200 Order Now
DISTI # V72:2272_23320418
Arrow Electronics Crystal 28.63636MHz ±30ppm (Tol) ±35ppm (Stability) 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1929 Container: Cut Strips Americas - 783
  • 1 $0.0352
  • 10 $0.0307
  • 25 $0.0277
  • 100 $0.0266
  • 250 $0.0263
  • 500 $0.0217
$0.0217 / $0.0352 Buy Now
Onlinecomponents.com Crystal - 28.63636MHZ (+/-) 30ppm - 18pF - SMD LOW PROFILE - HC/49US (AT49) - -40°C to +85°C - Tape&Reel RoHS: Compliant 0
  • 1,000 $0.1355
  • 3,000 $0.1217
  • 5,000 $0.1087
  • 8,000 $0.1071
  • 25,000 $0.0973
  • 50,000 $0.0934
  • 100,000 $0.0920
  • 150,000 $0.0906
$0.0906 / $0.1355 Buy Now
DISTI # 60334742
Verical Crystal 28.63636MHz ±30ppm (Tol) ±35ppm (Stability) 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 625 Package Multiple: 1 Americas - 879
  • 625 $0.1209
$0.1209 Buy Now

Part Details for ABLS-28.63636MHZ-D-4-H-F-T

ABLS-28.63636MHZ-D-4-H-F-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ABLS-28.63636MHZ-D-4-H-F-T Part Data Attributes

Parametric Data
ABLS-28.63636MHZ-D-4-H-F-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ABLS-28.63636MHZ-D-4-H-F-T Abracon Corporation CRYSTAL 28.63636MHZ 18PF SMD
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ABRACON LLC
Package Description HC/49US, SMD, 2 PIN
Reach Compliance Code compliant
HTS Code 8541.60.00.60
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer ABRACON
Additional Feature AT-CUT
Aging 5 PPM/FIRST YEAR
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level 100 µW
Frequency Stability 0.0035%
Frequency Tolerance 30 ppm
JESD-609 Code e3
Load Capacitance 18 pF
Mounting Feature SURFACE MOUNT
Operating Frequency-Nom 28.63636 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Physical Dimension 11.4mm x 4.7mm x 4.2mm
Series Resistance 40 Ω
Surface Mount YES
Terminal Finish Matte Tin (Sn)
