Part Symbol
-

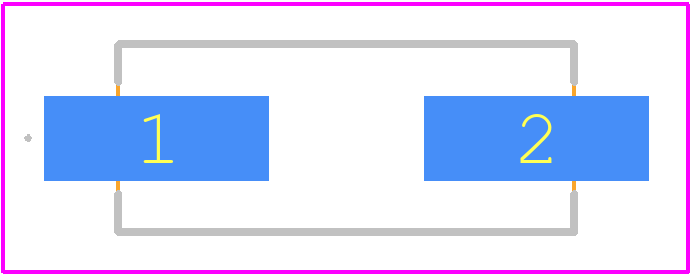

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ABLS-25.000MHZ-D-3-Y-F-T by Abracon Corporation
Results Overview of ABLS-25.000MHZ-D-3-Y-F-T by Abracon Corporation
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
ABLS-25.000MHZ-D-3-Y-F-T Information
ABLS-25.000MHZ-D-3-Y-F-T by Abracon Corporation is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for ABLS-25.000MHZ-D-3-Y-F-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH8928
|
Newark | Crystal 25.0000Mhz 18Pf Smd Rohs Compliant: Yes |Abracon ABLS-25.000MHZ-D-3-Y-F-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 53 |
|
$0.0400 | Buy Now |
|
DISTI #
535-14904-1-ND
|
DigiKey | CRYSTAL 25.0000MHZ 18PF SMD Min Qty: 1 Lead time: 10 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
4674 In Stock |
|
$0.1369 / $0.2500 | Buy Now |
|
DISTI #
01AH8928
|
Avnet Americas | Crystal, Standard, 25 MHz, SMD, 11.5mm x 4.7mm x 4.2mm, 30 ppm, 18 pF, 25 ppm, ABLS - Product that comes on tape, but is not reeled (Alt: 01AH8928) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Ammo Pack | 53 Partner Stock |
|
$0.2160 | Buy Now |
|
DISTI #
ABLS-25.000MHZ-D-3-Y-F-T
|
Avnet Americas | Crystal, Standard, 25 MHz, SMD, 11.5mm x 4.7mm x 4.2mm, 30 ppm, 18 pF, 25 ppm, ABLS - Tape and Reel (Alt: ABLS-25.000MHZ-D-3-Y-F-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1225 | Buy Now |
|
DISTI #
815-LS25000MHZD3YFT
|
Mouser Electronics | Crystals Xtal HC-49/US SMD 4.5mm Height 25MHz Tol +/-25ppm Stab +/-30ppm -40°C ~ 85°C 18pF 40 Ohms RoHS: Compliant | 1238 |
|
$0.1420 / $0.2500 | Buy Now |
|
DISTI #
V72:2272_23320416
|
Arrow Electronics | Crystal 25MHz ±25ppm (Tol) ±30ppm (Stability) 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2243 Container: Cut Strips | Americas - 450 |
|
$0.1026 / $0.1150 | Buy Now |
|
DISTI #
74563389
|
RS | Crystal, HC/49US, 11.5x 4.7x 4.2mm, 25.000MHZ, -40C/85C, +/-25ppm Min Qty: 1000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1250 | RFQ |
|
|
Onlinecomponents.com | Crystal - 25.000MHZ (+/-) 25ppm - 18pF - SMD LOW PROFILE - HC/49US (AT49) - -40°C to +85°C - Tape&Reel RoHS: Compliant | 0 |
|
$0.0906 / $0.1355 | Buy Now |
|
DISTI #
65063430
|
Verical | Crystal 25MHz ±25ppm (Tol) ±30ppm (Stability) 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 2243 | Americas - 450 |
|
$0.1026 / $0.1088 | Buy Now |
|
DISTI #
ABLS-25.000MHZ-D-3-Y-F-T
|
Avnet Abacus | Crystal Standard 25 MHz SMD 115mm x 47mm x 42mm 30 ppm 18 pF 25 ppm ABLS - Tape and Reel (Alt: ABLS-25.000MHZ-D-3-Y-F-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for ABLS-25.000MHZ-D-3-Y-F-T
ABLS-25.000MHZ-D-3-Y-F-T CAD Models
ABLS-25.000MHZ-D-3-Y-F-T Part Data Attributes
|
|
ABLS-25.000MHZ-D-3-Y-F-T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ABLS-25.000MHZ-D-3-Y-F-T
Abracon Corporation
CRYSTAL 25.0000MHZ 18PF SMD
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Package Description | HC/49US, SMD, 2 PIN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.60.00.60 | |
| Factory Lead Time | 19 Weeks, 3 Days | |
| Samacsys Manufacturer | ABRACON | |
| Additional Feature | AT-CUT | |
| Aging | 5 PPM/FIRST YEAR | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 100 µW | |
| Frequency Stability | 0.003% | |
| Frequency Tolerance | 25 ppm | |
| JESD-609 Code | e3 | |
| Load Capacitance | 18 pF | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 25 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | 11.4mm x 4.7mm x 4.2mm | |
| Series Resistance | 40 Ω | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) |
ABLS-25.000MHZ-D-3-Y-F-T Frequently Asked Questions (FAQ)
-
Abracon recommends a symmetrical PCB layout with a solid ground plane, and keeping the oscillator away from high-frequency noise sources. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
-
To ensure the oscillator starts up correctly, Abracon recommends applying a power-up ramp of 1-2 ms to the VCC pin, and ensuring that the VCC pin is decoupled with a 10-100 nF capacitor to ground.
-
The ABLS-25.000MHZ-D-3-Y-F-T has an operating temperature range of -40°C to +85°C, but it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
-
The ABLS-25.000MHZ-D-3-Y-F-T is designed to withstand moderate vibration levels, but it's recommended to consult with Abracon's application engineers for specific vibration requirements and to ensure the oscillator is properly mounted and secured.
-
Abracon recommends storing the oscillator in a dry, cool place with a relative humidity of 60% or less, and avoiding exposure to direct sunlight, moisture, or extreme temperatures.
