Crystals/Resonators / Quartz Crystals / ABLS-12.000MHZ-32-B-4-Y-T
Datasheets
ABLS-12.000MHZ-32-B-4-Y-T by: Abracon Corporation

CRYSTAL 12.0000MHZ 32PF SMD

Part Details for ABLS-12.000MHZ-32-B-4-Y-T by Abracon Corporation

Results Overview of ABLS-12.000MHZ-32-B-4-Y-T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation

ABLS-12.000MHZ-32-B-4-Y-T Information

ABLS-12.000MHZ-32-B-4-Y-T by Abracon Corporation is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.

Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.

Price & Stock for ABLS-12.000MHZ-32-B-4-Y-T

Part # Distributor Description Stock Price Buy
DISTI # 87AK6583
Newark Crystals Crystal 12.0000Mhz 32Pf Smd |Abracon ABLS-12.000MHZ-32-B-4-Y-T RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 1000
  • 1,000 $0.1640
$0.1640 Buy Now
DISTI # 01AH8880
Newark Crystal 12.0000Mhz 32Pf Smd Rohs Compliant: Yes |Abracon ABLS-12.000MHZ-32-B-4-Y-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1000
  • 1 $0.0610
  • 10 $0.0610
$0.0610 Buy Now
DISTI # 535-14872-1-ND
DigiKey CRYSTAL 12.0000MHZ 32PF SMD Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.2500
  • 1,000 $0.1643
$0.1643 / $0.2500 Buy Now
DISTI # 01AH8880
Avnet Americas Crystal, 12 MHz, SMD, 11.5mm x 4.7mm, 30 ppm, 32 pF, 30 ppm, ABLS - Product that comes on tape, but is not reeled (Alt: 01AH8880) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Ammo Pack 1000 Partner Stock
  • 1 $0.1720
  • 10 $0.2310
  • 25 $0.2150
  • 50 $0.2430
  • 100 $0.2300
$0.1720 / $0.2430 Buy Now
DISTI # ABLS-12.000MHZ-32-B-4-Y-T
Avnet Americas Crystal, 12 MHz, SMD, 11.5mm x 4.7mm, 30 ppm, 32 pF, 30 ppm, ABLS - Tape and Reel (Alt: ABLS-12.000MHZ-32-B-4-Y-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.1260
  • 2,000 $0.1235
  • 4,000 $0.1210
  • 6,000 $0.1056
  • 8,000 $0.1035
$0.1035 / $0.1260 Buy Now
DISTI # 815-LS12000MHZ32B4YT
Mouser Electronics Crystals Xtal HC-49/US SMD 4.5mm Height 12MHz Tol +/-30ppm Stab +/-30ppm -20°C ~ 70°C 32pF 50 Ohms RoHS: Compliant 0
  • 1 $0.2300
  • 10 $0.2260
  • 50 $0.1700
  • 100 $0.1630
  • 500 $0.1540
  • 1,000 $0.1530
  • 2,000 $0.1350
  • 5,000 $0.1280
  • 10,000 $0.1220
$0.1220 / $0.2300 Order Now
DISTI # V72:2272_23320384
Arrow Electronics Crystal 12MHz ±30ppm (Tol) ±30ppm (Stability) 32pF FUND 50Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1929 Container: Cut Strips Americas - 608
  • 1 $0.0304
  • 10 $0.0232
  • 25 $0.0230
  • 100 $0.0227
  • 250 $0.0225
  • 500 $0.0210
$0.0210 / $0.0304 Buy Now
DISTI # 74563269
RS Crystal, HC/49US, low profile, 11.5 x 4.7 x 4.2 mm, 12.000MHZ, 32pF, +/-30ppm Min Qty: 1000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk 0
  • 1,000 $0.1910
$0.1910 RFQ
Onlinecomponents.com Crystal - 12.000MHZ (+/-) 30ppm - 32pF - SMD LOW PROFILE - HC/49US (AT49) - -20°C to +70°C - Tape&Reel RoHS: Compliant 1000 Partner Stock
  • 1,000 $0.1355
  • 3,000 $0.1217
  • 5,000 $0.1087
  • 8,000 $0.1071
  • 25,000 $0.0973
  • 50,000 $0.0934
  • 100,000 $0.0920
  • 150,000 $0.0906
$0.0906 / $0.1355 Buy Now
DISTI # 65694470
Verical Crystal 12MHz ±30ppm (Tol) ±30ppm (Stability) 32pF FUND 50Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Americas - 1000
  • 1,000 $0.1530
$0.1530 Buy Now
DISTI # 60334705
Verical Crystal 12MHz ±30ppm (Tol) ±30ppm (Stability) 32pF FUND 50Ohm 2-Pin HC-49/US SMD T/R RoHS: Compliant Min Qty: 820 Package Multiple: 1 Americas - 1000
  • 820 $0.0922
  • 1,000 $0.0892
$0.0892 / $0.0922 Buy Now
Master Electronics Crystal - 12.000MHZ (+/-) 30ppm - 32pF - SMD LOW PROFILE - HC/49US (AT49) - -20°C to +70°C - Tape&Reel RoHS: Compliant 1000 Partner Stock
  • 1,000 $0.1355
  • 3,000 $0.1217
  • 5,000 $0.1087
  • 8,000 $0.1071
  • 25,000 $0.0973
  • 50,000 $0.0934
  • 100,000 $0.0920
  • 150,000 $0.0906
$0.0906 / $0.1355 Buy Now
Vyrian Crystals & Resonators 342
RFQ

Part Details for ABLS-12.000MHZ-32-B-4-Y-T

ABLS-12.000MHZ-32-B-4-Y-T CAD Models

  • Part Symbol

    Part Symbol

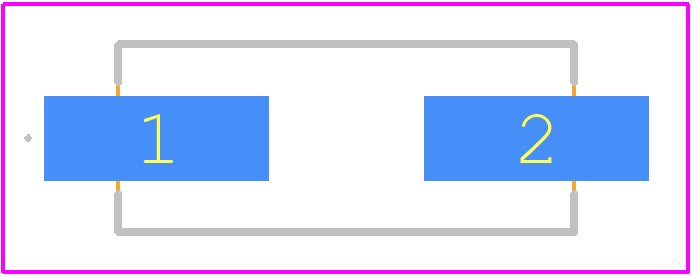

  • Footprint

    footprint

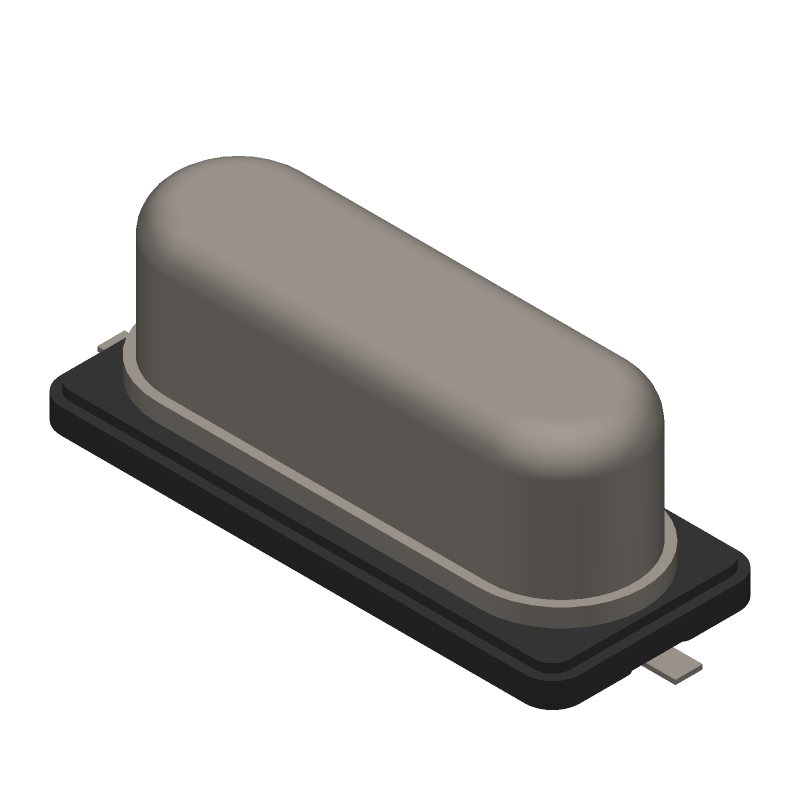

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ABLS-12.000MHZ-32-B-4-Y-T Part Data Attributes

Parametric Data
ABLS-12.000MHZ-32-B-4-Y-T Abracon Corporation
Buy Now Datasheet
Compare Parts:
ABLS-12.000MHZ-32-B-4-Y-T Abracon Corporation CRYSTAL 12.0000MHZ 32PF SMD
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ABRACON LLC
Package Description HC/49US, SMD, 2 PIN
Reach Compliance Code compliant
HTS Code 8541.60.00.50
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer ABRACON
Additional Feature AT-CUT
Aging 5 PPM/FIRST YEAR
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level 100 µW
Frequency Stability 0.003%
Frequency Tolerance 30 ppm
JESD-609 Code e3
Load Capacitance 32 pF
Mounting Feature SURFACE MOUNT
Operating Frequency-Nom 12 MHz
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Physical Dimension 11.4mm x 4.7mm x 4.2mm
Series Resistance 50 Ω
Surface Mount YES
Terminal Finish Matte Tin (Sn)
