Part Details for A3T21H360W23SR6 by NXP Semiconductors
Results Overview of A3T21H360W23SR6 by NXP Semiconductors
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
A3T21H360W23SR6 Information
A3T21H360W23SR6 by NXP Semiconductors is an RF Power Field-Effect Transistor.
RF Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for A3T21H360W23SR6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC8952
|
Newark | Airfast Rf Power Ldmos Transistor, 2110-2200 Mhz, 56 W Avg., 28 V/ Reel Rohs Compliant: Yes |Nxp A3T21H360W23SR6 RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$65.1700 | Buy Now |
|
DISTI #
A3T21H360W23SR6
|
Avnet Americas | RF Power Lateral MOSFET N-Channel Enhancement Mode LDMOS Transistor 28 V 600 mA 56 W 4-Pin ACP-1230S T/R - Tape and Reel (Alt: A3T21H360W23SR6) RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$57.5267 / $61.5994 | Buy Now |
Part Details for A3T21H360W23SR6

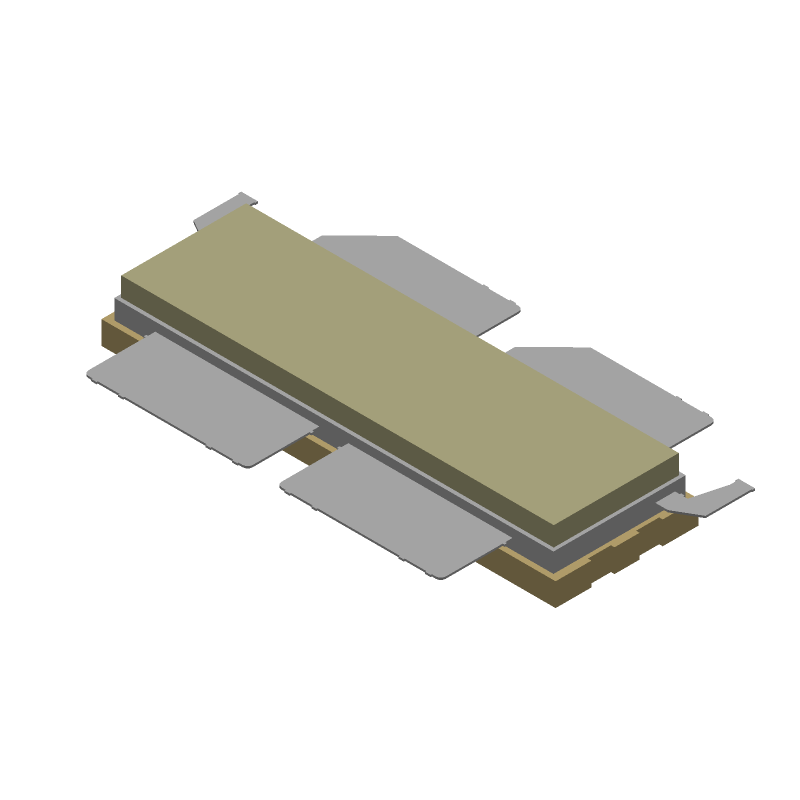

A3T21H360W23SR6 CAD Models
A3T21H360W23SR6 Part Data Attributes
|
|
A3T21H360W23SR6
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
A3T21H360W23SR6
NXP Semiconductors
RF Power Field-Effect Transistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | NXP | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
