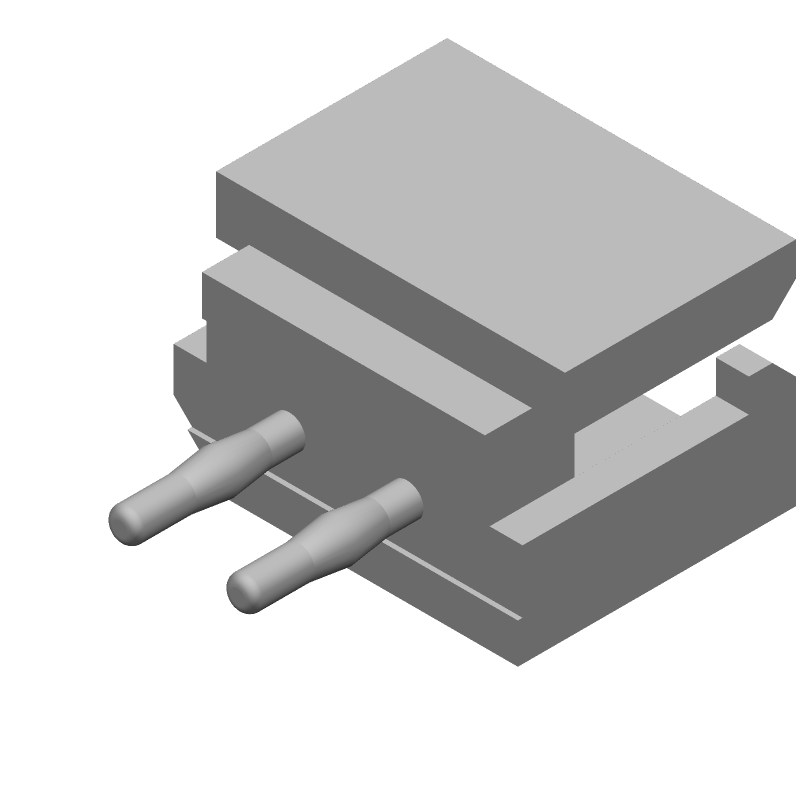

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 99-99-0986 by Molex
Results Overview of 99-99-0986 by Molex
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
99-99-0986 Information
99-99-0986 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 99-99-0986
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH1869
|
Newark | Connector, Header, 2Pos, 1Row, 2.5Mm, Connector Systems:Signal, Pitch Spacing:2.5Mm, No. Of Rows:1Rows, No. Of Contacts:2Contacts, Contact Termination Type:Through Hole Straight, Product Range:Mini-Spox 5267 Series Rohs Compliant: Yes |Molex 99-99-0986 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2 |
|
$0.0390 | Buy Now |
|
DISTI #
01AH1869
|
Avnet Americas | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Bag - Bulk (Alt: 01AH1869) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Bulk | 2 Partner Stock |
|
$0.2390 / $0.3450 | Buy Now |
|
DISTI #
0099990986
|
Avnet Americas | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Bag - Bulk (Alt: 0099990986) RoHS: Compliant Min Qty: 24000 Package Multiple: 24000 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0818 / $0.0888 | Buy Now |
|
DISTI #
538-99-99-0986
|
Mouser Electronics | Headers & Wire Housings 2CKT VERT SHRD HDR RoHS: Compliant | 3907 |
|
$0.1040 / $0.2200 | Buy Now |
|
|
Onlinecomponents.com | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole SPOX™ Bag RoHS: Compliant |
333180 In Stock |
|
$0.0950 / $0.1188 | Buy Now |
|
|
Bristol Electronics | Min Qty: 10 | 5095 |
|
$0.0788 / $0.5250 | Buy Now |
|
|
Bristol Electronics | 5000 |
|
RFQ | ||
|
DISTI #
99-99-0986
|
TTI | Headers & Wire Housings 2CKT VERT SHRD HDR RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Bulk |
Americas - 16220 In Stock |
|
Buy Now | |
|
|
Master Electronics | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole SPOX™ Bag RoHS: Compliant |
333180 In Stock |
|
$0.0950 / $0.1188 | Buy Now |
Part Details for 99-99-0986
99-99-0986 CAD Models
99-99-0986 Part Data Attributes
|
|
99-99-0986
Molex
Buy Now
Datasheet
|
Compare Parts:
99-99-0986
Molex
Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 19 Weeks | |
| Samacsys Manufacturer | Molex | |
| Additional Feature | SPOX, POLARIZED, SHROUDED | |
| Body Breadth | 0.193 inch | |
| Body Depth | 0.232 inch | |
| Body Length | 0.291 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 1400VAC V | |
| Durability | 30 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED POLYAMIDE | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.098 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Length | 0.138 inch | |
| Terminal Pitch | 2.5 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for 99-99-0986
This table gives cross-reference parts and alternative options found for 99-99-0986. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 99-99-0986, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2-92008-2 | TE's AMP | Check for Price | 2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 99-99-0986 vs 2-92008-2 |
99-99-0986 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
-
Yes, the 99990986 connector is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
-
The operating temperature range for the 99990986 connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 99990986 connector meets the requirements of IATF 16949 and is suitable for use in automotive applications.
-
Yes, the 99990986 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, and meets the requirements of IP67 and IP69K.
