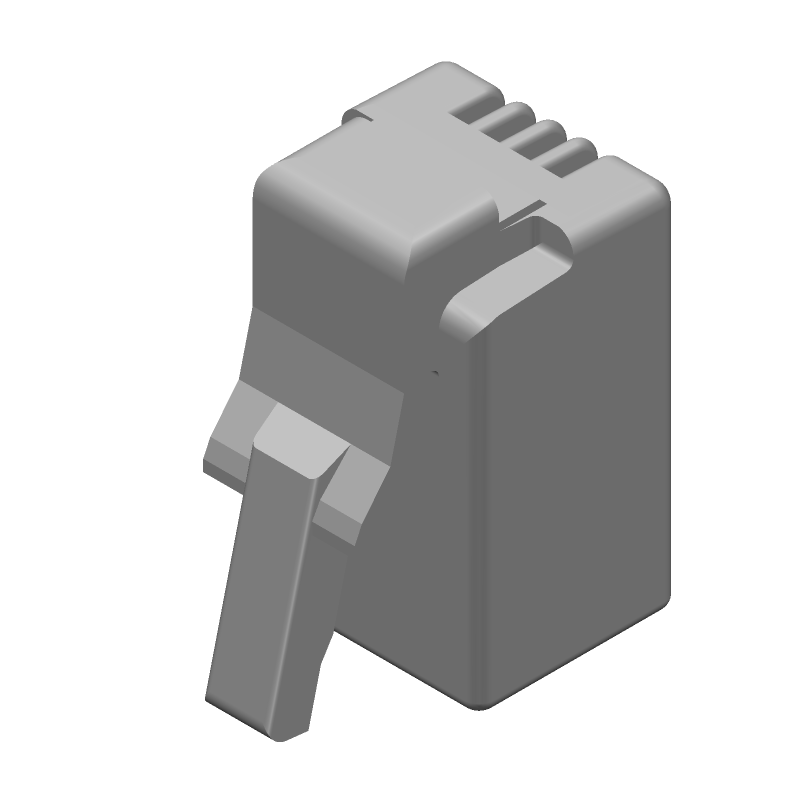

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 940-SP-3044 by Bel Fuse
Results Overview of 940-SP-3044 by Bel Fuse
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
940-SP-3044 Information
940-SP-3044 by Bel Fuse is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 940-SP-3044
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AC3226
|
Avnet Americas | CONN TEL/TELC PL 4 POS 1.02MM CRMP ST CBL MNT 4TERM - Bulk (Alt: 56AC3226) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 3 Days Container: Bulk | 11593 Partner Stock |
|
$0.2400 / $0.3660 | Buy Now |
|
DISTI #
940-SP-3044
|
Avnet Americas | CONN TEL/TELC PL 4 POS 1.02MM CRMP ST CBL MNT 4TERM - Bulk (Alt: 940-SP-3044) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1205 | Buy Now |
|
DISTI #
87349169
|
Verical | Conn Telephone/Telecom PL 4 POS 1.02mm Crimp ST Cable Mount 4 Terminal 1 Port Bulk RoHS: Compliant Min Qty: 221 Package Multiple: 1 | Americas - 1326 |
|
$0.2660 / $0.3178 | Buy Now |
|
DISTI #
940-SP-3044
|
TME | Connector: RJ9, plug, PIN: 4, Layout: 4p4c, for cable, IDC,crimped Min Qty: 1 | 680 |
|
$0.1680 / $0.3000 | Buy Now |
|
DISTI #
SS-30400-012
|
Avnet Abacus | CONN TELTELC PL 4 POS 102MM CRMP ST CBL MNT 4TERM (Alt: SS-30400-012) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 24 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for 940-SP-3044
940-SP-3044 CAD Models
940-SP-3044 Part Data Attributes
|
|
940-SP-3044
Bel Fuse
Buy Now
Datasheet
|
Compare Parts:
940-SP-3044
Bel Fuse
Telecom and Datacom Connector, 4 Contact(s), Male, Straight, IDC Terminal, Plug, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BEL FUSE INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | BelFuse | |
| Additional Feature | UNSHIELDED | |
| Body Breadth | 0.294 inch | |
| Body Depth | 0.525 inch | |
| Body Length | 0.3 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | TELECOM AND DATACOM CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Style | TELCOM, MODULAR | |
| DIN Conformance | NO | |
| Durability | 750 Cycles | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | CLEAR | |
| Insulator Material | POLYCARBONATE | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | CABLE | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Plating Thickness | 50u inch | |
| Reference Standard | UL | |
| Termination Type | IDC | |
| Total Number of Contacts | 4 | |
| UL Flammability Code | 94V-0 |
940-SP-3044 Frequently Asked Questions (FAQ)
-
Bel Fuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
-
The 940-SP-3044 is designed to provide excellent high-frequency noise attenuation and EMI filtering. However, the effectiveness of noise suppression depends on the specific application, PCB layout, and system design. Engineers should consider additional noise reduction techniques, such as shielding, grounding, and filtering, to ensure optimal performance.
-
While the datasheet provides a recommended operating temperature range, engineers should note that the 940-SP-3044 can operate safely up to 125°C, but with derated performance. It's essential to consider the specific application's thermal requirements and ensure proper heat sinking and cooling mechanisms are in place.
-
Yes, the 940-SP-3044 is designed to meet the requirements of high-reliability and safety-critical applications. However, engineers should ensure that the component is properly qualified, tested, and validated for their specific application, and that all necessary safety and reliability certifications are obtained.
-
Lead times and availability can vary depending on the region, distributor, and quantity required. Engineers should check with authorized distributors or Bel Fuse directly for the most up-to-date information on lead times and availability.
