Memory / EEPROMs / 93LC46C-I/MS
Datasheets
93LC46C-I/MS by: Microchip Technology Inc

64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8

Part Details for 93LC46C-I/MS by Microchip Technology Inc

Results Overview of 93LC46C-I/MS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

93LC46C-I/MS Information

93LC46C-I/MS by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 93LC46C-I/MS

Part # Distributor Description Stock Price Buy
DISTI # 30H4710
Newark Serial Eeprom, 1Kbit, 3Mhz, Msop-8, Memory Configuration:128 X 8Bit/64 X 16Bit, Interfaces:Microwire, Clock Frequency Max:3Mhz, Ic Case/Package:Msop, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Microchip 93LC46C-I/MS RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $0.3500
$0.3500 Buy Now
DISTI # 93LC46C-I/MS-ND
DigiKey IC EEPROM 1KBIT MICROWIRE 8MSOP Min Qty: 1 Lead time: 4 Weeks Container: Tube 647
In Stock
  • 1 $0.3800
  • 25 $0.3708
  • 100 $0.3605
$0.3605 / $0.3800 Buy Now
DISTI # 93LC46C-I/MS
Avnet Americas EEPROM Serial-Microwire 1K-bit 128 x 8/64 x 16 3.3V/5V 8-Pin MSOP Tube - Rail/Tube (Alt: 93LC46C-I/MS) RoHS: Compliant Min Qty: 1600 Package Multiple: 100 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 1,000 $0.2117
  • 1,200 $0.2038
  • 2,200 $0.1959
  • 5,000 $0.1880
  • 10,000 $0.1801
$0.1801 / $0.2117 Buy Now
DISTI # 579-93LC46C-I/MS
Mouser Electronics EEPROM 128x8 Or 64x16 RoHS: Compliant 479
  • 1 $0.3700
  • 25 $0.3600
  • 100 $0.3500
$0.3500 / $0.3700 Buy Now
DISTI # V99:2348_06428569
Arrow Electronics EEPROM Serial-Microwire 1K-bit 128 x 8/64 x 16 3.3V/5V 8-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 1520 Americas - 360
  • 0 $0.3344
  • 1 $0.0636
$0.0636 / $0.3344 Buy Now
DISTI # 93LC46C-I/MS
Microchip Technology Inc 1K, 128 X 8 OR 64 X 16 SERIAL EE, 1.8V, MSOP, Projected EOL: 2034-05-27 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 26105
  • 1 $0.3700
  • 25 $0.3600
  • 100 $0.3500
  • 1,000 $0.3400
  • 5,000 $0.3000
$0.3000 / $0.3700 Buy Now
DISTI # 70046007
RS 1K, 128 X 8 OR 64 X 16 SERIAL EE, IND Min Qty: 1000 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,000 $0.6600
  • 10,000 $0.6300
  • 50,000 $0.6000
  • 100,000 $0.5600
$0.5600 / $0.6600 RFQ
Onlinecomponents.com   RoHS: Compliant 26100 Factory Stock
  • 100 $0.3881
  • 500 $0.3562
  • 1,000 $0.3508
  • 2,500 $0.3377
  • 5,000 $0.3291
  • 7,500 $0.3242
  • 10,000 $0.3193
  • 15,000 $0.3145
$0.3145 / $0.3881 Buy Now
DISTI # 25847524
Verical EEPROM Serial-Microwire 1K-bit 128 x 8/64 x 16 3.3V/5V 8-Pin MSOP Tube RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 1520 Americas - 360
  • 18 $0.3344
$0.3344 Buy Now
Bristol Electronics   622
RFQ
Quest Components   497
  • 1 $1.2000
  • 84 $0.6000
  • 334 $0.4800
$0.4800 / $1.2000 Buy Now
Quest Components   48
  • 1 $0.8400
  • 7 $0.6720
  • 31 $0.4200
$0.4200 / $0.8400 Buy Now
DISTI # 93LC46C-I/MS
TME IC: EEPROM memory, 1kbEEPROM, Microwire, 128x8/64x16bit, 2.5÷5.5V Min Qty: 3 0
  • 3 $0.4800
  • 10 $0.4200
  • 25 $0.3900
  • 100 $0.3700
$0.3700 / $0.4800 RFQ
NAC 1K, 128 X 8 OR 64 X 16 SERIAL EE, IND - Package: 8 MSOP 3x3mm TUBE RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Container: Tube 0
  • 1 $0.4000
  • 100 $0.3600
  • 500 $0.3300
  • 1,000 $0.3300
$0.3300 / $0.4000 Buy Now
DISTI # 93LC46C-I/MS
Avnet Silica EEPROM SerialMicrowire 1Kbit 128 x 864 x 16 33V5V 8Pin MSOP Tube (Alt: 93LC46C-I/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 93LC46C-I/MS
EBV Elektronik EEPROM SerialMicrowire 1Kbit 128 x 864 x 16 33V5V 8Pin MSOP Tube (Alt: 93LC46C-I/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics   RoHS: Compliant 26100 Factory Stock
  • 100 $0.3881
  • 500 $0.3562
  • 1,000 $0.3508
  • 2,500 $0.3377
  • 5,000 $0.3291
  • 7,500 $0.3242
  • 10,000 $0.3193
  • 15,000 $0.3145
$0.3145 / $0.3881 Buy Now

Part Details for 93LC46C-I/MS

93LC46C-I/MS CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

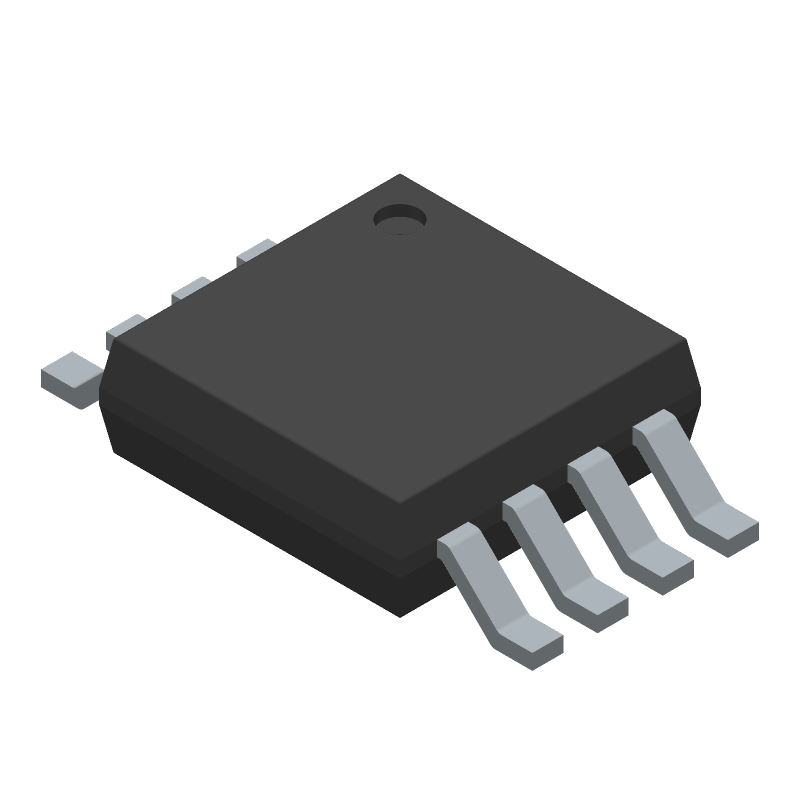

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

93LC46C-I/MS Part Data Attributes

Parametric Data
93LC46C-I/MS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
93LC46C-I/MS Microchip Technology Inc 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code MSOP
Package Description ROHS COMPLIANT, PLASTIC, MSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Alternate Memory Width 8
Clock Frequency-Max (fCLK) 3 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Memory Density 1024 bit
Memory IC Type EEPROM
Memory Width 16
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 64 words
Number of Words Code 64
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 64X16
Output Characteristics TOTEM POLE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Ready/Busy YES
Reverse Pinout NO
Screening Level TS 16949
Seated Height-Max 1.1 mm
Serial Bus Type MICROWIRE
Standby Current-Max 0.000001 A
Supply Current-Max 0.002 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.5 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm
Write Cycle Time-Max (tWC) 6 ms
Write Protection SOFTWARE

Alternate Parts for 93LC46C-I/MS

This table gives cross-reference parts and alternative options found for 93LC46C-I/MS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 93LC46C-I/MS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
93LC46C-E/MS Microchip Technology Inc $0.5330 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8 93LC46C-I/MS vs 93LC46C-E/MS
93LC46CT-E/MS Microchip Technology Inc $0.5330 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8 93LC46C-I/MS vs 93LC46CT-E/MS
93LC46C-TI/MSG Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, LEAD FREE, PLASTIC, MO-187, MSOP-8 93LC46C-I/MS vs 93LC46C-TI/MSG
93LC46C-TE/MS Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, LEAD FREE, PLASTIC, MO-187, MSOP-8 93LC46C-I/MS vs 93LC46C-TE/MS
93LC46C-E/MSG Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8 93LC46C-I/MS vs 93LC46C-E/MSG
93LC46C-TI/MSX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, LEAD FREE, PLASTIC, MO-187, MSOP-8 93LC46C-I/MS vs 93LC46C-TI/MSX
93LC46C-I/MSX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8 93LC46C-I/MS vs 93LC46C-I/MSX
93LC46C-I/MSGX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, LEAD FREE, PLASTIC, MO-187, MSOP-8 93LC46C-I/MS vs 93LC46C-I/MSGX
93LC46CT-E/MSG Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8 93LC46C-I/MS vs 93LC46CT-E/MSG
Part Number Manufacturer Composite Price Description Compare
93LC46CT-E/SN Microchip Technology Inc $0.4700 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 93LC46C-I/MS vs 93LC46CT-E/SN
93LC46C-TI/MSGX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, LEAD FREE, PLASTIC, MO-187, MSOP-8 93LC46C-I/MS vs 93LC46C-TI/MSGX
93LC46C-E/MCX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 93LC46C-I/MS vs 93LC46C-E/MCX
93LC46CX-I/SNX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, SOIC-8 93LC46C-I/MS vs 93LC46CX-I/SNX
93LC46C-I/STG Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 93LC46C-I/MS vs 93LC46C-I/STG
93LC46CXT-E/MC Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 93LC46C-I/MS vs 93LC46CXT-E/MC
93LC46CX-E/MC Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 93LC46C-I/MS vs 93LC46CX-E/MC
93LC46CXT-I/ST Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 93LC46C-I/MS vs 93LC46CXT-I/ST
93LC46C-TI/MCGX Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, MO-229, DFN-8 93LC46C-I/MS vs 93LC46C-TI/MCGX
93LC46CX-I/SNG Microchip Technology Inc Check for Price 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 93LC46C-I/MS vs 93LC46CX-I/SNG

93LC46C-I/MS Related Parts

93LC46C-I/MS Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the 93LC46C-I/MS is 3.2 MHz.

  • Yes, the 93LC46C-I/MS is compatible with 5V systems, but it can also operate at lower voltages down to 2.5V.

  • The 93LC46C-I/MS does not require any special initialization sequence. It is ready to use after power-up, and the internal registers are reset to their default values.

  • The 93LC46C-I/MS has an endurance of 100,000 erase/write cycles per byte.

  • The 93LC46C-I/MS is rated for operation up to 125°C, but it's recommended to derate the operating temperature to ensure reliable operation.
