90122-0768 by: Molex

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Part Details for 90122-0768 by Molex

Results Overview of 90122-0768 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

90122-0768 Information

90122-0768 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 90122-0768

Part # Distributor Description Stock Price Buy
DISTI # 9733736
Farnell CONNECTOR, HEADER, 16POS, 2ROW, 2.54MM RoHS: Compliant Min Qty: 1 Lead time: 19 Weeks, 1 Days Container: Each 699
  • 1 $3.4350
  • 10 $3.3404
  • 100 $3.2322
  • 250 $3.1375
  • 500 $3.0293
  • 1,000 $2.9752
$2.9752 / $3.4350 Buy Now
DISTI # 4238814
Farnell CONN, R/A HEADER, 16POS, 2ROW, 2.54MM RoHS: Compliant Min Qty: 60 Lead time: 1 Weeks, 2 Days Container: Each 227
  • 60 $3.6379
  • 180 $3.5703
$3.5703 / $3.6379 Buy Now
DISTI # 0901220768
Avnet Americas Pin Header, Right Angle, Signal, 2.54 mm, 2 Rows, 16 Contacts, Through Hole Right Angle - Trays (Alt: 0901220768) RoHS: Compliant Min Qty: 2700 Package Multiple: 900 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 2,700 $2.8990
  • 4,500 $2.8488
  • 7,200 $2.8026
  • 13,500 $2.4130
  • 27,000 $2.3162
$2.3162 / $2.8990 Buy Now
DISTI # 538-90122-0768
Mouser Electronics Headers & Wire Housings 16P DR/RA HEADER RoHS: Compliant 712
  • 1 $3.9600
  • 10 $3.6100
  • 100 $3.3700
  • 300 $3.0000
  • 1,200 $2.8200
$2.8200 / $3.9600 Buy Now
Onlinecomponents.com Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole C-Grid III™ Tray RoHS: Compliant 0
  • 25 $2.9800
  • 150 $2.9100
  • 250 $2.8600
  • 450 $2.8100
  • 2,700 $2.7700
  • 5,000 $2.4900
  • 10,000 $2.3800
$2.3800 / $2.9800 Buy Now
DISTI # MX-90122-0768
TME connector 90122-0768 Min Qty: 1 0
  • 1 $2.4100
  • 100 $1.5100
  • 250 $1.4500
  • 300 $1.4300
  • 500 $1.4000
  • 900 $1.3600
  • 1,000 $1.3500
  • 5,000 $1.2800
$1.2800 / $2.4100 RFQ
DISTI # 90122-0768
IBS Electronics CONN UNSHROUDED HEADER HDR 16 POS 2.54MM SOLDER RA THRU-HOLE C-GRID III&#x2122, FRAME Min Qty: 40 Package Multiple: 1 453
  • 40 $3.4000
  • 100 $3.3375
  • 250 $2.9875
  • 450 $3.2250
  • 2,700 $3.1625
  • 8,000 $2.7750
  • 20,000 $2.7000
$2.7000 / $3.4000 Buy Now
Vyrian Connectors 285
RFQ

Part Details for 90122-0768

90122-0768 CAD Models

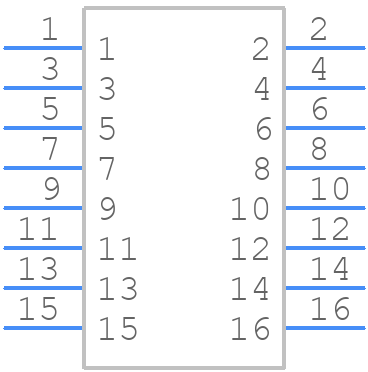

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

90122-0768 Part Data Attributes

Parametric Data
90122-0768 Molex
Buy Now Datasheet
Compare Parts:
90122-0768 Molex Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Schedule B Code 8536.69.40.40
Factory Lead Time 12 Weeks
Samacsys Description Headers & Wire Housings 16P DR/RA HEADER
Samacsys Manufacturer Molex
Samacsys Modified On 2023-03-07 16:10:32
Category CO2 Kg 3.7
Compliance Temperature Grade Military: -55C to +125C
EU RoHS Version RoHS 2 (2015/863/EU)
Candidate List Date 2024-11-07
EFUP e
Conflict Mineral Status DRC Conflict Free
Conflict Mineral Status Source CMRT V6.40
Qualifications UL
Additional Feature C-GRID III
Body Breadth 0.243 inch
Body Depth 0.267 inch
Body Length 0.8 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 350VDC V
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .973 N
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 15u inch
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Length 0.114 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 16
UL Flammability Code 94V-0
Withdrawl Force-Min .1946 N

Alternate Parts for 90122-0768

This table gives cross-reference parts and alternative options found for 90122-0768. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 90122-0768, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
90122-0128 Molex $0.2609 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, 90122-0768 vs 90122-0128
10-89-4162 Molex $1.0000 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle, 90122-0768 vs 10-89-4162
1-1470108-6 TE Connectivity $1.0091 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle 90122-0768 vs 1-1470108-6
90130-3116 Molex $1.2090 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, 90122-0768 vs 90130-3116
TLW-108-01-T-D-RA Samtec Inc $1.8555 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 90122-0768 vs TLW-108-01-T-D-RA
5-103165-4 TE Connectivity $14.0550 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle 90122-0768 vs 5-103165-4
90122-0928 Molex $3.0344 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, 90122-0768 vs 90122-0928
TLW-108-01-G-D-RA Samtec Inc $3.2702 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 90122-0768 vs TLW-108-01-G-D-RA
5-104319-1 TE Connectivity $4.2200 Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle 90122-0768 vs 5-104319-1
103167-5 TE Connectivity $6.0140 16 MODII HDR DRRA SHRD .100CL 90122-0768 vs 103167-5

90122-0768 Related Parts

90122-0768 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).

  • Yes, the 90122-0768 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.

  • The connector is rated for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and UV exposure.

  • The maximum wire size that can be used with the 90122-0768 is 18 AWG (1.0 mm²).

  • The connector is designed for use with PVC-insulated wires, but it can be used with other insulation materials such as Teflon or silicone, as long as the wire meets the specified dimensions and requirements.
