89898-308ALF Information
89898-308ALF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 89898-308ALF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH5373
|
Newark | Connector, Rcpt, 16Pos, 2Row, 2.54Mm Rohs Compliant: Yes |Amphenol Communications Solutions 89898-308ALF RoHS: Compliant Min Qty: 650 Package Multiple: 1 Date Code: 0 Container: Reel | 650 |
|
$0.9850 / $1.1100 | Buy Now |
|
DISTI #
93AH0708
|
Newark | Connector, Rcpt, 16Pos, 2Row, 2.54Mm Rohs Compliant: Yes |Amphenol Communications Solutions 89898-308ALF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 51 |
|
$1.3100 / $1.7800 | Buy Now |
|
DISTI #
63K1202
|
Newark | Board-Board Connector Receptacle, 16 Position, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:16Contacts, Connector Mounting:Surface Mount, Product Range:Fci Dubox 89898 Series Rohs Compliant: Yes |Amphenol Communications Solutions 89898-308ALF RoHS: Compliant Min Qty: 650 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.8530 / $0.9130 | Buy Now |
|
|
Onlinecomponents.com | Rectangular Connector - Receptacle - Female Socket - Bottom or Top Entry - 16 Position - 2 Rows - 0.100" Pitch - Solder Term. - Surface Mount - T&R. RoHS: Compliant |
4810 In Stock |
|
$0.8710 / $1.1230 | Buy Now |
|
DISTI #
89898-308ALF/C
|
TME | Connector: PCB to PCB, socket, female, Dubox®, 2.54mm, PIN: 16, SMT Min Qty: 1 | 142 |
|
$0.7900 / $1.5200 | Buy Now |
|
DISTI #
89898-308ALF
|
IBS Electronics | 89898-308ALF by AMPHENOL ICC / FCI is a high-performance connector, designed for reliable data transmission, featuring a robust build, suitable for various electronic applications. Min Qty: 1 Package Multiple: 1 | 260 |
|
$1.1323 / $1.4599 | Buy Now |
|
DISTI #
89898-308ALF
|
IBS Electronics | 2.54MM 2.54MM TIN DOUBLE ROW 16P STANDING PASTE 6.99MM FEMALE HEADERS ROHS Min Qty: 650 Package Multiple: 1 | 0 |
|
$1.4430 / $1.4560 | Buy Now |
|
DISTI #
CONN15936
|
Rutronik | 16P BOX HEADER 2,54MM STR FEMALE SMT RoHS: Compliant Min Qty: 650 Package Multiple: 650 Container: Reel |
Stock DE - 650 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.8100 | Buy Now |
|
|
LCSC | 2.54mm 2.54mm Tin Double Row 16P Vertical welding 6.99mm SMDP2.54mm Female Headers ROHS | 36 |
|
$1.1675 / $2.0568 | Buy Now |
|
|
Master Electronics | Rectangular Connector - Receptacle - Female Socket - Bottom or Top Entry - 16 Position - 2 Rows - 0.100" Pitch - Solder Term. - Surface Mount - T&R. RoHS: Compliant |
4810 In Stock |
|
$0.8710 / $1.1230 | Buy Now |
Part Details for 89898-308ALF

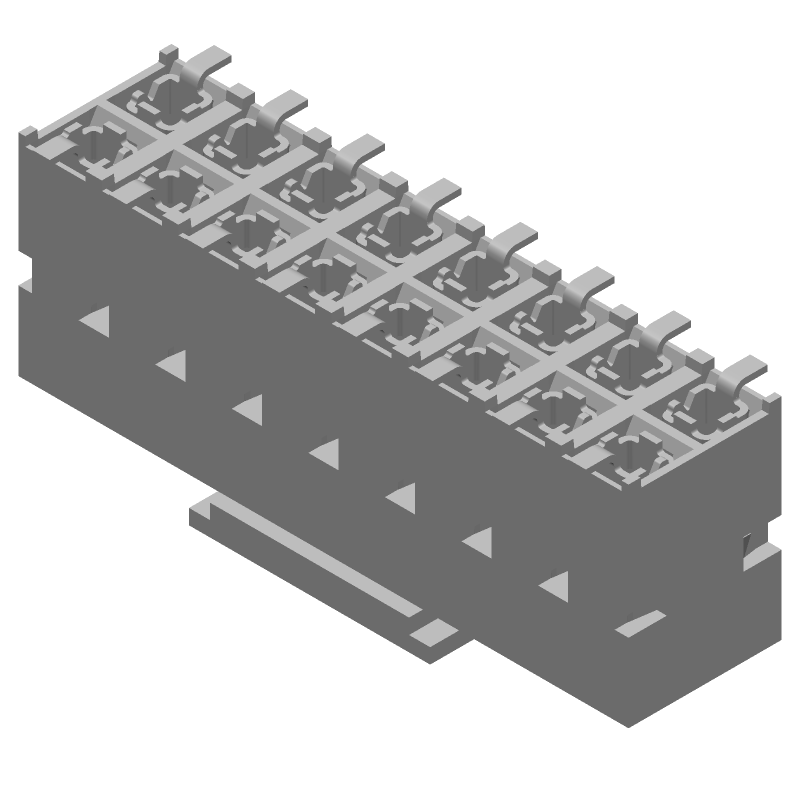

89898-308ALF CAD Models
89898-308ALF Part Data Attributes
|
|
89898-308ALF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
89898-308ALF
Amphenol Communications Solutions
Dubox®, Board to Board connector, 2.54mm (0.100in), Receptacle, Vertical, Surface Mount, Double Row, 16 positions
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | ROHS COMPLIANT | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Additional Feature | ROHS COMPLIANT, TAPE PACKAGING | |
| Body Breadth | 0.2 inch | |
| Body Depth | 0.283 inch | |
| Body Length | 0.397 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (30) | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | FEMALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 1400VAC V | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 1.4734 N | |
| Insulation Resistance | 100000000000 Ω | |
| Insulator Color | GRAY | |
| Insulator Material | GLASS FILLED POLYETHYLENE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 30u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 16 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .29746 N |
Alternate Parts for 89898-308ALF
This table gives cross-reference parts and alternative options found for 89898-308ALF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 89898-308ALF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 89898-308A | Amphenol FCi | Check for Price | Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Gray Insulator, Receptacle | 89898-308ALF vs 89898-308A |
