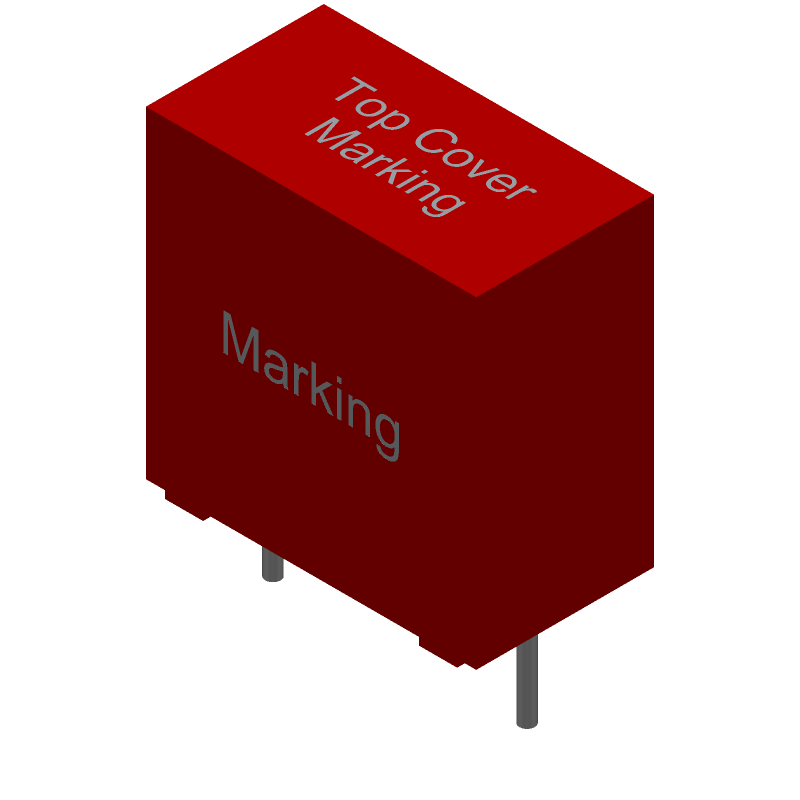

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 890324023023 by Wurth Elektronik
Results Overview of 890324023023 by Wurth Elektronik
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Electronic Manufacturing
Entertainment and Gaming
890324023023 Information
890324023023 by Wurth Elektronik is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 890324023023
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y6535
|
Newark | Film Capacitor, Wcap-Ftx2 Series, 0.1 F, 10%, Pp (Polypropylene), 275 Vac Rohs Compliant: Yes |Wurth Elektronik 890324023023 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 173 |
|
$0.4430 / $0.6350 | Buy Now |
|
DISTI #
732-5883-ND
|
DigiKey | CAP FILM 0.1UF 10% 275VAC RADIAL Min Qty: 1 Lead time: 32 Weeks Container: Bulk |
935 In Stock |
|
$0.2151 / $0.3900 | Buy Now |
|
DISTI #
710-890324023023
|
Mouser Electronics | Safety Capacitors WCAP-FTX2 20mm Lead 0.1uF 10% 275VAC RoHS: Compliant | 404 |
|
$0.2380 / $0.4300 | Buy Now |
Part Details for 890324023023
890324023023 CAD Models
890324023023 Part Data Attributes
|
|
890324023023
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
890324023023
Wurth Elektronik
WCAP-FTX2 Film Capacitors
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.80 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Additional Feature | SAFETY CLASS: X2 | |
| Capacitance | 0.1 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 13 mm | |
| Length | 13 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 275 V | |
| Rated (DC) Voltage (URdc) | 630 V | |
| Surface Mount | NO | |
| Terminal Pitch | 10 mm | |
| Terminal Shape | WIRE | |
| Width | 7 mm |
890324023023 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint can be found in the Wurth Elektronik's 'Layout Recommendations' document, which provides a detailed layout guide for the component.
-
To ensure high-frequency performance, follow the layout recommendations, use a solid ground plane, and minimize the length of the signal traces connected to the component.
-
The maximum operating temperature range for the 890324023023 is -40°C to +125°C, as specified in the datasheet.
-
Yes, the component is designed to withstand high vibrations. However, it's essential to follow the recommended mounting and soldering guidelines to ensure reliable operation.
-
Handle the component in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures to prevent ESD damage.
