87520-1010ALF Information
87520-1010ALF by Amphenol Communications Solutions is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 87520-1010ALF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27AJ4023
|
Newark | Usb, 2.0 Type A, R/A Rcpt, 4Pos, Th, Usb Connector Type:Usb Type A, Usb Standard:Usb 2.0, Gender:Receptacle, No. Of Positions:4Positions, Connector Mounting:Through Hole Mount, Orientation:Right Angle, Contact Material:Copper Alloy Rohs Compliant: Yes |Amphenol Communications Solutions 87520-1010ALF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2818 |
|
$0.2920 | Buy Now |
|
DISTI #
30AK3893
|
Newark | Usb Conn, 2.0 Type A, R/A Rcpt, 4P Rohs Compliant: Yes |Amphenol Communications Solutions 87520-1010ALF RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel | 750 |
|
$0.7320 / $0.8010 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
3000 Partner Stock |
|
$0.4294 / $0.5290 | Buy Now |
|
DISTI #
87520-1010ALF
|
IBS Electronics | USB CONNECTOR USB TYPE A USB 2.0 RECEPTACLE 4 WAYS THROUGH HOLE MOUNT RIGHT ANGLE Min Qty: 250 Package Multiple: 1 | 3000 |
|
$0.4625 / $0.7375 | Buy Now |
|
|
Master Electronics | RoHS: Compliant |
3000 Partner Stock |
|
$0.4294 / $0.5290 | Buy Now |
Part Details for 87520-1010ALF

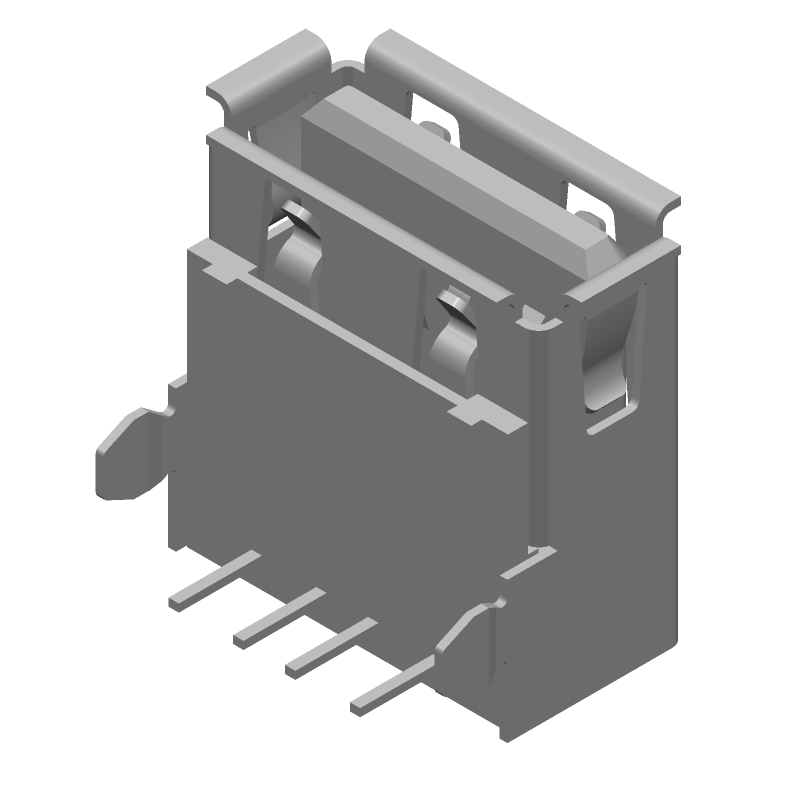

87520-1010ALF CAD Models
87520-1010ALF Part Data Attributes
|
|
87520-1010ALF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
87520-1010ALF
Amphenol Communications Solutions
USB 2.0, Input Output Connector, USB Type A, Standard, Right Angle, Through Hole, Single Decks, 4 Positions
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Board Mounting Option | SPLIT BOARD LOCK | |
| Body Breadth | 0.28 inch | |
| Body Depth | 0.551 inch | |
| Body Length | 0.571 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | USB CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Resistance | 30 mΩ | |
| Contact Style | USB2.0 A | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 750VAC V | |
| Durability | 1500 Cycles | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 35.1392 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYETHYLENE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 30u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 1.5 A | |
| Reference Standard | UL | |
| Shell Finish | TIN/NICKEL | |
| Shell Material | COPPER ALLOY | |
| Terminal Length | 0.11 inch | |
| Terminal Pitch | 2 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 4 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 10.2304 N |
Alternate Parts for 87520-1010ALF
This table gives cross-reference parts and alternative options found for 87520-1010ALF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 87520-1010ALF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 87520-0010BSLF | Amphenol FCi | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle | 87520-1010ALF vs 87520-0010BSLF |
| 87520-4010BBLF | Amphenol Communications Solutions | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle, | 87520-1010ALF vs 87520-4010BBLF |
| 87520-7012ABLF | Amphenol Communications Solutions | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle, | 87520-1010ALF vs 87520-7012ABLF |
| 87520-0010ALF | Amphenol FCi | Check for Price | Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE | 87520-1010ALF vs 87520-0010ALF |
| 87520-2010BSLF | Amphenol FCi | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle | 87520-1010ALF vs 87520-2010BSLF |
| 87520-1012BPBLF | Amphenol FCi | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle | 87520-1010ALF vs 87520-1012BPBLF |
| 87520-4010AP | Amphenol FCi | Check for Price | Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Receptacle | 87520-1010ALF vs 87520-4010AP |
| 87520-2012ABLF | Amphenol FCi | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle | 87520-1010ALF vs 87520-2012ABLF |
| 87520-2010BBLF | Amphenol FCi | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle | 87520-1010ALF vs 87520-2010BBLF |
| 87520-1010APSLF | Amphenol Communications Solutions | Check for Price | USB Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking, Receptacle, | 87520-1010ALF vs 87520-1010APSLF |
87520-1010ALF Frequently Asked Questions (FAQ)
-
The recommended torque for mating and unmating the 87520-1010ALF connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
-
Yes, the 87520-1010ALF connector is designed to support high-speed signals up to 10 Gbps. Its differential pair design and controlled impedance ensure minimal signal degradation and crosstalk.
-
The operating temperature range of the 87520-1010ALF connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
-
Yes, the 87520-1010ALF connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
-
The recommended cleaning method for the 87520-1010ALF connector is to use a soft, dry brush or a lint-free cloth to remove any debris or contaminants. Avoid using harsh chemicals or solvents, as they may damage the connector's materials.
