Connectors / Headers and Edge Type Connectors / 86503-120HLF
Datasheets
86503-120HLF by:

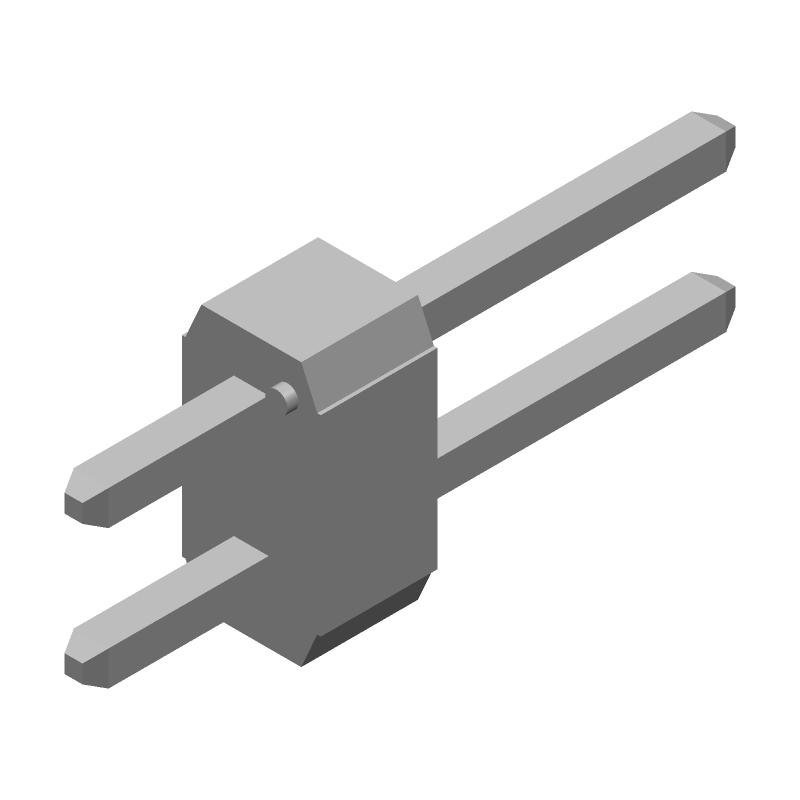

BergStik® 2.54mm, Board to Board connector, Unshrouded Header, Through Hole, Double Row, 20 Positions, 2.54 mm Pitch, Vertical, 6.35 mm (0.25 in.) Mating, 3.05 mm (0.12 in.) Tail.

Part Details for 86503-120HLF by Amphenol Communications Solutions

Results Overview of 86503-120HLF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications Automotive

86503-120HLF Information

86503-120HLF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
78548-120HLF Amphenol Communications Solutions 78548-120HLF-B/S II
60022-120HLF Amphenol Communications Solutions 60022-120HLF-PCN13094 LTB SEP/15/14
78554-120HLF Amphenol Communications Solutions 78554-120HLF-BS SR RA HDR 1X20 RET

Price & Stock for 86503-120HLF

Part # Distributor Description Stock Price Buy
DISTI # 69AC7698
Newark 86503-120Hlf-Bergstik Ii 100Cc Drst/Bag |Amphenol Communications Solutions 86503-120HLF RoHS: Not Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $1.1700
$1.1700 Buy Now

Part Details for 86503-120HLF

86503-120HLF Part Data Attributes

Parametric Data
86503-120HLF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
86503-120HLF Amphenol Communications Solutions BergStik® 2.54mm, Board to Board connector, Unshrouded Header, Through Hole, Double Row, 20 Positions, 2.54 mm Pitch, Vertical, 6.35 mm (0.25 in.) Mating, 3.05 mm (0.12 in.) Tail.
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Pin Count 20
Reach Compliance Code unknown
Samacsys Manufacturer Amphenol Communications Solutions
Body Breadth 0.19 inch
Body Depth 0.1 inch
Body Length 1 inch
Connector Type BOARD CONNECTOR
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 1500VAC V
Filter Feature NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material POLYETHYLENE
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 130 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 30u inch
Rated Current (Signal) 3 A
Reference Standard CSA, UL
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 20
UL Flammability Code 94V-0
