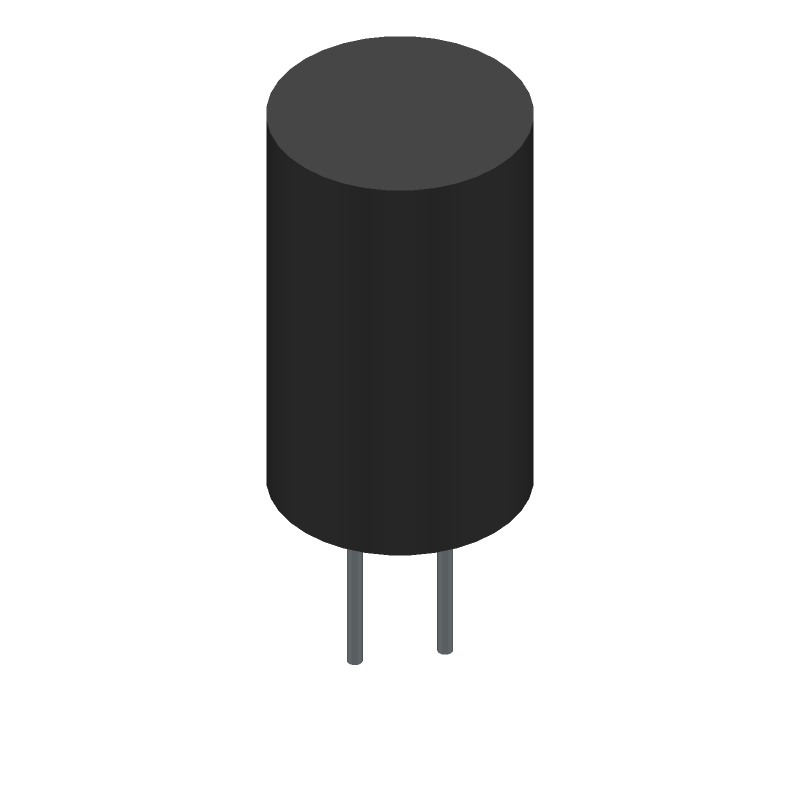

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 860131275004 by Wurth Elektronik
Results Overview of 860131275004 by Wurth Elektronik
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
860131275004 Information
860131275004 by Wurth Elektronik is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 860131275004
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75Y5950
|
Newark | Electrolytic Capacitor, Wcap-Atet Series, 4.7 F, 20%, 350 V, 10 Mm, Radial Leaded Rohs Compliant: Yes |Wurth Elektronik 860131275004 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 95 |
|
$0.3690 / $0.6500 | Buy Now |
|
DISTI #
732-9400-1-ND
|
DigiKey | CAP ALUM 4.7UF 20% 350V RADIAL Min Qty: 1 Lead time: 27 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
285 In Stock |
|
$0.3222 / $0.6500 | Buy Now |
|
DISTI #
710-860131275004
|
Mouser Electronics | Aluminum Electrolytic Capacitors - Radial Leaded WCAP-ATET 4.7uF 350V 20% Radial RoHS: Compliant | 1340 |
|
$0.3690 / $0.6500 | Buy Now |
Part Details for 860131275004
860131275004 CAD Models
860131275004 Part Data Attributes
|
|
860131275004
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
860131275004
Wurth Elektronik
WCAP-ATET Aluminum Electrolytic Capacitors
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Capacitance | 4.7 µF | |
| Capacitor Type | ALUMINIUM ELECTROLITIC CAPACITOR | |
| Diameter | 10 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| Leakage Current | 0.0329 mA | |
| Length | 16 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Style | Radial | |
| Packing Method | AMMO PACK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 350 V | |
| Ripple Current | 68 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.12 | |
| Terminal Pitch | 5 mm | |
| Terminal Shape | WIRE |
