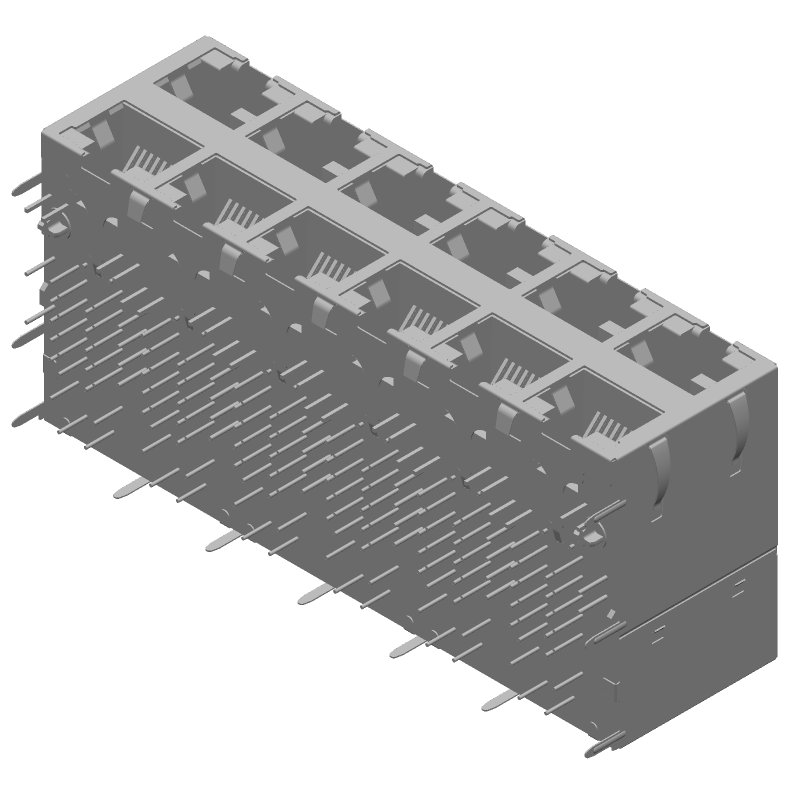

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 85732-1008 by Molex
Results Overview of 85732-1008 by Molex
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
85732-1008 Information
85732-1008 by Molex is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 85732-1008
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42X4366
|
Newark | Conn, Poe+, Jack, 12Port, 8P8C, Cat5/5E, Lan Category:Cat5, Cat5E, Product Range:85732 Series, Connector Type:Pcb Modular Jack, Contact Material:Copper, Contact Plating:Gold Plated Contacts, Contact Termination Type:Through Hole Rohs Compliant: Yes |Molex 85732-1008 RoHS: Compliant Min Qty: 54 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$76.1000 / $84.6800 | Buy Now |
|
DISTI #
17AM9907
|
Newark | Gigabit Magnetic Jack, Enabled Pse Poe+ 2X6, With Leds Left/Green-Yellow And Right/Green-Yellow |Molex 85732-1008 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$80.2900 / $96.0900 | Buy Now |
|
DISTI #
0857321008
|
Avnet Americas | Conn Modular Jack Integrated Magnetics F 96 POS 1.27mm/2.54mm Solder RA Thru-Hole 168 Terminal 12 Port Tray - Trays (Alt: 0857321008) RoHS: Compliant Min Qty: 54 Package Multiple: 54 Lead time: 14 Weeks, 0 Days Container: Tray | 275 |
|
$63.5734 / $74.3653 | Buy Now |
|
DISTI #
538-85732-1008
|
Mouser Electronics | Modular Connectors / Ethernet Connectors Modular Conn/Ethernet Conn GIG PoE+ ENBL RoHS: Compliant | 0 |
|
$67.2600 / $91.7100 | Order Now |
|
|
Onlinecomponents.com | Conn Modular Jack F 96 POS Solder RA Thru-Hole 156 Terminal 12 Port Cat 5/Cat 5e Tray RoHS: Compliant | 0 |
|
$76.6600 / $96.7300 | Buy Now |
|
|
Quest Components | TELECOM AND DATACOM CONNECTOR, 48+48 CONTACT(S), RIGHT ANGLE, SOLDER TERMINAL, LOCKING, JACK | 2 |
|
$114.5985 / $120.6300 | Buy Now |
|
DISTI #
85732-1008
|
TTI | Modular Connectors / Ethernet Connectors Modular Conn/Ethernet Conn GIG PoE+ ENBL Min Qty: 54 Package Multiple: 54 Container: Tray | Americas - 0 |
|
$104.0000 | Buy Now |
|
DISTI #
MOL85732-1008
|
Interstate Connecting Components | MAGJACK GIG POE+ ENABLED C 2X6 LED | 1 |
|
$86.6694 | Buy Now |
|
|
Vyrian | Connectors | 31 |
|
RFQ |
Part Details for 85732-1008
85732-1008 CAD Models
85732-1008 Part Data Attributes
|
|
85732-1008
Molex
Buy Now
Datasheet
|
Compare Parts:
85732-1008
Molex
Telecom and Datacom Connector, 48+48 Contact(s), Right Angle, Solder Terminal, Locking, Jack,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Molex | |
| Body/Shell Style | JACK | |
| Connector Type | RJ CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Material | NOT SPECIFIED | |
| Contact Resistance | 20 mΩ | |
| Contact Style | TELCOM, MODULAR | |
| Durability | 750 Cycles | |
| Insulator Color | BLACK | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number of Ports | 12 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Rated Current (Signal) | 1 A | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 96 |
85732-1008 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
-
Yes, the 85732-1008 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
-
The operating temperature range for the 85732-1008 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 85732-1008 is designed for outdoor use and can withstand exposure to moisture and humidity.
-
No, the 85732-1008 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
