85510-5120 by: Molex

Telecom and Datacom Connector, 8 Contact(s), Straight, Surface Mount Terminal, Locking, Jack,

Part Details for 85510-5120 by Molex

Results Overview of 85510-5120 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Environmental Monitoring Internet of Things (IoT) Space Technology Smart Cities Aerospace and Defense Healthcare Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Robotics and Drones

85510-5120 Information

85510-5120 by Molex is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
85855-104LF Amphenol Communications Solutions 5 Row Signal Header, Straight, Press-Fit, Wide body, 8 Mod
20021512-00010T1LF Amphenol Communications Solutions 1.27mm (0.05in.) pitch, Shrouded header, 10 contacts
10116951-2005LF Amphenol Communications Solutions CXP Passive Copper Cable Assemblies, Passive, 10Gb/s, 30 AWG, 0.5m, non-halogen free

Price & Stock for 85510-5120

Part # Distributor Description Stock Price Buy
DISTI # 33AK0080
Newark Rj45 Connector, Jack, 8P8C, 1Port, Smt, Modular Connector Type:Rj45 Jack, Port Configuration:1 X 1 Port, No. Of Positions/Loaded Contacts (Per Port):8P8C, Lan Category:Cat3, Ip Rating:-, Connector Mounting:Surface Mount, Connector Rohs Compliant: Yes |Molex 85510-5120 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $1.8800
  • 10 $1.4400
  • 25 $1.4100
  • 50 $1.3700
  • 100 $1.3400
$1.3400 / $1.8800 Buy Now
DISTI # 55X4701
Newark Conn, Rj11, Jack, 1Port, 8P8C, Cat3, Modular Connector Type:Rj45 Jack, Port Configuration:1 X 1 (Port), No. Of Positions/Loaded Contacts (Per Port):8P8C, Lan Category:Cat3, Ip Rating:-, Connector Mounting:Surface Mount, Gender:Jackrohs Compliant: Yes |Molex 85510-5120 RoHS: Compliant Min Qty: 1148 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,148 $1.0600
$1.0600 Buy Now
DISTI # 54X7396
Newark Connector, Rj45, Jack, 1Port, 8P8C, Cat3, Modular Connector Type:Rj45 Jack, Port Configuration:1 X 1 (Port), No. Of Positions/Loaded Contacts (Per Port):4P4C, Lan Category:Cat3, Ip Rating:-, Connector Mounting:Surface Mount Rohs Compliant: Yes |Molex 85510-5120 RoHS: Compliant Min Qty: 1148 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 100 $1.2500
$1.2500 Buy Now
DISTI # 85AJ8569
Newark Rj45 Conn, Jack, 4P4C, 1Port, Smt Rohs Compliant: Yes |Molex 85510-5120 RoHS: Compliant Min Qty: 164 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 164 $1.4700
  • 328 $1.4000
  • 656 $1.3700
  • 984 $1.3000
  • 1,640 $1.2600
$1.2600 / $1.4700 Buy Now
DISTI # 0855105120
Avnet Americas Conn RJ-45 F 8 POS 1.02mm Solder ST SMD 8 Terminal 1 Port Embossed T/R - Tape and Reel (Alt: 0855105120) RoHS: Compliant Min Qty: 164 Package Multiple: 164 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 164 $1.1344
  • 328 $1.1126
  • 656 $0.9754
  • 984 $0.9520
  • 1,312 $0.8485
$0.8485 / $1.1344 Buy Now
DISTI # 538-85510-5120
Mouser Electronics Modular Connectors / Ethernet Connectors TOPENT 8/8 SMT JK W/TABS LCP P&P RoHS: Compliant 4580
  • 1 $1.4500
  • 10 $1.1900
  • 25 $1.0300
  • 100 $0.9220
  • 1,148 $0.9030
  • 2,296 $0.8840
  • 4,592 $0.8680
$0.8680 / $1.4500 Buy Now
Onlinecomponents.com Conn RJ-45 F 8 POS 1.27mm Solder ST SMD 8 Terminal 1 Port Cat 3 T/R RoHS: Compliant 0
  • 164 $1.4220
  • 328 $1.3580
  • 656 $1.1710
  • 1,148 $1.1140
  • 2,624 $0.9860
  • 5,084 $0.9070
  • 7,544 $0.8930
  • 10,004 $0.8800
$0.8800 / $1.4220 Buy Now
DISTI # 85510-5120
TTI Modular Connectors / Ethernet Connectors TOPENT 8/8 SMT JK W/TABS LCP P&P RoHS: Compliant pbFree: Pb-Free Min Qty: 164 Package Multiple: 164 Container: Reel Americas - 10004
In Stock
Buy Now
DISTI # MX-85510-5120
TME RJ connector Socket, RJ45, PIN: 8, unshielded Min Qty: 164 0
  • 164 $0.9500
$0.9500 RFQ
DISTI # MOL85510-5120
Interstate Connecting Components TOPENT 8/8 SMT JK W/TABS LCP P&P 1435
  • 164 $1.0995
  • 492 $1.0656
  • 820 $1.0495
  • 1,476 $1.0338
  • 5,740 $1.0338
$1.0338 / $1.0995 Buy Now
Vyrian Connectors 4256
RFQ

Part Details for 85510-5120

85510-5120 Part Data Attributes

Parametric Data
85510-5120 Molex
Buy Now Datasheet
Compare Parts:

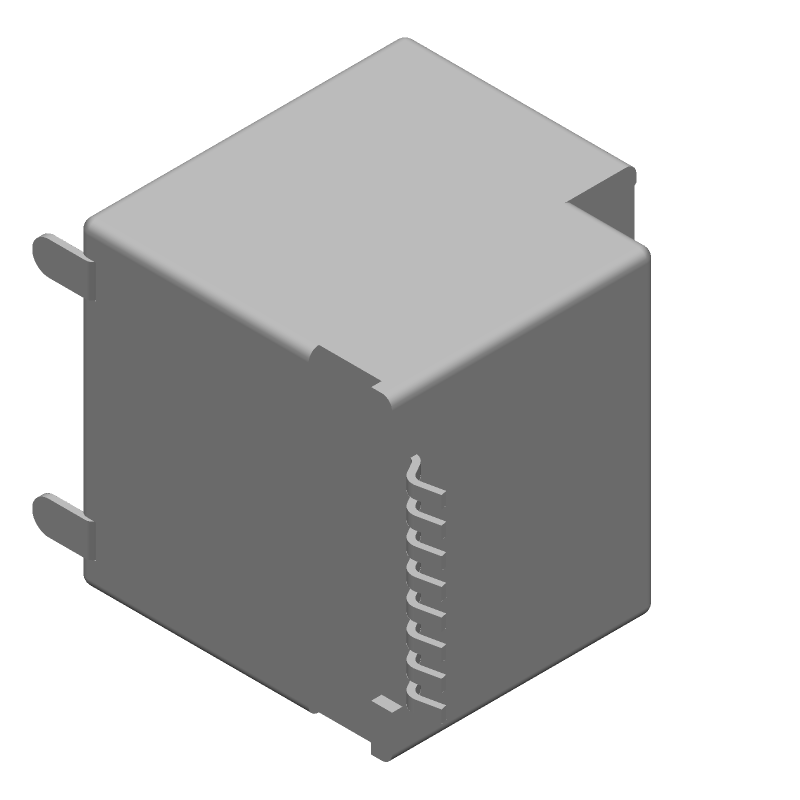

85510-5120 Molex Telecom and Datacom Connector, 8 Contact(s), Straight, Surface Mount Terminal, Locking, Jack,
