200 Position BGA Receptacle, 4mm Component Height, 1.27mm x 1.27mm Array, Lead-free

Part Details for 84517-101LF by Amphenol Communications Solutions

Results Overview of 84517-101LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

84517-101LF Information

84517-101LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
72850-101LF Amphenol Communications Solutions Sofix ® - 72850-101LF Shield
88917-101LF Amphenol Communications Solutions 88917-101LF-GUIDE RECEPTACLE MODULE
88973-101LF Amphenol Communications Solutions 88973-101LF-METRAL HDR HSG 3RX3

Price & Stock for 84517-101LF

Part # Distributor Description Stock Price Buy
DISTI # 20K6343
Newark Conn, Stacking, Rcpt, 200Pos, 10Row, Mezzanine Connector Type:Receptacle, Pitch Spacing:1.27Mm, No. Of Rows:10Rows, No. Of Contacts:200Contacts, Connector Mounting:Surface Mount, Contact Material:Copper, Gender:Receptacle Rohs Compliant: Yes |Amphenol Communications Solutions 84517-101LF RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 65AC3173
Newark Conn, Stacking, Rcpt, 200Pos, 10Row, Mezzanine Connector Type:Receptacle, Pitch Spacing:1.27Mm, No. Of Rows:10Rows, No. Of Contacts:200Contacts, Connector Mounting:Surface Mount, Contact Material:Copper, Gender:Receptacle Rohs Compliant: Yes |Amphenol Communications Solutions 84517-101LF RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
Buy Now

Part Details for 84517-101LF

84517-101LF Part Data Attributes

Parametric Data
84517-101LF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:

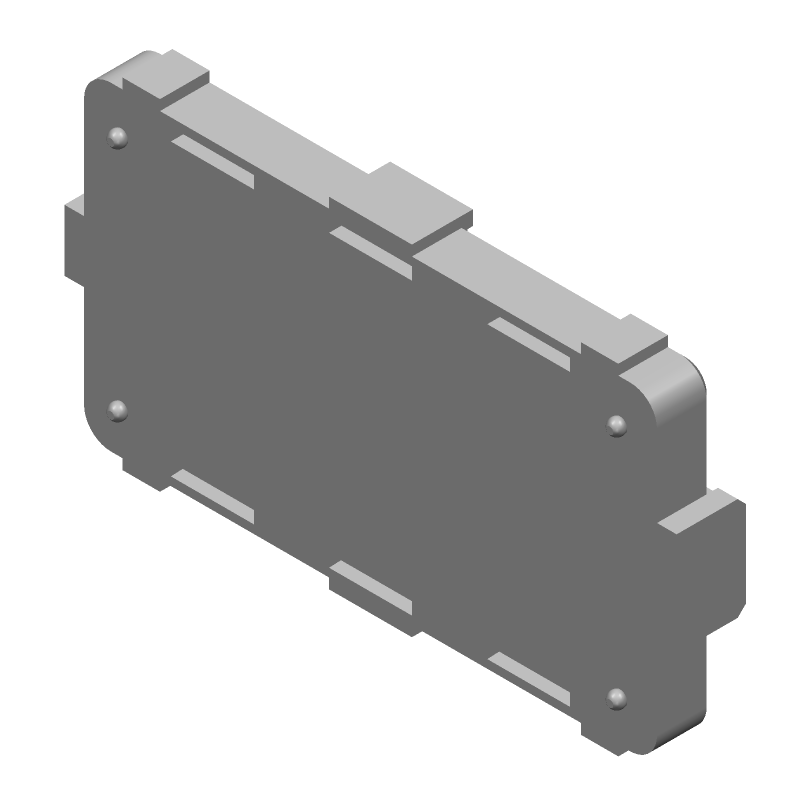

84517-101LF Amphenol Communications Solutions 200 Position BGA Receptacle, 4mm Component Height, 1.27mm x 1.27mm Array, Lead-free
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Pin Count 200
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Amphenol Communications Solutions
Body Breadth 0.683 inch
Body Depth 0.153 inch
Body Length 1.236 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 200VAC V
Durability 100 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Material LIQUID CRYSTAL POLYMER (LCP)
JESD-609 Code e1
MIL Conformance NO
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.05 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 10
Number of Rows Loaded 10
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 1.27 mm
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 0.45 A
Reference Standard CSA,CUL,UL
Terminal Pitch 1.27 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 200
UL Flammability Code 94V-0

Alternate Parts for 84517-101LF

This table gives cross-reference parts and alternative options found for 84517-101LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 84517-101LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
84517-101LF Amphenol FCi Check for Price Board Stacking Connector, 200 Contact(s), 10 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, ROHS COMPLIANT 84517-101LF vs 84517-101LF
84517-001 Amphenol Communications Solutions Check for Price 200 Position BGA Receptacle, 4mm Component Height, 1.27mm x 1.27mm Array 84517-101LF vs 84517-001
84517-001LF Amphenol Communications Solutions Check for Price 200 Position BGA Receptacle, 4mm Component Height, 1.27mm x 1.27mm Array, Lead-free 84517-101LF vs 84517-001LF
84517-201 Amphenol Communications Solutions Check for Price 200 Position BGA Receptacle, 4mm Component Height, 1.27mm x 1.27mm Array 84517-101LF vs 84517-201
84517-201 Amphenol FCi Check for Price Board Stacking Connector, 200 Contact(s), 10 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, 84517-101LF vs 84517-201
84517-201LF Amphenol FCi Check for Price Board Stacking Connector, 200 Contact(s), 10 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, ROHS COMPLIANT 84517-101LF vs 84517-201LF
84517-101 Amphenol Communications Solutions Check for Price 200 Position BGA Receptacle, 4mm Component Height, 1.27mm x 1.27mm Array 84517-101LF vs 84517-101
