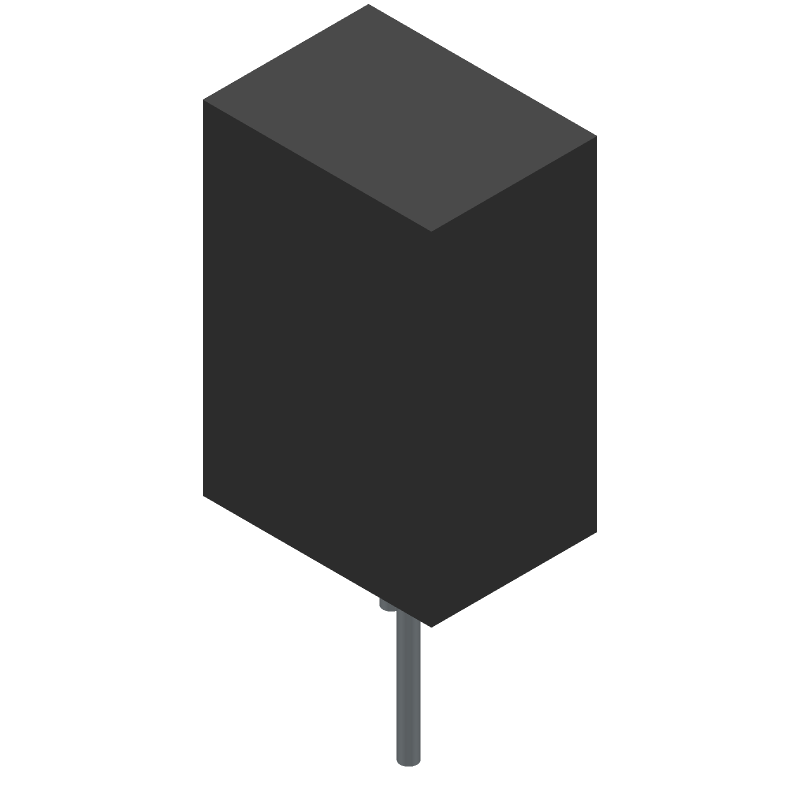

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 821KD07 by BrightKing Inc
Results Overview of 821KD07 by BrightKing Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
821KD07 Information
821KD07 by BrightKing Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Part Details for 821KD07
821KD07 CAD Models
821KD07 Part Data Attributes
|
|
821KD07
BrightKing Inc
Buy Now
Datasheet
|
Compare Parts:
821KD07
BrightKing Inc
Varistor, 670V, 52J, Through Hole Mount, RADIAL LEADED
|
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | BRIGHTKING INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Brightking | |
| Circuit RMS Voltage-Max | 510 V | |
| Energy Absorbing Capacity-Max | 52 J | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 12 mm | |
| Package Length | 9 mm | |
| Package Style | Radial | |
| Package Width | 7.5 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 0.25 W | |
| Resistor Type | VARISTOR | |
| Surface Mount | NO | |
| Technology | METAL OXIDE | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Tolerance | 10% | |
| Working Voltage | 670 V |
