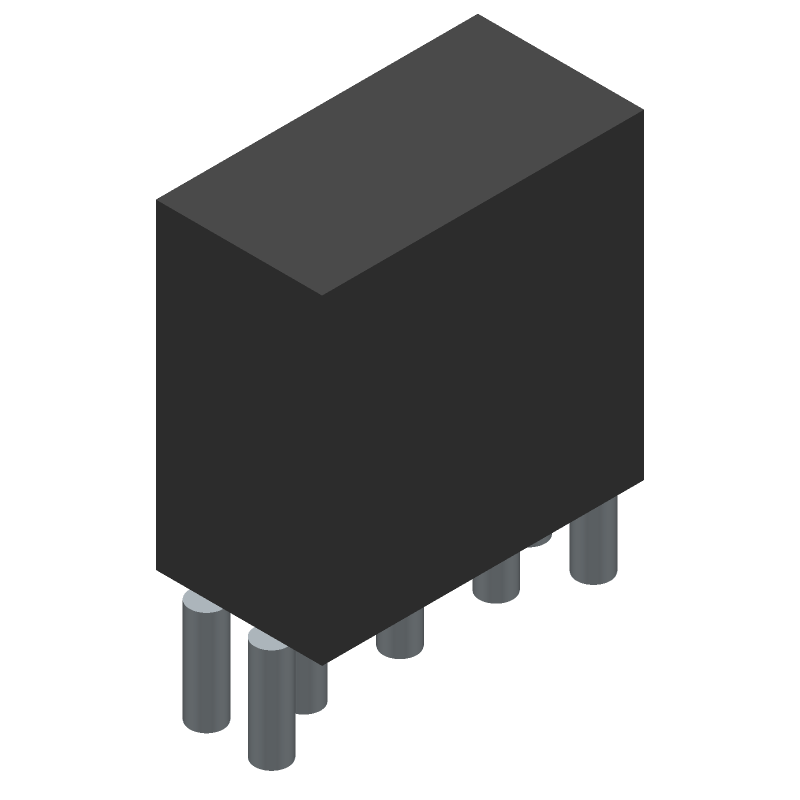

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 8125SD9V3BE by C&K
Results Overview of 8125SD9V3BE by C&K
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Automotive
8125SD9V3BE Information
8125SD9V3BE by C&K is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 8125SD9V3BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37AH7954
|
Newark | 8125Sd9V3Be |C&k Components 8125SD9V3BE RoHS: Not Compliant Min Qty: 160 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$8.2000 / $10.2500 | Buy Now |
|
DISTI #
CKN1631-ND
|
DigiKey | SWITCH PUSH SPDT 0.4VA 20V Min Qty: 1 Lead time: 13 Weeks Container: Tray |
179 In Stock |
|
$6.7326 / $10.4700 | Buy Now |
|
DISTI #
611-8125SD9V3BE
|
Mouser Electronics | Pushbutton Switches Switch Pb Spdt .4Va W/Vbracket RoHS: Compliant | 50 |
|
$6.7300 / $10.0700 | Buy Now |
|
DISTI #
70128441
|
RS | Switch, P/B, Sealed, SPDT, ON-MOM, Plunger,.280" Bushing,0.4A,20VAC/VDC,.460" V-Brkt Min Qty: 160 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk | 0 |
|
$6.6300 / $9.3300 | RFQ |
|
DISTI #
61610186
|
Verical | Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Bracket Mount/Through Hole PC Pins Bulk Min Qty: 10 Package Multiple: 5 Date Code: 1701 | Americas - 180 |
|
$9.2950 / $12.9610 | Buy Now |
|
DISTI #
16495648
|
Verical | Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Bracket Mount/Through Hole PC Pins Bulk Min Qty: 6 Package Multiple: 1 | Americas - 61 |
|
$9.4500 / $11.2400 | Buy Now |
|
DISTI #
8125SD9V3BE
|
IBS Electronics | PUSHBUTTON SWITCH SPDT VERTICAL 0.4A 20VDC 3 PCB HOLE CNT SOLDER TERMINAL THROUGH Min Qty: 15 Package Multiple: 1 | 241 |
|
$8.5020 / $12.9610 | Buy Now |
|
DISTI #
000000000000019743
|
Sager | Pushbutton Switches Switch Pb Spdt .4Va W/Vbracket Min Qty: 160 | 0 |
|
$6.3500 / $6.8100 | Buy Now |
Part Details for 8125SD9V3BE
8125SD9V3BE CAD Models
8125SD9V3BE Part Data Attributes
|
|
8125SD9V3BE
C&K
Buy Now
Datasheet
|
Compare Parts:
8125SD9V3BE
C&K
PUSHBUTTON SWITCH,STRAIGHT,SPDT,ON-(ON),PC TAIL TERMINAL,7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 8.128 mm | |
| Body Height | 29.1846 mm | |
| Body Length or Diameter | 15.748 mm | |
| Bushing Length | 0.28 inch | |
| Bushing Type | UNTHREADED | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Rating R Load | 0.4A@20VAC | |
| Contact Current(AC)-Max | 0.4 A | |
| Contact Current(DC)-Max | 0.4 A | |
| Contact (DC) Max Rating R Load | 0.4A@20VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 60000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 3 | |
| Sealing | EPOXY | |
| Solderability | MIL-STD | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPDT | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Length | 0.185 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
8125SD9V3BE Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 8125SD9V3BE is -40°C to 85°C.
-
Yes, the 8125SD9V3BE is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a low contact resistance of 10mΩ.
-
Yes, the 8125SD9V3BE is designed to operate in harsh environments, with a sealed construction that protects against dust, moisture, and other contaminants.
-
The maximum voltage rating for the 8125SD9V3BE is 12VDC.
-
Yes, the 8125SD9V3BE is designed for automated assembly processes, with a compact size and a tape-and-reel packaging option.
