Switches / Pushbutton Switches / 800SP8B6VS2QE
Datasheets

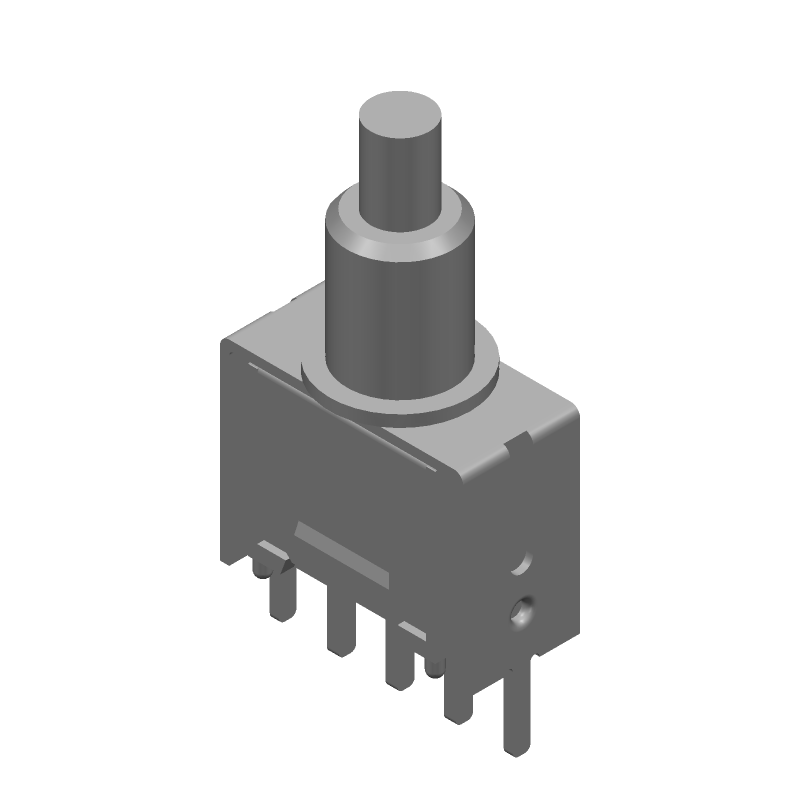

800SP8B6VS2QE by:

Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight

Part Details for 800SP8B6VS2QE by E-Switch Inc

Results Overview of 800SP8B6VS2QE by E-Switch Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

800SP8B6VS2QE Information

800SP8B6VS2QE by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for 800SP8B6VS2QE

Part # Distributor Description Stock Price Buy
DISTI # 40T8509
Newark Ea Rohs Compliant: Yes |E-Switch 800SP8B6VS2QE RoHS: Compliant Min Qty: 252 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $4.7300
  • 5,000 $4.1600
  • 10,000 $4.0500
$4.0500 / $4.7300 Buy Now
DISTI # 800SP8B6VS2QE-ND
DigiKey SWITCH PUSHBUTTON SPDT 3A 120V Min Qty: 252 Lead time: 12 Weeks Container: Bulk Temporarily Out of Stock
  • 252 $3.4296
$3.4296 Buy Now
DISTI # 612-800SP8B6VS2QE
Mouser Electronics Pushbutton Switches 3A 120VAC or 28VDC On-(On) SPST/SPDT 53
  • 1 $4.8900
  • 10 $4.8300
  • 100 $3.9500
  • 252 $3.4200
$3.4200 / $4.8900 Buy Now
DISTI # 74827889
RS Pushbutton Switch, SPDT, ON-(ON), 3A, 120V AC/28V DC, PC Pin, 800 Series Min Qty: 252 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 252 $6.1900
$6.1900 RFQ

Part Details for 800SP8B6VS2QE

800SP8B6VS2QE Part Data Attributes

Parametric Data
800SP8B6VS2QE E-Switch Inc
Buy Now Datasheet
Compare Parts:
800SP8B6VS2QE E-Switch Inc Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Part Life Cycle Code Active
Ihs Manufacturer E-SWITCH INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.31
Samacsys Manufacturer E-Switch
Actuator Length 0.139 inch
Actuator Type PUSHBUTTON
Additional Feature BRACKET MOUNT
Body Height 8.9408 mm
Bushing Length 0.22 inch
Bushing Type UNTHREADED
Center Contact Material COPPER ALLOY
Center Contact Plating SILVER
Contact (AC) Max Rating R Load 1A@250VAC
Contact Current(AC)-Max 1 A
Contact Current(DC)-Max 3 A
Contact (DC) Max Rating R Load 3A@28VDC
Contact Function ON-(ON)
Contact Resistance 0.02 mΩ
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 28 V
Dielectric Withstand Volts 1000VAC V
Electrical Life 50000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating SILVER
Housing Material STAINLESS STEEL
Illumination NON-ILLUMINATED
Insulation Resistance 1000000000 Ω
Insulator Material DIALLYL PHTHALATE
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
PCB Hole Count 5
Sealing EPOXY
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPDT
Switch Type PUSHBUTTON SWITCH
Terminal Length 0.13 inch
Termination Type SOLDER

Alternate Parts for 800SP8B6VS2QE

This table gives cross-reference parts and alternative options found for 800SP8B6VS2QE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 800SP8B6VS2QE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
700SP7B21M2QE E-Switch Inc $3.6802 Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Through Hole-straight 800SP8B6VS2QE vs 700SP7B21M2QE
700SP7B10M2QEH E-Switch Inc $3.9065 Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight 800SP8B6VS2QE vs 700SP7B10M2QEH
700SP7B10M7QEH E-Switch Inc $4.5173 Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle 800SP8B6VS2QE vs 700SP7B10M7QEH
700SP7B10M7QE E-Switch Inc $4.6750 Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle 800SP8B6VS2QE vs 700SP7B10M7QE
700SP7M1QEAP1BLK E-Switch Inc $5.0922 Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, Solder Lug Terminal, Panel Mount 800SP8B6VS2QE vs 700SP7M1QEAP1BLK
800SP8B7M6QE E-Switch Inc Check for Price Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle 800SP8B6VS2QE vs 800SP8B7M6QE
700SP7B20M6QEC2BLK E-Switch Inc Check for Price Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle 800SP8B6VS2QE vs 700SP7B20M6QEC2BLK
6A11-F4V9GEC49 Avnet Integrated Check for Price Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, 800SP8B6VS2QE vs 6A11-F4V9GEC49
800SP8M1QEOP1BLKBLK E-Switch Inc Check for Price Pushbutton Switch, SPDT, On-(on), Momentary, 3A, 28VDC, Solder Lug Terminal, Panel Mount 800SP8B6VS2QE vs 800SP8M1QEOP1BLKBLK
TP12MS9AVBE12 C&K Check for Price PUSHBUTTON SWITCH 800SP8B6VS2QE vs TP12MS9AVBE12
