800AWSP8M7REC2BLK Information
800AWSP8M7REC2BLK by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 800AWSP8M7REC2BLK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49Y6507
|
Newark | Ea Rohs Compliant: Yes |E-Switch 800AWSP8M7REC2BLK RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.8500 / $4.4600 | Buy Now |
|
DISTI #
141-800AWSP8M7REC2BLK-ND
|
DigiKey | SWITCH PB SPDT 0.4VA 20V Min Qty: 200 Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
$3.2960 | Buy Now |
|
DISTI #
612-00AWSP8M7REC2BLK
|
Mouser Electronics | Pushbutton Switches Pushbutton, SPDT , On-(On), Through Hole, Right Angle, Vertical, Black, IP67 RoHS: Compliant | 0 |
|
$3.2900 / $4.7500 | Order Now |
|
DISTI #
74827858
|
RS | Pushbutton Switch, SPDT, ON-(ON), 0.4 VA, 20V, PC Pin, IP67, 800A Series Min Qty: 200 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$5.8300 | RFQ |
|
DISTI #
800AWSP8M7REC2BLK
|
IBS Electronics | PUSHBUTTON SWITCH SPDT ON-(ON) 0.4 VA 20V PC PIN IP67 800A SERIES | E-SWITCH 800AWSP8M7REC2BLK Min Qty: 200 Package Multiple: 1 | 0 |
|
$3.2110 | Buy Now |
Part Details for 800AWSP8M7REC2BLK

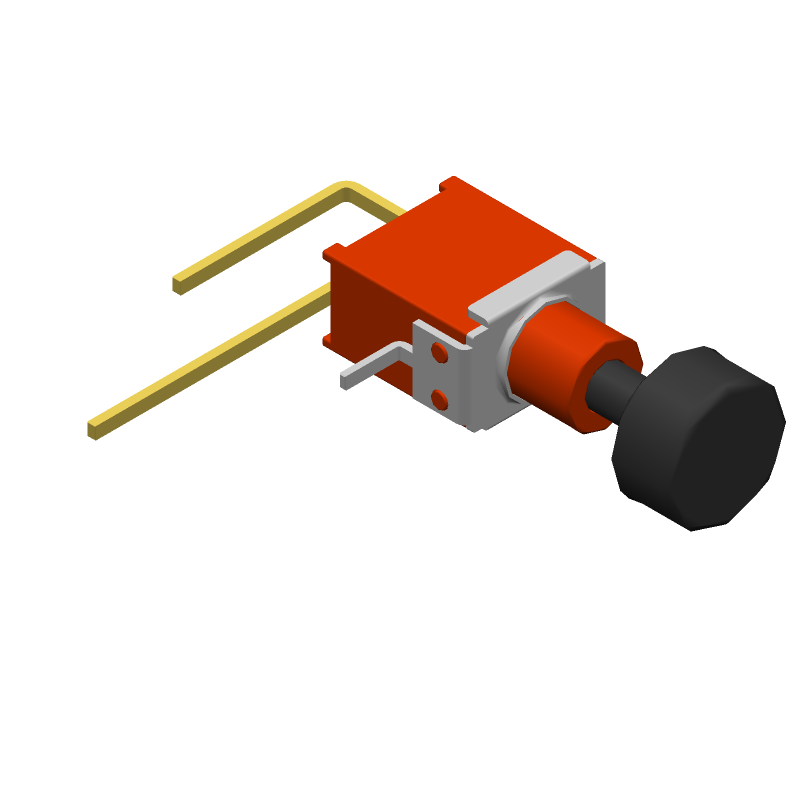

800AWSP8M7REC2BLK CAD Models
800AWSP8M7REC2BLK Part Data Attributes
|
|
800AWSP8M7REC2BLK
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
800AWSP8M7REC2BLK
E-Switch Inc
Pushbutton Switch,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.297 inch | |
| Actuator Material | GLASS FILLED NYLON/GLASS FILLED POLYSTER | |
| Actuator Type | PLUNGER | |
| Body Height | 8.13 mm | |
| Body Length or Diameter | 5.9 mm | |
| Bushing Length | 0.162 inch | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Rating R Load | 0.02A@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact (DC) Max Rating R Load | 0.02A@20VDC | |
| Contact Function | ON-(ON) | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | DIALLYL PHTHALATE | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Force-Max | 2.452 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 3 | |
| Sealing | EPOXY TERMINAL SEALED | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPDT | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Length | 0.13 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
800AWSP8M7REC2BLK Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 800AWSP8M7REC2BLK switch is -20°C to 85°C.
-
Yes, the 800AWSP8M7REC2BLK switch is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
-
The expected lifespan of the 800AWSP8M7REC2BLK switch is 10,000 to 50,000 cycles, depending on the operating conditions and usage.
-
Yes, the 800AWSP8M7REC2BLK switch is designed to be compatible with PCB washing and cleaning processes, including those using solvents and high-pressure cleaning methods.
-
The recommended torque for the 800AWSP8M7REC2BLK switch's actuator is 0.5 N·m to 1.5 N·m.
