Oscillators / Other Oscillators / 7XZ-32.768KCE-T
Datasheets
7XZ-32.768KCE-T by: TXC Corporation

Oscillator, 0.032768MHz Nom,

Part Details for 7XZ-32.768KCE-T by TXC Corporation

Results Overview of 7XZ-32.768KCE-T by TXC Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

7XZ-32.768KCE-T Information

7XZ-32.768KCE-T by TXC Corporation is an Other Oscillator.
Other Oscillators are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for 7XZ-32.768KCE-T

Part # Distributor Description Stock Price Buy
DISTI # 24T5726
Newark Oscillator, 32.768Khz, 3.2 X 2.5Mm, Cmos, Frequency Nom:32.768Khz, Frequency Stability +/-:50Ppm, Oscillator Case:Smd, 3.2Mm X 2.5Mm, Supply Voltage Nom:2.5V, Product Range:7Xz Series, Operating Temperature Min:-40°C Rohs Compliant: Yes |Txc 7XZ-32.768KCE-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 311
  • 1 $0.5000
  • 25 $0.5000
  • 50 $0.5000
  • 100 $0.5000
  • 250 $0.5000
  • 500 $0.5000
$0.5000 Buy Now
DISTI # 24T5727
Newark Rtc Crystal, 32.768Khz, Smd, Full Reel, Frequency Nom:32.768Khz, Frequency Stability +/-:50Ppm, Oscillator Case:Smd, 3.2Mm X 2.5Mm, Supply Voltage Nom:2.5V, Product Range:7Xz Series, Operating Temperature Min:-40°C Rohs Compliant: Yes |Txc 7XZ-32.768KCE-T RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $1.0800
  • 4,000 $0.9660
  • 6,000 $0.9310
  • 10,000 $0.8960
$0.8960 / $1.0800 Buy Now
DISTI # 887-1580-1-ND
DigiKey XTAL OSC XO 32.7680KHZ CMOS SMD Min Qty: 1 Lead time: 19 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $1.6500
  • 3,000 $1.0108
$1.0108 / $1.6500 Buy Now
DISTI # 717-7XZ-32.768KCE-T
Mouser Electronics Standard Clock Oscillators 32.768KHz 2.5Volt 50ppm -40C +85C RoHS: Compliant 0
  • 3,000 $1.0000
  • 6,000 $0.8850
$0.8850 / $1.0000 Order Now
DISTI # V72:2272_14757458
Arrow Electronics Oscillator XO 0.032768MHz ±50ppm 15pF CMOS 55% 2.5V 4-Pin CSMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Container: Cut Strips Americas - 813
  • 1 $0.1040
  • 10 $0.1024
  • 25 $0.1008
  • 100 $0.0992
  • 250 $0.0975
  • 500 $0.0959
$0.0959 / $0.1040 Buy Now
DISTI # 25525036
Verical Oscillator XO 0.032768MHz ±50ppm 15pF CMOS 55% 2.5V 4-Pin CSMD T/R RoHS: Compliant Min Qty: 62 Package Multiple: 1 Americas - 813
  • 62 $0.1008
  • 100 $0.0992
  • 250 $0.0975
  • 500 $0.0959
$0.0959 / $0.1008 Buy Now

Part Details for 7XZ-32.768KCE-T

7XZ-32.768KCE-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

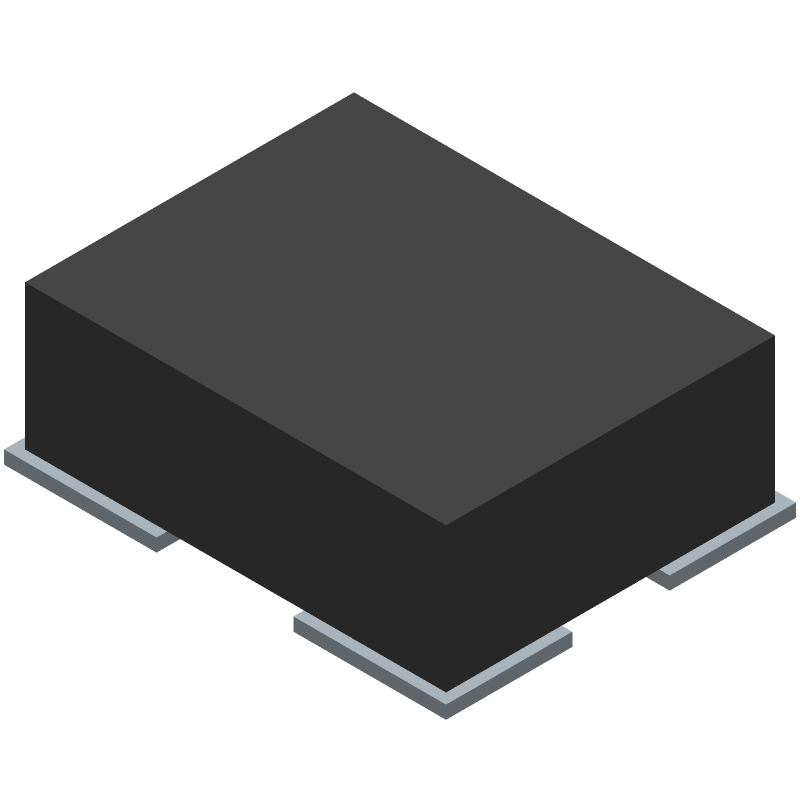

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

7XZ-32.768KCE-T Part Data Attributes

Parametric Data
7XZ-32.768KCE-T TXC Corporation
Buy Now Datasheet
Compare Parts:
7XZ-32.768KCE-T TXC Corporation Oscillator, 0.032768MHz Nom,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TXC CORP
Reach Compliance Code unknown
Samacsys Manufacturer TXC CORPORATION
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION
Fall Time-Max 200 ns
Frequency Adjustment-Mechanical NO
Frequency Stability 50%
Mounting Feature SURFACE MOUNT
Number of Terminals 4
Operating Frequency-Nom 0.032768 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type CMOS
Output Load 15 pF
Package Body Material CERAMIC
Package Equivalence Code LCC4,.09X.12,79/60
Physical Dimension 3.2mm x 2.5mm x 1.0mm
Qualification Status Not Qualified
Rise Time-Max 200 ns
Supply Current-Max 3 mA
Supply Voltage-Max 2.75 V
Supply Voltage-Min 2.25 V
Supply Voltage-Nom 2.5 V
Surface Mount YES
Symmetry-Max 55/45 %

Alternate Parts for 7XZ-32.768KCE-T

This table gives cross-reference parts and alternative options found for 7XZ-32.768KCE-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 7XZ-32.768KCE-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
OXJTGLJANF-0.032768 Taitien Electronics Co Ltd Check for Price CMOS Output Clock Oscillator, 0.032768MHz Nom, SMD, 4 PIN 7XZ-32.768KCE-T vs OXJTGLJANF-0.032768
OXJTGLJANF-32.768000 Taitien Electronics Co Ltd Check for Price CMOS Output Clock Oscillator, 0.032768MHz Nom, SMD, 4 PIN 7XZ-32.768KCE-T vs OXJTGLJANF-32.768000
OXJTGCJANF-32.768000 Taitien Electronics Co Ltd Check for Price CMOS Output Clock Oscillator, 0.032768MHz Nom, SMD, 4 PIN 7XZ-32.768KCE-T vs OXJTGCJANF-32.768000
