794815-1 Information
794815-1 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 794815-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
19H3767
|
Newark | Connector, Housing, 2 Position, Mate-N-Lok Contact, Product Range:Universal Mate-N-Lok Series, Gender:Receptacle, No. Of Positions:2Positions, Pitch Spacing:-, For Use With:Universal Mate-N-Lok Contacts Rohs Compliant: Yes |Amp Te Connectivity 794815-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 9 |
|
$0.0520 | Buy Now |
|
DISTI #
794815-1-ND
|
DigiKey | CONN PLUG HSG 2POS Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
12448 In Stock |
|
$0.2082 / $0.3600 | Buy Now |
|
DISTI #
19H3767
|
Avnet Americas | - Bulk (Alt: 19H3767) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 5 Days Container: Bulk | 9 Partner Stock |
|
$0.2020 | Buy Now |
|
DISTI #
794815-1
|
Avnet Americas | - Bulk (Alt: 794815-1) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 2 Days Container: Bulk | 5019 Factory Stock |
|
$0.1557 / $0.1880 | Buy Now |
|
DISTI #
571-794815-1
|
Mouser Electronics | Pin & Socket Connectors 02P UMNL CAP HSG HI TEMP RoHS: Compliant | 6466 |
|
$0.1920 / $0.4700 | Buy Now |
|
DISTI #
70272865
|
RS | Conn Cap Hsg 2 Pos Univ MATE-N-LOK HI TEMP Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 3358 |
|
$0.1030 | Buy Now |
|
|
TE Connectivity | 02P UMNL CAP HSG,HI TEMP Number of Positions: 2 Connector & Housing Type: Receptacle Connector Product Type: Housing Termination Method to Wire & Cable: Crimp Connector System: Wire-to-Wire Wire-to-Panel Standard Rectangular Connector | 2 Receptacle Housing Crimp | Part Number: 794815-1 | Internal Number: 794815-1 | TE Connectivity RoHS: Compliant Min Qty: 1 | 12448 |
|
$0.2100 / $0.4400 | Buy Now |
|
|
Future Electronics | MATE-N-LOK Single Row 2 Position Non Sealable Receptacle Housing RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Container: Box | 9553Box |
|
$0.1730 / $0.1930 | Buy Now |
|
DISTI #
AMP794815-1
|
Heilind Electronics | 02P UMNL CAP HSG,HI TEMP | Americas - 3327 in Stock |
|
$0.1923 / $0.2395 | Buy Now |
|
|
Onlinecomponents.com | 02P UMNL CAP HSG,HI TEMP RoHS: Compliant |
4212 In Stock 5019 Factory Stock |
|
$0.1616 / $0.2686 | Buy Now |
Part Details for 794815-1

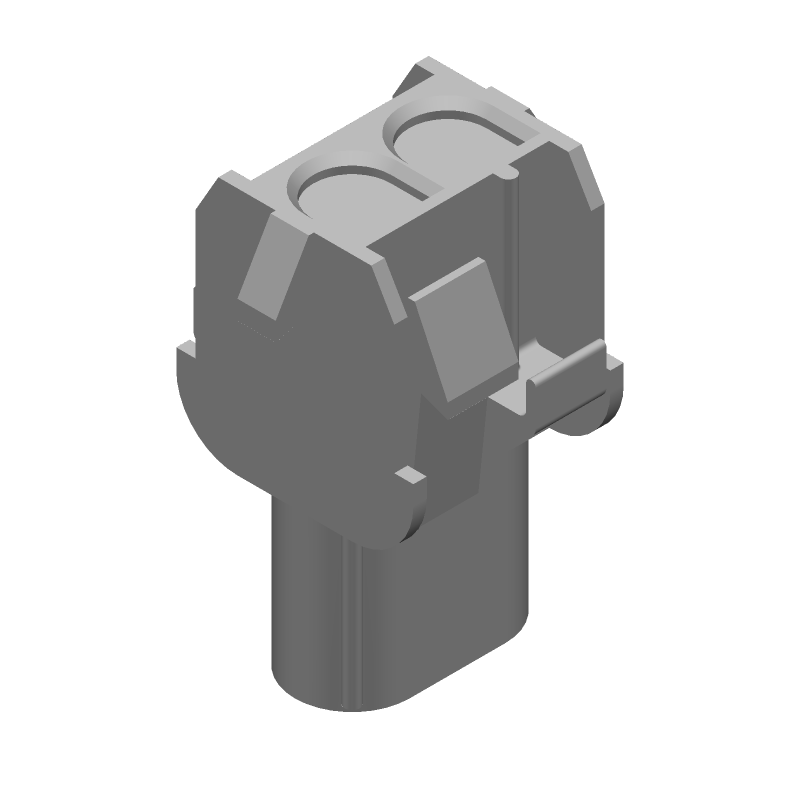

794815-1 CAD Models
