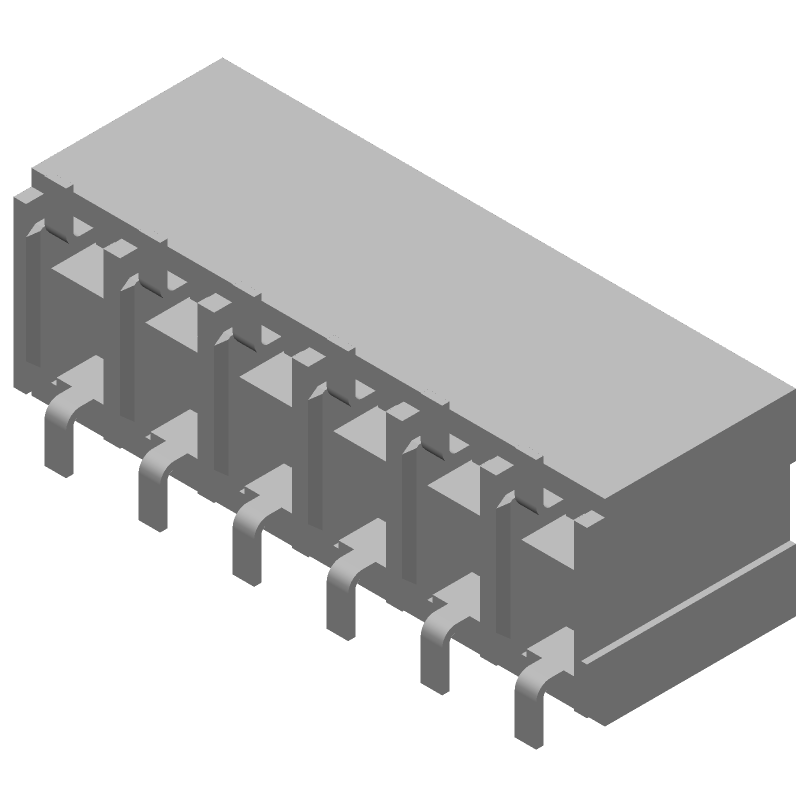

79109-1055 by: Molex

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

Part Details for 79109-1055 by Molex

Results Overview of 79109-1055 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

79109-1055 Information

79109-1055 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 79109-1055

Part # Distributor Description Stock Price Buy
DISTI # 57R1119
Newark Mgrid Vrec Smt W/Ocappgs .76Aulf 12Ckt |Molex 79109-1055 RoHS: Not Compliant Min Qty: 2816 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $1.6000
$1.6000 Buy Now
DISTI # 0791091055
Avnet Americas Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: 0791091055) RoHS: Compliant Min Qty: 2816 Package Multiple: 2816 Lead time: 111 Weeks, 0 Days Container: Tube 0
RFQ
Onlinecomponents.com 2.00mm Pitch Milli-Grid™ Receptacle, Surface Mount, Vertical, Top/Bottom Entry, without Press-fit Plastic Pegs, without Cap, Tube, 0.75µm Gold (Au) Selective, 12 Circuits, Lead-Free RoHS: Compliant 0
  • 1,408 $1.4300
  • 2,816 $1.4000
  • 5,000 $1.3100
$1.3100 / $1.4300 Buy Now

Part Details for 79109-1055

79109-1055 Part Data Attributes

Parametric Data
79109-1055 Molex
Buy Now Datasheet
Compare Parts:
79109-1055 Molex Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 111 Weeks
Samacsys Manufacturer Molex
Additional Feature ROHS,ELV COMPLIANT W/TUBE PKG
Body Breadth 0.165 inch
Body Depth 0.183 inch
Body Length 0.481 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination TIN OVER NICKEL
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 15 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 500VAC V
Durability 50 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.6482 mm
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 12
UL Flammability Code 94V-0
