76384-402LF Information
76384-402LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 76384-402LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24AM7855
|
Newark | Dx Hdr Sr .100 Str Tp Sh Rohs Compliant: Yes |Amphenol Communications Solutions 76384-402LF RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 500 |
|
$0.2940 | Buy Now |
|
DISTI #
62K8665
|
Newark | Connector, Header, 2 Position, 1Row, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:2Contacts, Contact Termination Type:Through Hole, Product Range:Fci 76384 Series Rohs Compliant: Yes |Amphenol Communications Solutions 76384-402LF RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2410 | Buy Now |
|
|
Onlinecomponents.com | Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag RoHS: Compliant |
4551 In Stock |
|
$0.2119 / $0.2859 | Buy Now |
|
|
Master Electronics | Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag RoHS: Compliant |
4551 In Stock |
|
$0.2119 / $0.2859 | Buy Now |
Part Details for 76384-402LF

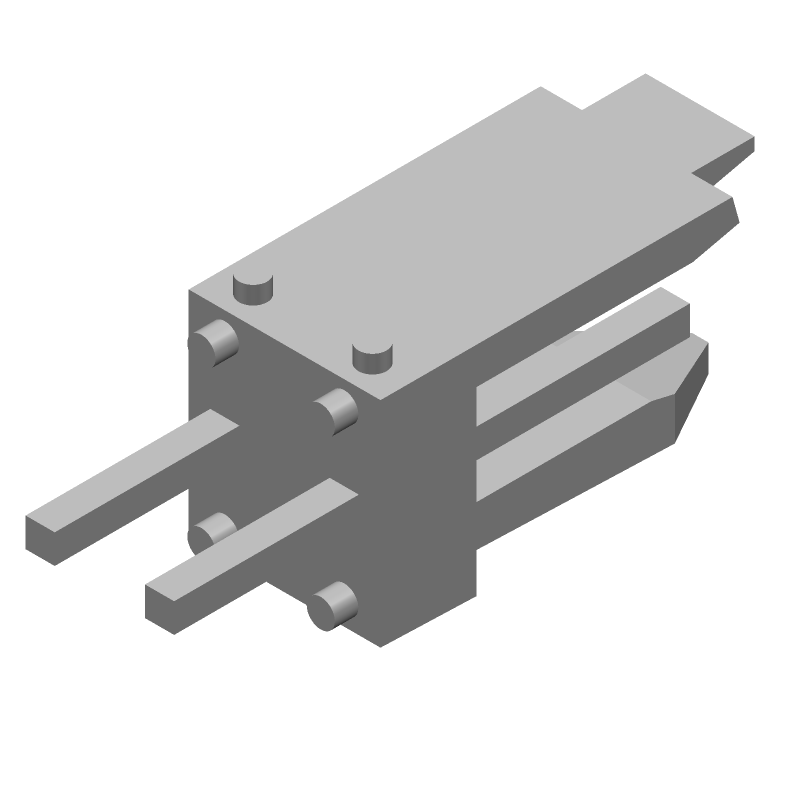

76384-402LF CAD Models
76384-402LF Part Data Attributes
|
|
76384-402LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
76384-402LF
Amphenol Communications Solutions
Dubox®2.54mm, Board to Board Connector, Shrouded Header, Single Row, Straight.
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | ROHS COMPLIANT | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Additional Feature | ROHS COMPLIANT & BAG PKG. | |
| Body Depth | 0.368 inch | |
| Body Length | 0.161 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | MATTE TIN (79) OVER NICKEL (50) | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 100000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYETHYLENE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 79u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL, CSA | |
| Terminal Length | 0.134 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for 76384-402LF
This table gives cross-reference parts and alternative options found for 76384-402LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 76384-402LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 76384-402 | Amphenol FCi | Check for Price | Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle | 76384-402LF vs 76384-402 |
76384-402LF Frequently Asked Questions (FAQ)
-
The recommended torque for mating and unmating the 76384-402LF connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application and environmental requirements to determine the optimal torque value.
-
Yes, the 76384-402LF connector is designed to withstand high-vibration environments. It meets the requirements of IEC 61373 Category 2, which ensures reliable performance in applications with intense vibrations.
-
The 76384-402LF connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's crucial to ensure that the connector is properly sealed and mated to maintain its environmental resistance.
-
The 76384-402LF connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environmental conditions, and maintenance practices.
-
The 76384-402LF connector is designed to be compatible with other Amphenol connectors and adapters. However, compatibility with competitors' products may vary. It's recommended to consult the specific product documentation and datasheets to ensure compatibility.
