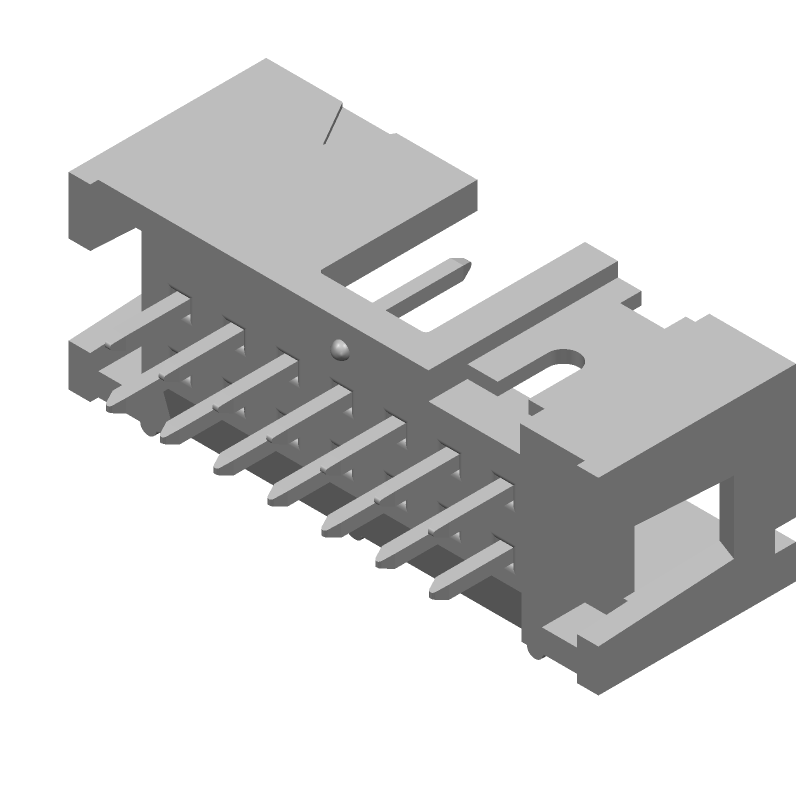

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 75869-102LF by Amphenol Communications Solutions
Results Overview of 75869-102LF by Amphenol Communications Solutions
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
75869-102LF Information
75869-102LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 73941-102LF | Amphenol Communications Solutions | 73941-102LF-METRAL 5R RA REC | |
| 74748-102LF | Amphenol Communications Solutions | 74748-102LF-PRESS-FIT GUIDE PIN | |
| 74749-102LF | Amphenol Communications Solutions | 74749-102LF-PRESS-FIT KEYING PLUGPIN |
Price & Stock for 75869-102LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62K8112
|
Newark | Connector, Header14Pos, 2Row, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:14Contacts, Contact Termination Type:Through Hole, Product Range:Fci Quickie 75869 Series Rohs Compliant: Yes |Amphenol Communications Solutions 75869-102LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$0.1730 | Buy Now |
|
DISTI #
38AH4785
|
Newark | Quickie Rohs Compliant: Yes |Amphenol Communications Solutions 75869-102LF RoHS: Compliant Min Qty: 690 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5100 | Buy Now |
|
|
Onlinecomponents.com | Conn Shrouded Header (4 Sides) HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole Quickie® Tube RoHS: Compliant |
322 In Stock |
|
$0.5270 / $0.9330 | Buy Now |
|
DISTI #
75869-102LF
|
TME | Connector: IDC, socket, male, PIN: 14, straight, THT, gold-plated Min Qty: 1 | 0 |
|
$0.5160 / $1.1870 | RFQ |
|
DISTI #
75869-102LF
|
IBS Electronics | 2 2.54MM TIN 2.54MM PHOSPHOR BRONZE DIRECT INSERT PLUGIN P=2.54MM WIRE TO BOARD CONNECTOR ROHS Min Qty: 154 Package Multiple: 1 | 646 |
|
$0.6125 / $0.8125 | Buy Now |
|
DISTI #
75869-102LF
|
IBS Electronics | 2 2.54MM TIN 2.54MM PHOSPHOR BRONZE DIRECT INSERT PLUGIN P=2.54MM WIRE TO BOARD CONNECTOR ROHS Min Qty: 25 Package Multiple: 1 | 66 |
|
$0.6851 / $1.2129 | Buy Now |
|
|
LCSC | 2 2.54mm Tin 2.54mm Phosphor Bronze Direct Insert PluginP2.54mm Wire To Board Connector ROHS | 245 |
|
$0.6382 / $1.1814 | Buy Now |
|
|
Master Electronics | Conn Shrouded Header (4 Sides) HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole Quickie® Tube RoHS: Compliant |
322 In Stock |
|
$0.5270 / $0.9330 | Buy Now |
|
|
Vyrian | Connectors | 2920 |
|
RFQ |
Part Details for 75869-102LF
75869-102LF CAD Models
75869-102LF Part Data Attributes
|
|
75869-102LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
75869-102LF
Amphenol Communications Solutions
Quickie® Wire to Board connector, 2.54mm(0.100in), Shrouded Header, Through Hole, Straight, Double Row, 14 Positions
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Additional Feature | POLARIZED | |
| Body Breadth | 0.362 inch | |
| Body Depth | 0.377 inch | |
| Body Length | 0.906 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 15 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 1414VAC V | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 20000000000 Ω | |
| Insulator Color | BLUE | |
| Insulator Material | GLASS FILLED POLYETHYLENE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.54 mm | |
| Plating Thickness | 29.92u inch | |
| Polarization Key | SHRD RIGHT | |
| Rated Current (Signal) | 1 A | |
| Reference Standard | CSA,CUL,UL | |
| Terminal Length | 0.12 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 14 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 0.245 N |
Alternate Parts for 75869-102LF
This table gives cross-reference parts and alternative options found for 75869-102LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 75869-102LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 75869-302LF | Amphenol Communications Solutions | $0.5380 | Quickie® Wire to Board connector, 2.54mm(0.100in), Shrouded Header, Through Hole, Straight, Double Row, 14 Positions | 75869-102LF vs 75869-302LF |
| 75869-302LF | Amphenol FCi | $0.6694 | Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Blue Insulator, ROHS COMPLIANT | 75869-102LF vs 75869-302LF |
| 75869-202LF | Amphenol Communications Solutions | $0.6780 | Quickie®, Wire to Board Connector, Double Row, 14 Positions, 2.54 mm (0.1 in.), Vertical, Shrouded Header 3.81 um (150 u".) Tin-Lead Mating Plating | 75869-102LF vs 75869-202LF |
| 75869-302 | Amphenol FCi | Check for Price | Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Receptacle | 75869-102LF vs 75869-302 |
| 75869-202LF | Amphenol FCi | Check for Price | Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Blue Insulator, ROHS COMPLIANT | 75869-102LF vs 75869-202LF |
| 75869-102 | Amphenol FCi | Check for Price | Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle | 75869-102LF vs 75869-102 |
75869-102LF Frequently Asked Questions (FAQ)
-
The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and to prevent damage to the connector.
-
Yes, the 75869-102LF is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
-
The 75869-102LF is designed to be compatible with other mating connectors that meet the same industry standards. However, it's recommended to verify compatibility with the specific mating connector before use.
-
The operating temperature range for the 75869-102LF is -40°C to 125°C (-40°F to 257°F). However, it's recommended to consult the datasheet for specific temperature ratings for the connector's materials and components.
-
The 75869-102LF is designed to operate in harsh environments, including high-humidity and high-salt environments. However, it's recommended to follow the manufacturer's guidelines for environmental sealing and protection to ensure reliable performance.
