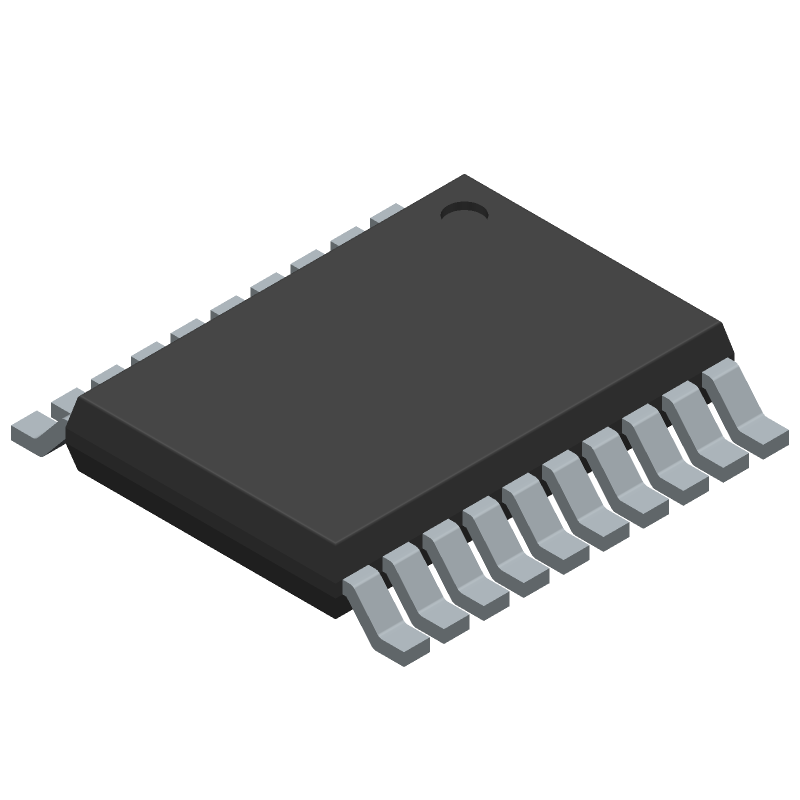

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74LVX541MTCX by onsemi
Results Overview of 74LVX541MTCX by onsemi
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Aerospace and Defense
Healthcare
Telecommunications
Automotive
74LVX541MTCX Information
74LVX541MTCX by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LVX541MTCX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y6444
|
Newark | Buffer/Driv, Octal, Tri-State, Tssop-20, Logic Family/Base Number:-, Logic Device Type:Buffer/Line Driver, Non Inverting, Logic Case Style:Tssop, No. Of Pins:20Pins, Supply Voltage Min:2V, Supply Voltage Max:3.6V, Logic Ic Rohs Compliant: Yes |Onsemi 74LVX541MTCX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.4230 / $0.5800 | Buy Now |
|
DISTI #
38C7968
|
Newark | Ic, buffer/Driver, single,8-Bit, lvx-Cmos, tssop,20Pin, plastic Rohs Compliant: Yes |Onsemi 74LVX541MTCX RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3090 / $0.4120 | Buy Now |
|
DISTI #
74LVX541MTCX
|
Avnet Americas | Buffer / Line Driver, Non Inverting, 74LVX541, 1 Element, 2 V to 3.6 V, 20 Pins, WTSSOP - Tape and Reel (Alt: 74LVX541MTCX) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.2016 / $0.2128 | Buy Now |
|
DISTI #
512-74LVX541MTCX
|
Mouser Electronics | Buffers & Line Drivers Octal Buff/Line Drv RoHS: Compliant | 0 |
|
$0.2980 / $0.6400 | Order Now |
|
DISTI #
V72:2272_06298063
|
Arrow Electronics | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2049 Container: Cut Strips | Americas - 857 |
|
$0.3066 / $0.4768 | Buy Now |
|
|
Onlinecomponents.com | 74LVX541 Series 3.6 V 3 State Low Voltage Octal Buffer/Line Driver - TSSOP-20 RoHS: Compliant | 0 |
|
$0.2849 / $0.3105 | Buy Now |
|
DISTI #
74LVX541MTCX
|
TME | IC: digital, buffer,non-inverting,line driver, Ch: 8, SMD, TSSOP20 Min Qty: 1 | 0 |
|
$0.2580 / $0.5100 | RFQ |
|
DISTI #
74LVX541MTCX
|
Avnet Silica | Buffer Line Driver Non Inverting 74LVX541 1 Element 2 V to 36 V 20 Pins WTSSOP (Alt: 74LVX541MTCX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
74LVX541MTCX
|
EBV Elektronik | Buffer Line Driver Non Inverting 74LVX541 1 Element 2 V to 36 V 20 Pins WTSSOP (Alt: 74LVX541MTCX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 74LVX541MTCX
74LVX541MTCX CAD Models
74LVX541MTCX Part Data Attributes
|
|
74LVX541MTCX
onsemi
Buy Now
Datasheet
|
Compare Parts:
74LVX541MTCX
onsemi
Low Voltage Octal Buffer/Line Driver with 3-STATE Outputs, TSSOP-20, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP-20 | |
| Package Description | TSSOP-20 | |
| Manufacturer Package Code | 948AQ | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | WITH DUAL OUTPUT ENABLE | |
| Control Type | ENABLE LOW | |
| Family | LV/LV-A/LVX/H | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.004 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 12 ns | |
| Propagation Delay (tpd) | 17 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for 74LVX541MTCX
This table gives cross-reference parts and alternative options found for 74LVX541MTCX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74LVX541MTCX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HD74LV541ATELL-E | Renesas Electronics Corporation | Check for Price | LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, TSSOP-20 | 74LVX541MTCX vs HD74LV541ATELL-E |
| MC74LVX541DT | Rochester Electronics LLC | Check for Price | LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20 | 74LVX541MTCX vs MC74LVX541DT |
| 74LVX541MTCX_NL | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, LV/LV-A/LVX/H Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 | 74LVX541MTCX vs 74LVX541MTCX_NL |
| HD74LV541AT | Renesas Electronics Corporation | Check for Price | LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, TSSOP-20 | 74LVX541MTCX vs HD74LV541AT |
| MC74LVX541DTR2 | Motorola Mobility LLC | Check for Price | LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20 | 74LVX541MTCX vs MC74LVX541DTR2 |
| 74LV541PW,112 | NXP Semiconductors | Check for Price | 74LV541 - Octal buffer/line driver; 3-state TSSOP2 20-Pin | 74LVX541MTCX vs 74LV541PW,112 |
| HD74LV541T | Renesas Electronics Corporation | Check for Price | LV/LV-A/LVX/H SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, TSSOP-20 | 74LVX541MTCX vs HD74LV541T |
| 74LVX541MTC | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, LV/LV-A/LVX/H Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 4.40 MM, MO-153AC, TSSOP-20 | 74LVX541MTCX vs 74LVX541MTC |
74LVX541MTCX Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74LVX541MTCX is 1.65V to 3.6V.
-
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
-
While the 74LVX541MTCX is designed for low-voltage applications, it can tolerate 5V inputs. However, the output voltage will be limited to the supply voltage (VCC). If you need 5V outputs, consider using a level translator or a different device.
-
To avoid latch-up or other issues, ensure that the power supply voltage (VCC) is stable and reaches its nominal value before applying input signals. Also, consider using a power-on reset (POR) circuit to ensure a clean power-up sequence.
-
The maximum frequency of operation for the 74LVX541MTCX is typically around 100 MHz, but this can vary depending on the specific application, PCB design, and operating conditions. Consult the datasheet and application notes for more information.
