Logic / Multiplexer/Demultiplexers / 74LVC1G157GW,125
Datasheets
74LVC1G157GW,125 by:
Nexperia

74LVC1G157 - Single 2-input multiplexer@en-us

Part Details for 74LVC1G157GW,125 by Nexperia

Results Overview of 74LVC1G157GW,125 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Financial Technology (Fintech) Computing and Data Storage Telecommunications Communication and Networking

74LVC1G157GW,125 Information

74LVC1G157GW,125 by Nexperia is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 74LVC1G157GW,125

Part # Distributor Description Stock Price Buy
DISTI # 33AC1266
Newark Multiplexer, 1 Ch, 2:1, Sc-88-6, Logic Family/Base Number:74Lvc1G57, Logic Type:Multiplexer, No. Of Channels:1Channels, Line Configuration:2:1, Supply Voltage Min:1.65V, Supply Voltage Max:5.5V, Logic Case Style:Sc-88, No. Of Rohs Compliant: Yes |Nexperia 74LVC1G157GW,125 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2447
  • 1 $0.1520
  • 10 $0.0970
  • 25 $0.0910
  • 50 $0.0850
  • 100 $0.0790
  • 250 $0.0780
  • 500 $0.0770
  • 1,000 $0.0760
$0.0760 / $0.1520 Buy Now
DISTI # 1727-3491-1-ND
DigiKey IC MULTIPLEXER 1 X 2:1 6-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 23270
In Stock
  • 1 $0.1300
  • 10 $0.0890
  • 25 $0.0776
  • 100 $0.0655
  • 250 $0.0598
  • 500 $0.0563
  • 1,000 $0.0534
  • 3,000 $0.0499
  • 6,000 $0.0482
  • 9,000 $0.0473
  • 15,000 $0.0464
  • 21,000 $0.0458
  • 30,000 $0.0452
  • 75,000 $0.0441
  • 150,000 $0.0434
$0.0434 / $0.1300 Buy Now
DISTI # 74LVC1G157GW,125
Avnet Americas Multiplexer, 74LVC, 1 Channel, 2:1, 1.65 V to 5.5 V, 6 Pins, TSSOP - Tape and Reel (Alt: 74LVC1G157GW,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.0364
  • 6,000 $0.0362
  • 12,000 $0.0360
  • 18,000 $0.0358
  • 24,000 $0.0356
$0.0356 / $0.0364 Buy Now
DISTI # 771-74LVC1G157GW-G
Mouser Electronics Encoders, Decoders, Multiplexers & Demultiplexers Single 2-input multiplexer RoHS: Compliant 60293
  • 1 $0.1300
  • 10 $0.0890
  • 25 $0.0780
  • 100 $0.0660
  • 250 $0.0570
  • 1,000 $0.0530
  • 3,000 $0.0480
  • 18,000 $0.0450
$0.0450 / $0.1300 Buy Now
DISTI # V36:1790_06506143
Arrow Electronics Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2435 Americas - 18000
  • 3,000 $0.0443
  • 18,000 $0.0378
$0.0378 / $0.0443 Buy Now
DISTI # V72:2272_06506143
Arrow Electronics Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 2028 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2251 Container: Cut Strips Americas - 14558
  • 2,193 $0.0456
  • 3,000 $0.0451
  • 6,000 $0.0447
$0.0447 / $0.0456 Buy Now
DISTI # E02:0323_00016559
Arrow Electronics Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2434 Europe - 6000
  • 3,000 $0.0454
  • 18,000 $0.0387
$0.0387 / $0.0454 Buy Now
Future Electronics 74LVC Series 3.3 V Surface Mount Single 2-Input Multiplexer - SC-88 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel 33000
Reel
  • 3,000 $0.0426
  • 6,000 $0.0419
  • 12,000 $0.0412
  • 15,000 $0.0410
  • 45,000 $0.0396
$0.0396 / $0.0426 Buy Now
DISTI # 87797558
Verical Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 7195 Package Multiple: 1 Date Code: 2301 Americas - 21000
  • 7,195 $0.0521
  • 10,000 $0.0464
  • 100,000 $0.0389
$0.0389 / $0.0521 Buy Now
DISTI # 88094078
Verical Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2407 Americas - 21000
  • 3,000 $0.0677
  • 12,000 $0.0619
  • 18,000 $0.0576
$0.0576 / $0.0677 Buy Now
DISTI # 89543345
Verical Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2435 Americas - 18000
  • 3,000 $0.0458
$0.0458 Buy Now
DISTI # 65551384
Verical Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 2028 Package Multiple: 1 Date Code: 2251 Americas - 14558
  • 2,028 $0.0466
$0.0466 Buy Now
DISTI # 87622551
Verical Multiplexer 1-Element CMOS 2-IN 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2434 Americas - 6000
  • 3,000 $0.0451
  • 18,000 $0.0384
$0.0384 / $0.0451 Buy Now
Quest Components MULTIPLEXER, LVC/LCX/Z SERIES, 1-FUNC, 2 LINE INPUT, 1 LINE OUTPUT, TRUE OUTPUT, CMOS, PDSO6 25
  • 1 $0.1100
$0.1100 Buy Now
Rochester Electronics Multiplexer, LVC/LCX/Z Series, 1-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO6 RoHS: Compliant Status: Active Min Qty: 1 25363
  • 100 $0.0502
  • 500 $0.0452
  • 1,000 $0.0417
  • 10,000 $0.0371
  • 100,000 $0.0311
$0.0311 / $0.0502 Buy Now
Future Electronics 74LVC Series 3.3 V Surface Mount Single 2-Input Multiplexer - SC-88 Min Qty: 3000 Package Multiple: 3000 33000
null
  • 3,000 $0.0426
  • 6,000 $0.0419
  • 12,000 $0.0412
  • 15,000 $0.0410
  • 45,000 $0.0396
$0.0396 / $0.0426 Buy Now
Future Electronics 74LVC Series 3.3 V Surface Mount Single 2-Input Multiplexer - SC-88 Min Qty: 3000 Package Multiple: 3000 138000
null
  • 3,000 $0.0389
  • 6,000 $0.0383
  • 12,000 $0.0376
  • 15,000 $0.0374
  • 45,000 $0.0362
$0.0362 / $0.0389 Buy Now
DISTI # 74LVC1G157GW.125
TME IC: digital, multiplexer, Ch: 1, IN: 2, CMOS,TTL, SMD, SC88, LVC Min Qty: 1 2794
  • 1 $0.2807
  • 10 $0.1440
  • 100 $0.0896
  • 500 $0.0680
  • 1,000 $0.0614
  • 3,000 $0.0531
  • 9,000 $0.0522
$0.0522 / $0.2807 Buy Now
Ameya Holding Limited 74LVC Series 3.3 V Surface Mount Single 2-Input Multiplexer - SC-88 110373
RFQ
DISTI # 74LVC1G157GW,125
Avnet Asia Multiplexer, 74LVC, 1 Channel, 2:1, 1.65 V to 5.5 V, 6 Pins, TSSOP (Alt: 74LVC1G157GW,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days 15000
  • 3,000 $0.0394
  • 6,000 $0.0389
  • 9,000 $0.0384
  • 15,000 $0.0379
  • 30,000 $0.0369
  • 75,000 $0.0360
  • 150,000 $0.0352
$0.0352 / $0.0394 Buy Now
DISTI # 74LVC1G157GW,125
Avnet Silica Multiplexer 74LVC 1 Channel 21 165 V to 55 V 6 Pins TSSOP (Alt: 74LVC1G157GW,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Silica - 9000
Buy Now
DISTI # 74LVC1G157GW,125
EBV Elektronik Multiplexer 74LVC 1 Channel 21 165 V to 55 V 6 Pins TSSOP (Alt: 74LVC1G157GW,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days EBV - 6000
Buy Now
New Advantage Corporation 74LVC Series 3.3 V Surface Mount Single 2-Input Multiplexer - SC-88 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 288000
  • 3,000 $0.0710
  • 288,000 $0.0655
$0.0655 / $0.0710 Buy Now

Part Details for 74LVC1G157GW,125

74LVC1G157GW,125 CAD Models

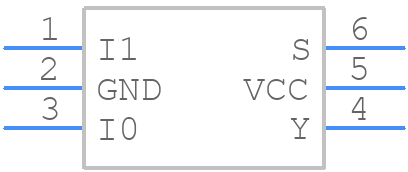

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

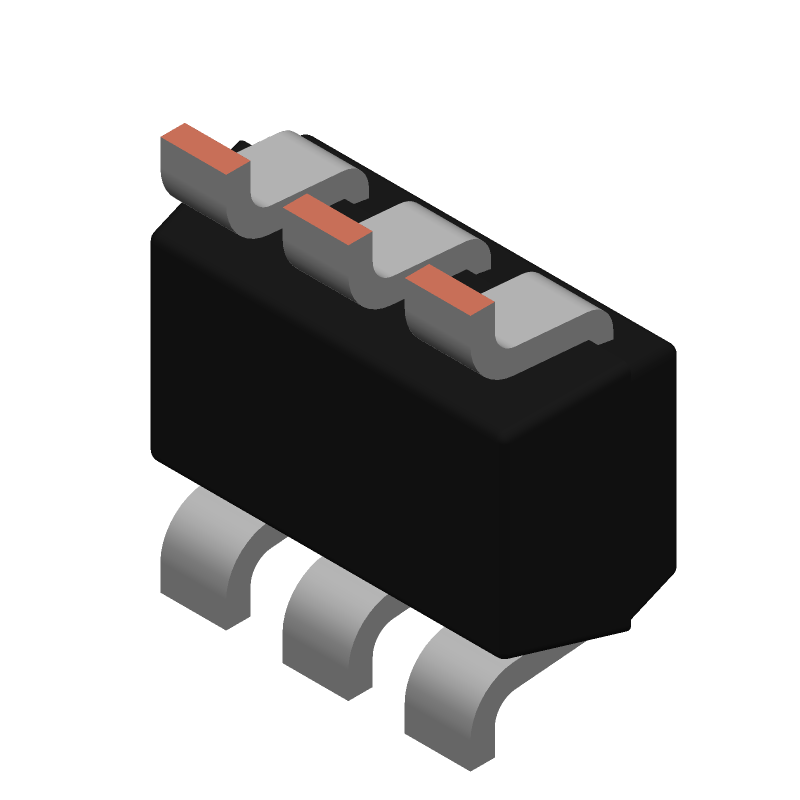

  • 3D Model
