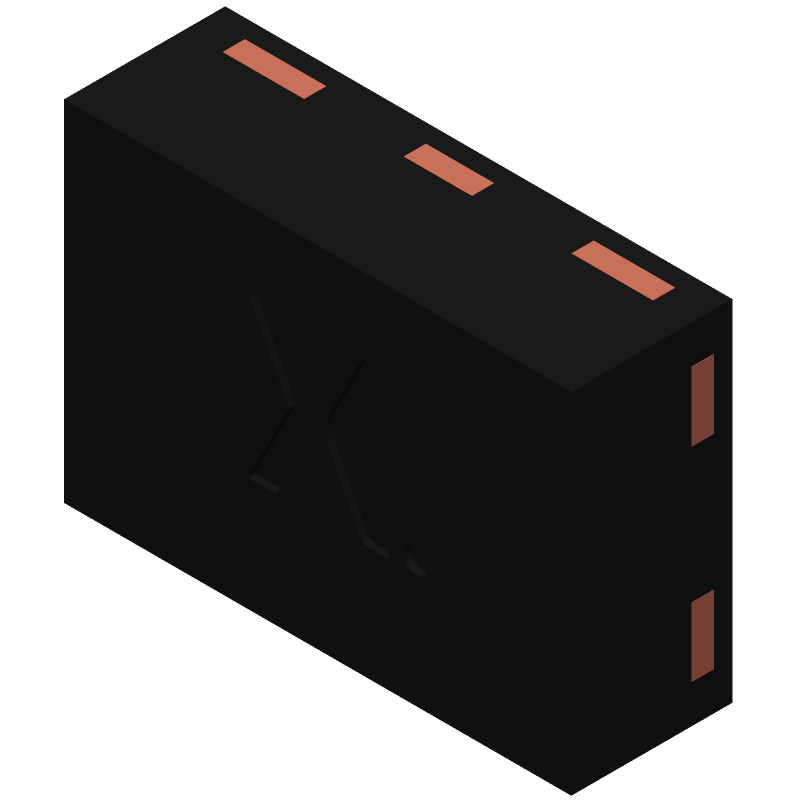

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74LVC1G157GM,115 by Nexperia
Results Overview of 74LVC1G157GM,115 by Nexperia
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Financial Technology (Fintech)
Computing and Data Storage
Telecommunications
Communication and Networking
74LVC1G157GM,115 Information
74LVC1G157GM,115 by Nexperia is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LVC1G157GM,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-3489-1-ND
|
DigiKey | IC MULTIPLEXR 1X2:1 6XSON/SOT886 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
25070 In Stock |
|
$0.0836 / $0.2300 | Buy Now |
|
DISTI #
74LVC1G157GM,115
|
Avnet Americas | Multiplexer, 74LVC, 1 Channel, 2:1, 1.65 V to 5.5 V, 6 Pins, XSON - Tape and Reel (Alt: 74LVC1G157GM,115) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0537 / $0.0548 | Buy Now |
|
DISTI #
771-LVC1G157GM115
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers Single 2-input multiplexer RoHS: Compliant | 9314 |
|
$0.0810 / $0.2300 | Buy Now |
|
|
Future Electronics | 74LVC Series 5.5 V 1 Input Surface Mount Multiplexer - XSON-6 Min Qty: 5000 Package Multiple: 5000 |
15000 null |
|
$0.0613 / $0.0648 | Buy Now |
|
DISTI #
74LVC1G157GM.115
|
TME | IC: digital, multiplexer, Ch: 1, IN: 3, CMOS,TTL, SMD, XSON6, LVC Min Qty: 1 | 0 |
|
$0.0860 / $0.1760 | RFQ |
|
DISTI #
74LVC1G157GM,115
|
Avnet Asia | Multiplexer, 74LVC, 1 Channel, 2:1, 1.65 V to 5.5 V, 6 Pins, XSON (Alt: 74LVC1G157GM,115) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 6 Weeks, 0 Days | 0 |
|
$0.1166 / $0.1304 | Buy Now |
|
DISTI #
74LVC1G157GM,115
|
Avnet Silica | Multiplexer 74LVC 1 Channel 21 165 V to 55 V 6 Pins XSON (Alt: 74LVC1G157GM,115) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
74LVC1G157GM,115
|
EBV Elektronik | Multiplexer 74LVC 1 Channel 21 165 V to 55 V 6 Pins XSON (Alt: 74LVC1G157GM,115) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 10000 |
|
$0.0997 / $0.1080 | Buy Now |
Part Details for 74LVC1G157GM,115
74LVC1G157GM,115 CAD Models
74LVC1G157GM,115 Part Data Attributes
|
|
74LVC1G157GM,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74LVC1G157GM,115
Nexperia
74LVC1G157 - Single 2-input multiplexer@en-us SON 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SON | |
| Package Description | XSON-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT886 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e3 | |
| Length | 1.45 mm | |
| Logic IC Type | MULTIPLEXER | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 13 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.5 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1 mm |
Alternate Parts for 74LVC1G157GM,115
This table gives cross-reference parts and alternative options found for 74LVC1G157GM,115. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74LVC1G157GM,115, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LVC1G157GW,125 | Nexperia | $0.0856 | 74LVC1G157 - Single 2-input multiplexer@en-us | 74LVC1G157GM,115 vs 74LVC1G157GW,125 |
74LVC1G157GM,115 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74LVC1G157GM,115 is 1.65 V to 5.5 V.
-
Yes, the 74LVC1G157GM,115 is suitable for high-frequency applications up to 200 MHz.
-
The propagation delay of the 74LVC1G157GM,115 is typically around 3.5 ns at 3.3 V and 25°C.
-
Yes, the 74LVC1G157GM,115 is compatible with both 3.3 V and 5 V systems, making it a versatile component for various applications.
-
The power consumption of the 74LVC1G157GM,115 is typically around 10 μA at 3.3 V and 25°C.
