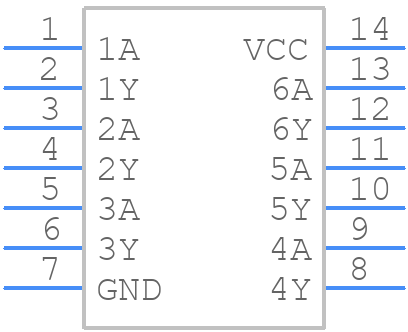

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74LVC06APW,118 by Nexperia
Results Overview of 74LVC06APW,118 by Nexperia
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
74LVC06APW,118 Information
74LVC06APW,118 by Nexperia is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LVC06APW,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74AH2505
|
Newark | Buffer, Inverting, -40 To 125Deg C Rohs Compliant: Yes |Nexperia 74LVC06APW,118 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2228 |
|
$0.1650 / $0.3080 | Buy Now |
|
DISTI #
1727-4025-1-ND
|
DigiKey | IC INVERTER 6CH 1-INP 14TSSOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
51193 In Stock |
|
$0.1014 / $0.2900 | Buy Now |
|
DISTI #
74LVC06APW,118
|
Avnet Americas | Inverter, Hex, 1 Input, 14 Pins, TSSOP, 74LVC06A - Tape and Reel (Alt: 74LVC06APW,118) RoHS: Compliant Min Qty: 10000 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0705 | Buy Now |
|
DISTI #
771-74LVC06APW-T
|
Mouser Electronics | Buffers & Line Drivers Hex inverter with open-drain outputs RoHS: Compliant | 4671 |
|
$0.1020 / $0.2800 | Buy Now |
|
DISTI #
V72:2272_06505791
|
Arrow Electronics | Buffer/Driver 6-CH Inverting Open Drain CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 925 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2415 Container: Cut Strips | Americas - 9900 |
|
$0.0804 / $0.1081 | Buy Now |
|
DISTI #
V79:2366_21796719
|
Arrow Electronics | Buffer/Driver 6-CH Inverting Open Drain CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1786 Package Multiple: 1 Date Code: 1537 | Americas - 7802 |
|
$0.0560 | Buy Now |
|
DISTI #
E02:0323_00161701
|
Arrow Electronics | Buffer/Driver 6-CH Inverting Open Drain CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 8 Weeks | Europe - 5000 |
|
$0.0767 | Buy Now |
|
|
Future Electronics | 74LVC Series 5.5 V Surface Mount Hex Inverter with Open-Drain - TSSOP-14 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Container: Reel | 5000Reel |
|
$0.0744 / $0.0789 | Buy Now |
|
DISTI #
85960173
|
Verical | Buffer/Driver 6-CH Inverting Open Drain CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 3598 Package Multiple: 1 Date Code: 2101 | Americas - 252500 |
|
$0.0779 / $0.1043 | Buy Now |
|
DISTI #
85962868
|
Verical | Buffer/Driver 6-CH Inverting Open Drain CMOS 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 3598 Package Multiple: 1 Date Code: 2201 | Americas - 170000 |
|
$0.0779 / $0.1043 | Buy Now |
Part Details for 74LVC06APW,118
74LVC06APW,118 CAD Models
74LVC06APW,118 Part Data Attributes
|
|
74LVC06APW,118
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74LVC06APW,118
Nexperia
74LVC06A - Hex inverter with open-drain outputs@en-us TSSOP 14-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | 4.40 MM, PLASTIC, MO-153, SOT-402-1, TSSOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | SOT402-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Logic IC Type | INVERTER | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR, 13 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 5 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
74LVC06APW,118 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74LVC06APW,118 is 1.65 V to 5.5 V.
-
Yes, the 74LVC06APW,118 is compatible with both 3.3 V and 5 V systems, making it a versatile component for various applications.
-
The maximum propagation delay for the 74LVC06APW,118 is 10 ns, ensuring fast switching times in digital circuits.
-
Yes, the 74LVC06APW,118 is suitable for high-frequency applications up to 100 MHz, making it suitable for use in high-speed digital circuits.
-
The power dissipation for the 74LVC06APW,118 is typically 10 μW per gate at 3.3 V and 20 μW per gate at 5 V, making it a low-power component.
