Logic / Bus Driver/Transceivers / 74HC7541DB,118
Datasheets
74HC7541DB,118 by:

SSOP2 20-Pin

Part Details for 74HC7541DB,118 by Nexperia

Results Overview of 74HC7541DB,118 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

74HC7541DB,118 Information

74HC7541DB,118 by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 74HC7541DB,118

Part # Distributor Description Stock Price Buy
DISTI # 74AH2490
Newark Buffer/Line Driver, -40 To 125Deg C Rohs Compliant: Yes |Nexperia 74HC7541DB,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $2.0000
  • 10 $1.7600
  • 25 $1.5900
  • 50 $1.4200
  • 100 $1.2400
  • 250 $1.0700
  • 500 $0.9670
  • 1,000 $0.9150
$0.9150 / $2.0000 Buy Now
DISTI # 74HC7541DB,118
Avnet Silica Buffer Line Driver Schmitt Trigger 74HC7541 1 Element 2 V to 6 V 20 Pins SSOP (Alt: 74HC7541DB,118) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Silica - 0
Buy Now
DISTI # 74HC7541DB,118
EBV Elektronik Buffer Line Driver Schmitt Trigger 74HC7541 1 Element 2 V to 6 V 20 Pins SSOP (Alt: 74HC7541DB,118) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 EBV - 0
Buy Now

Part Details for 74HC7541DB,118

74HC7541DB,118 CAD Models

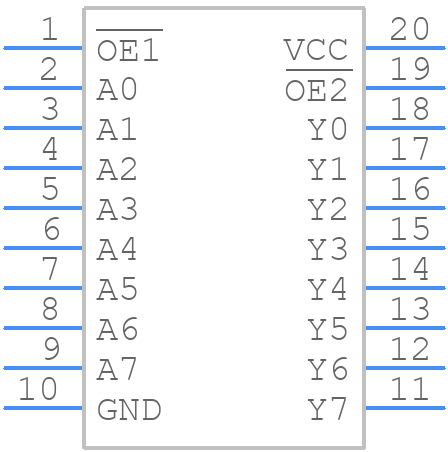

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74HC7541DB,118 Part Data Attributes

Parametric Data
74HC7541DB,118 Nexperia
Buy Now Datasheet
Compare Parts:
74HC7541DB,118 Nexperia SSOP2 20-Pin
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer NEXPERIA
Part Package Code SSOP2
Package Description 5.30 MM, PLASTIC, MO-150, SOT339-1, SSOP-20
Pin Count 20
Manufacturer Package Code SOT339-1
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Date Of Intro 1995-11-01
Samacsys Manufacturer Nexperia
Additional Feature WITH DUAL OUTPUT ENABLE
Family HC/UH
JESD-30 Code R-PDSO-G20
JESD-609 Code e4
Length 7.2 mm
Load Capacitance (CL) 50 pF
Logic IC Type BUS DRIVER
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 36 ns
Qualification Status Not Qualified
Seated Height-Max 2 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 5.3 mm

Alternate Parts for 74HC7541DB,118

This table gives cross-reference parts and alternative options found for 74HC7541DB,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC7541DB,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
935190300112 Nexperia Check for Price Bus Driver, HC/UH Series, 8-Func, 1-Bit, True Output, CMOS, PDSO20 74HC7541DB,118 vs 935190300112
74HC7541DB Nexperia Check for Price Bus Driver 74HC7541DB,118 vs 74HC7541DB
74HC7541DB,112 Nexperia Check for Price SSOP2 20-Pin 74HC7541DB,118 vs 74HC7541DB,112
74HC7541D NXP Semiconductors Check for Price IC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 7.50 MM, PLASTIC, MS-013, SOT163-1, SOP-20, Bus Driver/Transceiver 74HC7541DB,118 vs 74HC7541D
74HC7541D Nexperia Check for Price Bus Driver 74HC7541DB,118 vs 74HC7541D
74HC7541D-T NXP Semiconductors Check for Price IC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 7.50 MM, PLASTIC, MS-013, SOT163-1, SOP-20, Bus Driver/Transceiver 74HC7541DB,118 vs 74HC7541D-T
933967940112 Nexperia Check for Price Bus Driver, HC/UH Series, 8-Func, 1-Bit, True Output, CMOS, PDSO20 74HC7541DB,118 vs 933967940112
74HC7541D,112 NXP Semiconductors Check for Price 74HC(T)7541 - Octal Schmitt trigger buffer/line driver; 3-state SOP 20-Pin 74HC7541DB,118 vs 74HC7541D,112
933967940118 Nexperia Check for Price Bus Driver, HC/UH Series, 8-Func, 1-Bit, True Output, CMOS, PDSO20 74HC7541DB,118 vs 933967940118
74HC7541DB NXP Semiconductors Check for Price IC HC/UH SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 5.30 MM, PLASTIC, MO-150, SOT339-1, SSOP-20, Bus Driver/Transceiver 74HC7541DB,118 vs 74HC7541DB

74HC7541DB,118 Related Parts

74HC7541DB,118 Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the 74HC7541DB,118 is 2.0 V to 6.0 V.

  • To ensure proper power supply, connect VCC to a stable voltage source and GND to a reliable ground. Decouple the power supply with a 100 nF capacitor.

  • The maximum clock frequency supported by the 74HC7541DB,118 is 25 MHz.

  • The output enable (OE) pin is active-low. Connect it to GND to enable the outputs or to VCC to disable them.

  • The propagation delay of the 74HC7541DB,118 is typically around 10 ns, but it can vary depending on the operating voltage and temperature.
