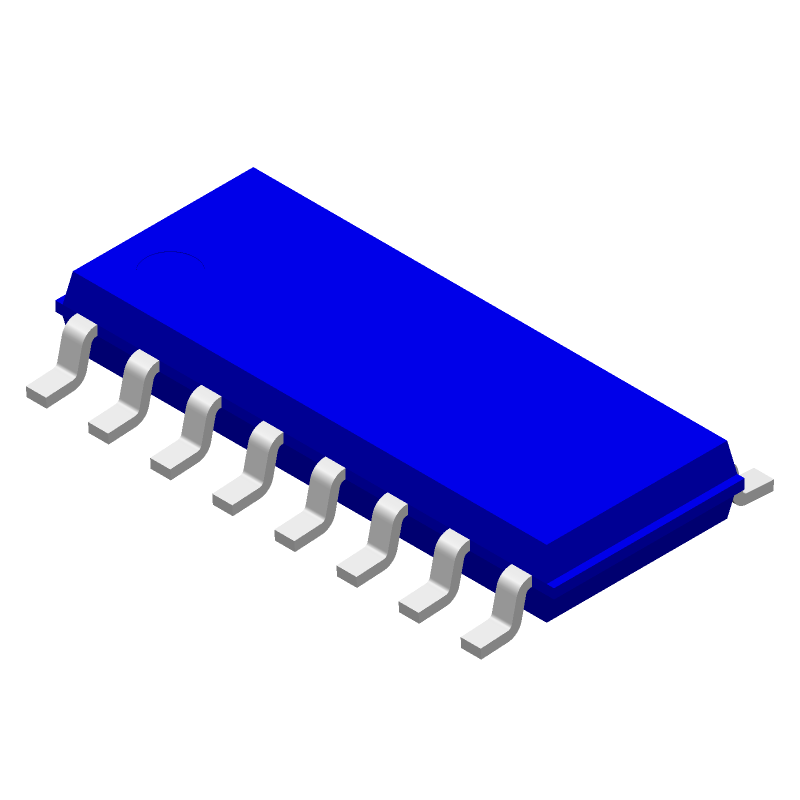

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC595D by Toshiba America Electronic Components
Results Overview of 74HC595D by Toshiba America Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
74HC595D Information
74HC595D by Toshiba America Electronic Components is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74HC595D | Toshiba Electronic Devices & Storage Corporation | CMOS Logic IC, 8-bit Shift Register, SOIC16, -40 to 125 degC |
Price & Stock for 74HC595D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74HC595DCT-ND
|
DigiKey | IC SHIFT REGISTER 8BIT 16SOP Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
23531 In Stock |
|
$0.0953 / $0.2700 | Buy Now |
|
DISTI #
74HC595D
|
Avnet Americas | - Tape and Reel (Alt: 74HC595D) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.0821 / $0.0881 | Buy Now |
|
DISTI #
757-74HC595D
|
Mouser Electronics | Counter Shift Registers Pb-F 74HC CMOS logic IC series SOIC 8-Bit Shift DDRister/Latch (3-State) RoHS: Compliant | 5844 |
|
$0.0960 / $0.2600 | Buy Now |
|
|
Cytech Systems Limited | LOGIC 74HC595D SHIFT REGISTER | 3626 |
|
RFQ | |
|
|
LCSC | 8 2V6V 1 Serial to serial or parallel SOIC-16 Shift Registers ROHS | 16695 |
|
$0.0906 / $0.1794 | Buy Now |
Part Details for 74HC595D
74HC595D CAD Models
74HC595D Part Data Attributes
|
|
74HC595D
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
74HC595D
Toshiba America Electronic Components
SERIAL IN PARALLEL OUT SHIFT REGISTER
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOIC-16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Date Of Intro | 2016-05-24 | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | (RCK-QN) PROPAGATION DELAY TIME NOT CONSIDERED | |
| Count Direction | RIGHT | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 9.9 mm | |
| Logic IC Type | SERIAL IN PARALLEL OUT | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Propagation Delay (tpd) | 240 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 24 MHz |
74HC595D Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the 74HC595D is 25 MHz, but it can vary depending on the operating voltage and temperature.
-
To ensure that the output pins are in a high-impedance state during power-up, you can use an external pull-up resistor or enable the internal pull-up resistor by connecting the OE (Output Enable) pin to VCC.
-
The maximum current that the output pins can sink or source is 25 mA per pin, but it's recommended to limit the current to 10 mA per pin to ensure reliable operation.
-
To reset the shift register to its initial state, you can pulse the MR (Master Reset) pin low for at least 10 ns.
-
Yes, the 74HC595D can be used as a level shifter, but it's not recommended as it's not designed for that purpose. Instead, use a dedicated level shifter IC for reliable operation.
