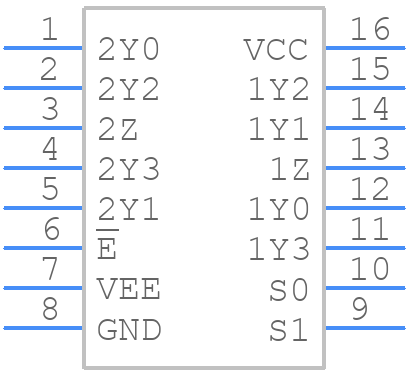

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC4052D,653 by Nexperia
Results Overview of 74HC4052D,653 by Nexperia
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
74HC4052D,653 Information
74HC4052D,653 by Nexperia is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for 74HC4052D,653
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11N8541
|
Newark | Analog Mux/Dmux, Dual 4 X 1, Soic-16, Ic Function:Analog Switch, Analog Multiplexer/Demultiplexer, Power Supply Type:Single Supply, Supply Voltage Range:2V To 10V, Ic Case/Package:Soic, No. Of Pins:16Pins, No. Of Channels:2Channelsrohs Compliant: Yes |Nexperia 74HC4052D,653 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 4405 |
|
$0.1460 / $0.3300 | Buy Now |
|
DISTI #
26AC8664
|
Newark | 74Hc4052D/Sot109/So16 Rohs Compliant: Yes |Nexperia 74HC4052D,653 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0850 | Buy Now |
|
DISTI #
1727-2808-1-ND
|
DigiKey | IC SWITCH SP4T X 2 150OHM 16SO Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
46470 In Stock |
|
$0.1255 / $0.3300 | Buy Now |
|
DISTI #
74HC4052D,653
|
Avnet Americas | Analogue Switch, Analogue Multiplexer/Demultiplexer, 4 Channels, SP4T, 2V to 10V, SOIC-16 - Tape and Reel (Alt: 74HC4052D,653) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel | 25000 |
|
RFQ | |
|
DISTI #
771-74HC4052D-T
|
Mouser Electronics | Multiplexer Switch ICs Dual 4-channel analog multiplexer/demultiplexer RoHS: Compliant | 89694 |
|
$0.1240 / $0.3300 | Buy Now |
|
DISTI #
A03:0893_00016269
|
Arrow Electronics | Analog Multiplexer Dual 4:1 16-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2503 | Asia - 62500 |
|
$0.1075 | Buy Now |
|
DISTI #
E02:0323_00016269
|
Arrow Electronics | Analog Multiplexer Dual 4:1 16-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2509 | Europe - 30000 |
|
$0.1106 / $0.1200 | Buy Now |
|
DISTI #
E21:3489_00016269
|
Arrow Electronics | Analog Multiplexer Dual 4:1 16-Pin SO T/R RoHS: Compliant Min Qty: 597 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2430 | Europe - 597 |
|
$0.1314 / $0.1460 | Buy Now |
|
DISTI #
V72:2272_06493435
|
Arrow Electronics | Analog Multiplexer Dual 4:1 16-Pin SO T/R RoHS: Compliant Min Qty: 550 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2239 Container: Cut Strips | Americas - 550 |
|
$0.1075 | Buy Now |
|
|
Future Electronics | 74HC Series 10 V Dual 4-Channel Analog Multiplexer/Demultiplexer -SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Container: Reel | 27500Reel |
|
$0.0968 / $0.1030 | Buy Now |
Part Details for 74HC4052D,653
74HC4052D,653 CAD Models
74HC4052D,653 Part Data Attributes
|
|
74HC4052D,653
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74HC4052D,653
Nexperia
74HC4052; 74HCT4052 - Dual 4-channel analog multiplexer/demultiplexer@en-us SOP 16-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOP | |
| Package Description | SOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | SOT109-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Schedule B Code | 8542.39.00.00 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1993-11-01 | |
| kg CO2e/kg | 12.04 | |
| Average Weight (mg) | 222.575 | |
| CO2e (mg) | 2679.803 | |
| Samacsys Description | 74HC(T)4052 - Dual 4-channel analog multiplexer/demultiplexer@en-us | |
| Samacsys Manufacturer | Nexperia | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 144.23145 | |
| Category CO2 Kg | 504 | |
| CO2 | 72692.6508 | |
| Compliance Temperature Grade | Automotive: -40C to +125C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| CAS Accounted for Wt | 94 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 1333-86-4, 7440-02-0 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Analog IC - Other Type | SP4T | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 50 dB | |
| On-state Resistance Match-Nom | 6 Ω | |
| On-state Resistance-Max (Ron) | 195 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 10 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 57 ns | |
| Switch-on Time-Max | 69 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for 74HC4052D,653
This table gives cross-reference parts and alternative options found for 74HC4052D,653. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC4052D,653, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74HC4052ADR2 | onsemi | Check for Price | 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, SOIC-16 | 74HC4052D,653 vs MC74HC4052ADR2 |
74HC4052D,653 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the 74HC4052D,653 is 10 MHz.
-
To ensure proper switching, the control input (S) should be driven with a low-impedance source, and the voltage supply (VCC) should be decoupled with a 100 nF capacitor.
-
The maximum voltage rating for the analog signals is VCC + 0.5 V, but not exceeding 7 V.
-
To minimize power consumption in standby mode, ensure that the control input (S) is at a logic low level, and the analog switches are turned off.
-
The recommended operating temperature range for the 74HC4052D,653 is -40°C to +125°C.
