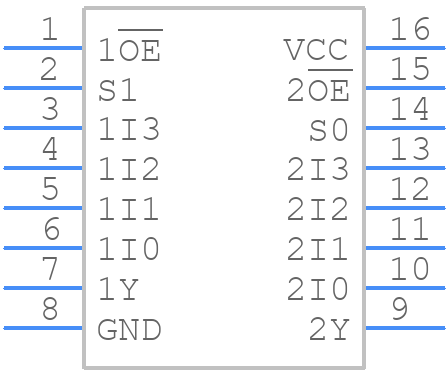

Part Symbol
-
Footprint
-

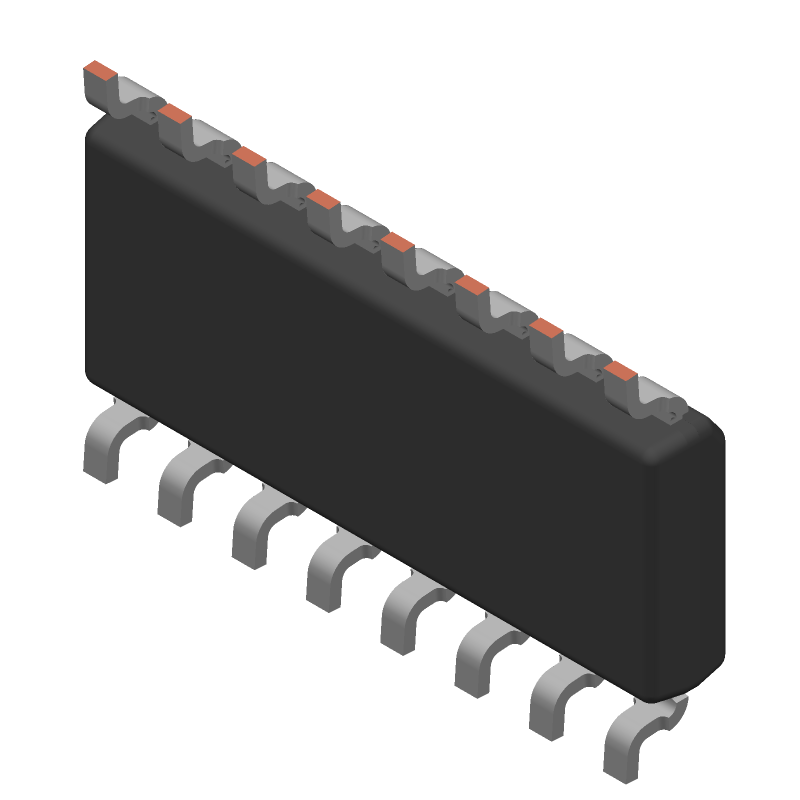

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC253D,653 by Nexperia
Results Overview of 74HC253D,653 by Nexperia
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Financial Technology (Fintech)
Computing and Data Storage
Telecommunications
Communication and Networking
74HC253D,653 Information
74HC253D,653 by Nexperia is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74HC253D,653
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM5534
|
Newark | 74Hc253D/Sot109/So16 |Nexperia 74HC253D,653 RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 2500 |
|
$0.1230 | Buy Now |
|
DISTI #
1727-6589-1-ND
|
DigiKey | IC MULTIPLEXER 2 X 4:1 16-SO Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2584 In Stock |
|
$0.1428 / $0.3700 | Buy Now |
|
DISTI #
74HC253D,653
|
Avnet Americas | Multiplexer, 74HC, 2 Channel, 4:1, 2 V to 6 V, 16 Pins, SOIC - Tape and Reel (Alt: 74HC253D,653) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel | 7500 |
|
$0.1112 / $0.1230 | Buy Now |
|
DISTI #
771-HC253D653
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers Dual 4-input multiplexer, 3-state RoHS: Compliant | 2254 |
|
$0.1450 / $0.3700 | Buy Now |
|
DISTI #
E02:0323_00162704
|
Arrow Electronics | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SO RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2235 | Europe - 25000 |
|
$0.0628 | Buy Now |
|
DISTI #
P40:2555_18825625
|
Arrow Electronics | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SO RoHS: Compliant Min Qty: 45 Package Multiple: 1 | Europe - 45 |
|
$0.1839 / $0.2178 | Buy Now |
|
DISTI #
68411192
|
Verical | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SO RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Date Code: 2235 | Americas - 22500 |
|
$0.0632 | Buy Now |
|
DISTI #
74HC253D,653
|
Avnet Asia | Multiplexer, 74HC, 2 Channel, 4:1, 2 V to 6 V, 16 Pins, SOIC (Alt: 74HC253D,653) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days | 5000 |
|
$0.2081 / $0.2328 | Buy Now |
|
DISTI #
74HC253D,653
|
Avnet Silica | Multiplexer 74HC 2 Channel 41 2 V to 6 V 16 Pins SOIC (Alt: 74HC253D,653) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
DISTI #
74HC253D,653
|
EBV Elektronik | Multiplexer 74HC 2 Channel 41 2 V to 6 V 16 Pins SOIC (Alt: 74HC253D,653) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 74HC253D,653
74HC253D,653 CAD Models
74HC253D,653 Part Data Attributes
|
|
74HC253D,653
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74HC253D,653
Nexperia
74HC253; 74HCT253 - Dual 4-input multiplexer; 3-state@en-us SOP 16-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOP | |
| Package Description | SOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | SOT109-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1993-01-01 | |
| Samacsys Manufacturer | Nexperia | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Logic IC Type | MULTIPLEXER | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 4 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 13 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 53 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
74HC253D,653 Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the 74HC253D,653 is 100 MHz.
-
Yes, the 74HC253D,653 is compatible with 5V systems, but it's recommended to use a voltage regulator to ensure a stable 5V supply.
-
The enable pins (1E, 2E, 3E, and 4E) are active-low, meaning they need to be pulled low to enable the corresponding channel. Connect them to GND or a logic low signal to enable the channel.
-
The propagation delay of the 74HC253D,653 is typically around 10-15 ns, but it can vary depending on the operating frequency and load conditions.
-
Yes, the 74HC253D,653 can be used as a level shifter, but it's not recommended as it's not designed for that purpose. Instead, use a dedicated level shifter IC for reliable operation.
