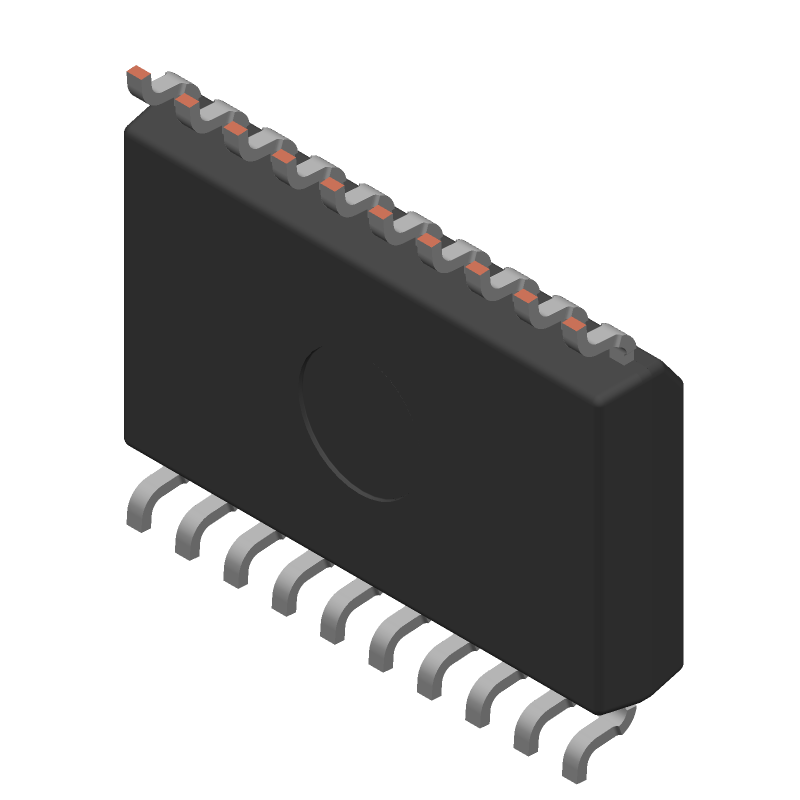

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC241D,652 by Nexperia
Results Overview of 74HC241D,652 by Nexperia
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
74HC241D,652 Information
74HC241D,652 by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74HC241D,652
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85957025
|
Verical | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SO Bulk RoHS: Compliant Min Qty: 914 Package Multiple: 1 Date Code: 1901 | Americas - 10350 |
|
$0.2829 / $0.4106 | Buy Now |
|
|
Rochester Electronics | Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20 RoHS: Compliant Status: Obsolete Min Qty: 1 | 11229 |
|
$0.2263 / $0.3650 | Buy Now |
Part Details for 74HC241D,652
74HC241D,652 CAD Models
74HC241D,652 Part Data Attributes
|
|
74HC241D,652
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74HC241D,652
Nexperia
74HC241; 74HCT241 - Octal buffer/line driver; 3-state@en-us SOP 20-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOP | |
| Package Description | PLASTIC, SO-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | SOT163-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Date Of Intro | 1993-01-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 30 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD SILVER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for 74HC241D,652
This table gives cross-reference parts and alternative options found for 74HC241D,652. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC241D,652, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74HC241M | Intersil Corporation | Check for Price | IC,BUFFER/DRIVER,DUAL,4-BIT,HC-CMOS,SOP,20PIN,PLASTIC | 74HC241D,652 vs CD74HC241M |
| 933713460653 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, OCTAL 1-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SO-20, Bus Driver/Transceiver | 74HC241D,652 vs 933713460653 |
| 74HC241D-T | NXP Semiconductors | Check for Price | IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SO-20, Bus Driver/Transceiver | 74HC241D,652 vs 74HC241D-T |
| 933713470653 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, OCTAL 1-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SO-20, Bus Driver/Transceiver | 74HC241D,652 vs 933713470653 |
| HD74HC241RP-EL | Renesas Electronics Corporation | Check for Price | HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, FP-20DB | 74HC241D,652 vs HD74HC241RP-EL |
74HC241D,652 Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the 74HC241D,652 is 100 MHz.
-
Yes, the 74HC241D,652 is suitable for high-temperature applications, with an operating temperature range of -40°C to +125°C.
-
The power consumption of the 74HC241D,652 is typically 10 μA per input at 5 V and 25°C.
-
Yes, the 74HC241D,652 can be used in 3.3 V systems, with a minimum operating voltage of 2.0 V.
-
The propagation delay of the 74HC241D,652 is typically 10 ns at 5 V and 25°C.
