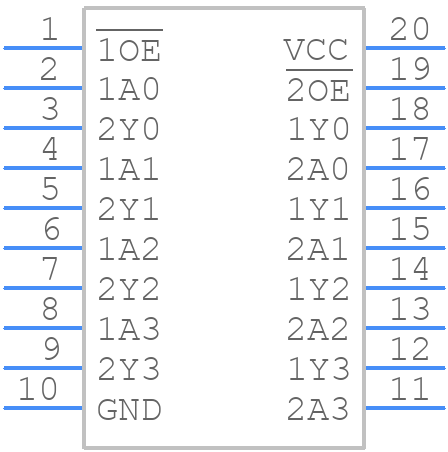

Part Symbol
-

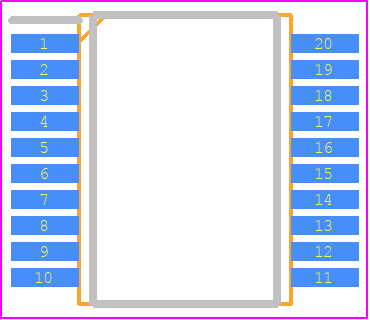

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC240DB,118 by Nexperia
Results Overview of 74HC240DB,118 by Nexperia
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
74HC240DB,118 Information
74HC240DB,118 by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74HC240DBR | Texas Instruments | Octal Buffers And Line Drivers With 3-State Outputs 20-SSOP -40 to 85 |
Price & Stock for 74HC240DB,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-74HC240DB,118-954-ND
|
DigiKey | IC BUFFER INVERTING 6V 20-SSOP Min Qty: 882 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT |
3360 In Stock |
|
$0.3400 | Buy Now |
|
DISTI #
85958151
|
Verical | Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SSOP T/R RoHS: Compliant Min Qty: 1105 Package Multiple: 1 Date Code: 1901 | Americas - 26000 |
|
$0.2536 / $0.3396 | Buy Now |
|
DISTI #
85957251
|
Verical | Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SSOP T/R RoHS: Compliant Min Qty: 1105 Package Multiple: 1 Date Code: 1801 | Americas - 2548 |
|
$0.2536 / $0.3396 | Buy Now |
|
|
Rochester Electronics | Bus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, SSOP20 RoHS: Compliant Status: Obsolete Min Qty: 1 | 28548 |
|
$0.2029 / $0.3273 | Buy Now |
Part Details for 74HC240DB,118
74HC240DB,118 CAD Models
74HC240DB,118 Part Data Attributes
|
|
74HC240DB,118
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74HC240DB,118
Nexperia
74HC240; 74HCT240 - Octal buffer/line driver; 3-state; inverting@en-us SSOP2 20-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SSOP2 | |
| Package Description | 5.30 MM, PLASTIC, MO-150, SOT339-1, SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | SOT339-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Date Of Intro | 1990-12-01 | |
| Samacsys Manufacturer | Nexperia | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 7.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 150 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for 74HC240DB,118
This table gives cross-reference parts and alternative options found for 74HC240DB,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC240DB,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC240DB | Nexperia | Check for Price | Bus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20 | 74HC240DB,118 vs 74HC240DB |
| 935188630112 | Nexperia | Check for Price | Bus Driver, HC/UH Series, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO20 | 74HC240DB,118 vs 935188630112 |
| 74HC240DB,118 | NXP Semiconductors | Check for Price | 74HC(T)240 - Octal buffer/line driver; 3-state; inverting SSOP2 20-Pin | 74HC240DB,118 vs 74HC240DB,118 |
74HC240DB,118 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74HC240DB,118 is 2V to 7V, with a typical voltage of 5V.
-
The output enable (OE) pin is active-low, meaning that the outputs are enabled when OE is low ( Logic 0) and disabled when OE is high (Logic 1). You should connect OE to a logic low signal or a pull-down resistor to enable the outputs.
-
The maximum frequency of operation for the 74HC240DB,118 is 50 MHz, but this can vary depending on the operating voltage, temperature, and load capacitance.
-
Ensure that the power supply voltage (VCC) is within the recommended range, and that the power supply is decoupled with a 0.1uF ceramic capacitor to reduce noise and voltage droop.
-
Yes, the 74HC240DB,118 can operate at 3.3V, but the output voltage levels may not be as high as those at 5V. Ensure that the receiving device can tolerate the reduced output voltage levels.
