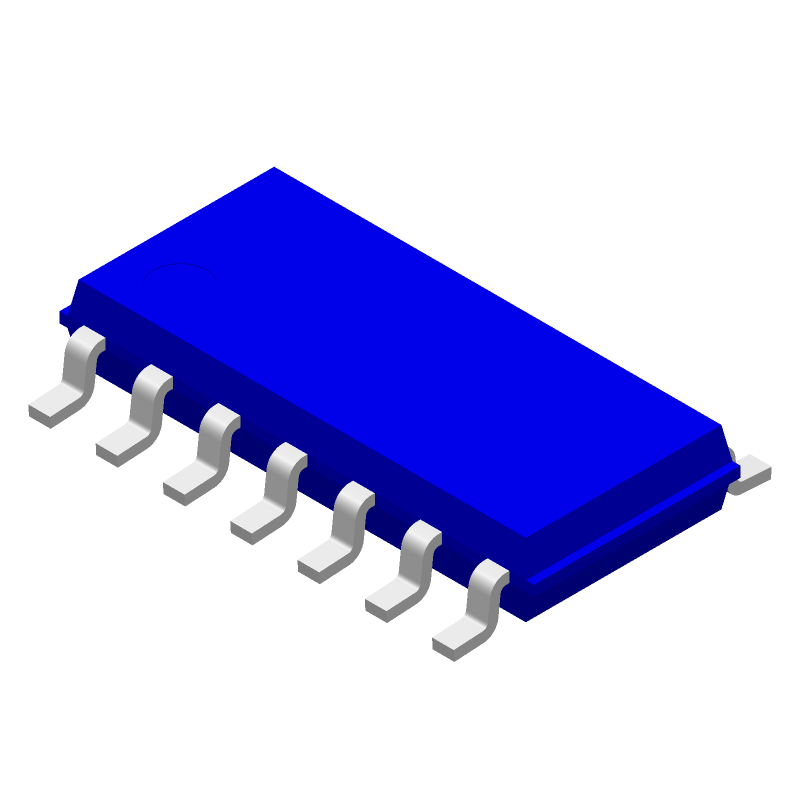

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC14D by Toshiba America Electronic Components
Results Overview of 74HC14D by Toshiba America Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
74HC14D Information
74HC14D by Toshiba America Electronic Components is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74HC14D | Toshiba Electronic Devices & Storage Corporation | CMOS Logic IC, Inverter, SOIC14 | |
| SN74HC14DRG3 | Texas Instruments | Hex Schmitt-Trigger Inverters 14-SOIC -40 to 85 | |
| SN74HC14DRG4 | Texas Instruments | Hex Schmitt-Trigger Inverters 14-SOIC -40 to 85 |
Price & Stock for 74HC14D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74HC14DCT-ND
|
DigiKey | IC INVERT SCHMITT 6CH 1IN 14SOIC Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
16674 In Stock |
|
$0.1281 / $0.3500 | Buy Now |
|
DISTI #
74HC14D
|
Avnet Americas | - Tape and Reel (Alt: 74HC14D) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.1110 / $0.1190 | Buy Now |
|
DISTI #
757-74HC14D
|
Mouser Electronics | Inverters 74HC CMOS logic IC series SOIC14 Hex Schmitt Inverter RoHS: Compliant | 14267 |
|
$0.1290 / $0.3300 | Buy Now |
|
DISTI #
V72:2272_16024372
|
Arrow Electronics | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2237 Container: Cut Strips | Americas - 250 |
|
$0.1281 / $0.2051 | Buy Now |
|
DISTI #
63378599
|
Verical | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC T/R RoHS: Compliant Min Qty: 46 Package Multiple: 1 Date Code: 2237 | Americas - 250 |
|
$0.1281 / $0.1612 | Buy Now |
Part Details for 74HC14D
74HC14D CAD Models
74HC14D Part Data Attributes
|
|
74HC14D
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
74HC14D
Toshiba America Electronic Components
INVERT GATE
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOIC-14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Date Of Intro | 2016-05-24 | |
| Samacsys Manufacturer | Toshiba | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 8.65 mm | |
| Logic IC Type | INVERTER | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Propagation Delay (tpd) | 190 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
74HC14D Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74HC14D is 2V to 6V, with a typical voltage of 5V.
-
To ensure the 74HC14D is properly powered, connect the VCC pin to a stable power supply, and the GND pin to a reliable ground connection. Decouple the power supply with a 0.1uF capacitor to reduce noise.
-
The maximum frequency of operation for the 74HC14D is 25MHz at 5V and 10MHz at 3.3V.
-
During power-up and power-down, ensure that all input pins are held at a valid logic level to prevent unwanted oscillations. Use pull-up or pull-down resistors if necessary.
-
The maximum current that can be sourced or sunk by the 74HC14D is 25mA per output pin, with a total current limit of 100mA for all outputs combined.
